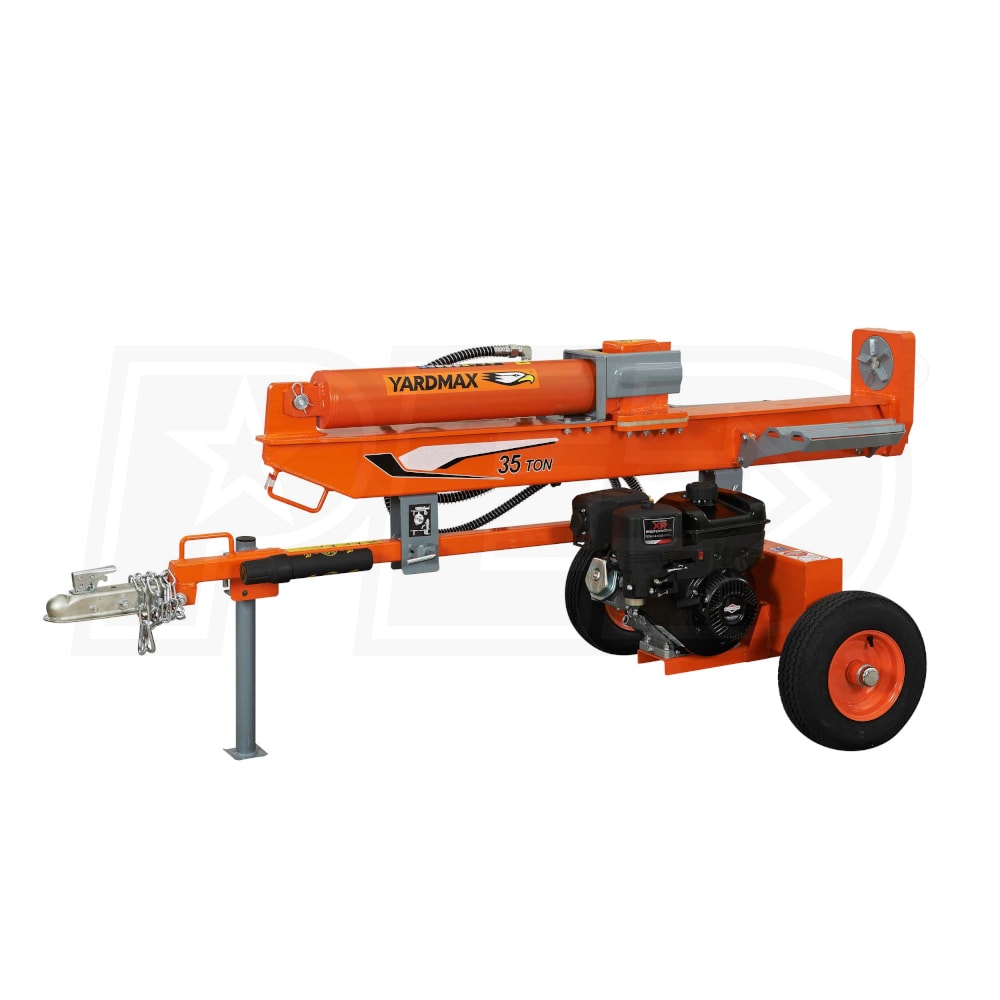

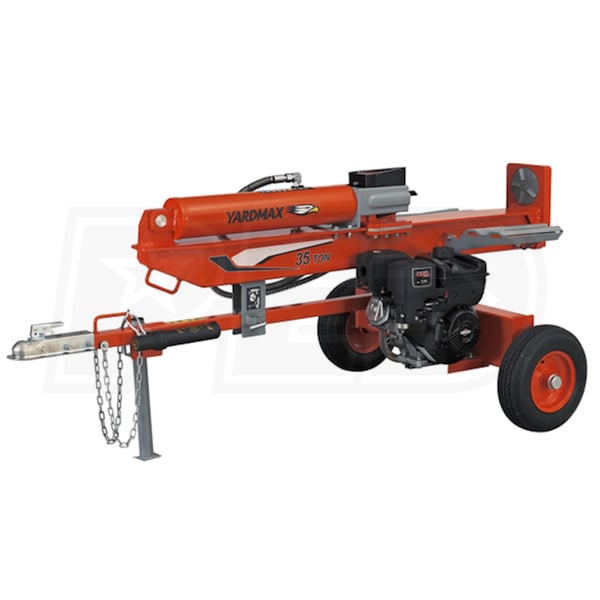

YARDMAX 35-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 306cc Engine

Model:

YU3566

Write A Review
Product Discontinued
Sorry, this product is no longer available.
YARDMAX 35-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 306cc Engine
YARDMAX 35-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 306cc Engine
Model: YU3566
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • 35-Ton Splitting Force
  • Built to perform in demanding applications
  • Vertical & Horizontal Splitting - For Logs Up To 26.5" in Length
  • Dual end cylinder support for equal weight distribution
  • Cylinder handle makes it easy to position the splitter
  • 306cc Briggs & Stratton 4-Cycle Gas Engine
  • Reliable and easy-to-start with plenty of torque
  • U-Beam Structural Design
  • Patent pending design is significantly stronger than typical I-Beam designs
  • Provides more durability and less stress over time
  • 17-GPM 2-Stage Hydraulic Pump
  • Over-sized design, provides a cycle time of just 12.8 seconds
  • 6.0-Gallon Hydrualic Reservoir
  • Built-into wheel shaft with internal filter for added protection
  • 7.5" 2-Way Splitting Wedge
  • Designed for quick connection and jam free operation with no need to change stripper plates
  • Unique Spinner-Plate
  • Puts less stress on the beam by allowing logs to turn when being split
  • Adjustable Log Cradle
  • Keeps the logs when you want them, regardless of splitter position
  • 16" DOT-Approved Road Tires
  • Also includes 2" Ball Hitch for easy towing
  • YARDMAX 3-2-1 Residential Warranty
  • Know you're protected so you can concentrate on splitting
  • 4-Way Wedge IS NO LONGER Included With YARDMAX® Gas Log Splitters
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

YU3566
specs product image PID-68198
General Information
Product Category
Log Splitter
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
CC
306 CCs
Low Oil Shutdown
Yes
Consumer Engine Warranty
2 Years
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
6 Gallons
Cylinder Diameter
5 Inches
Cycle Time
12.8 Seconds
Tonnage
35 Tons
Overview
Product Category
Log Splitter
Assembly Required
Yes
Weight
636 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
100 Inches
Product Width
48 Inches
Product Height
37 Inches
Power Type
Gas
UPC
857649006258
Wedge
Wedge Material
Steel
Wedge Size
7 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
26.5 Inches
Towing
Towable
Yes
Fenders
No
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
