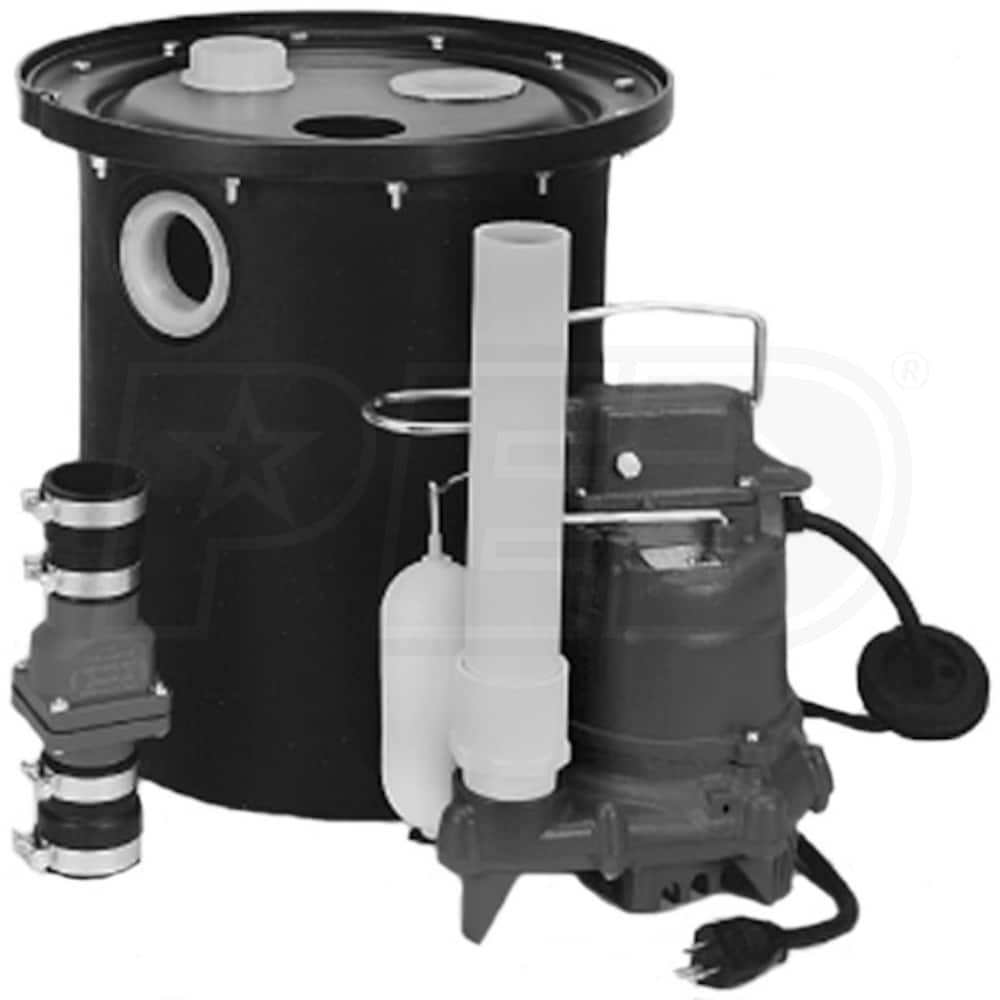

Zoeller 105-0010 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch (2" Inlet)

Model:

105-0010

Write A Review
$628.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Zoeller 105-0010 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch (2
Zoeller 105-0010 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch (2" Inlet)
Model: 105-0010
$628.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

GPH

2680 Gallons

Switch Type

Vertical

  • Automatic Remote Drain Pump & Laundry Tray System
  • Pre-packaged for easy installation
  • *** 2" NPT Inlet - No Screen ***
  • For laundry tray pump, wet bar sink, lavatory, AC condensate / dehumidifier
  • Can also be used with dishwashers and garbage disposal applications
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base w/ Built-In Strainer
  • Corrosion resistant design, easily passes laundry lint
  • 1/3 HP Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Non-Clogging Vortex Impeller
  • Capable of passing 1/2" diameter solids
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 14.5" (W) x 12.5" (H) Polyethylene Basin
  • High capacity, corrosion resistant w/ Gas Tight Cover
  • Threaded Connection For Easy Installation
  • 2" NPT Vent & 1-1/2" NPT Discharge
  • 1-1/2" Slip-On Check Valve
  • Engineered for longer life & quiet operation
  • 9-Foot Power Cord For Easy Connection
  • *Note - Utilizes a different basin than Zoeller's standard system - 2" Side Vent Only
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

105-0010
specs product image PID-61777
General Information
Product Category
Sump Pump
Motor
Voltage
120 Volt
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
3 Years
Product Width
15.75 Inches
Product Height
15.5 Inches
UPC
053514151782
