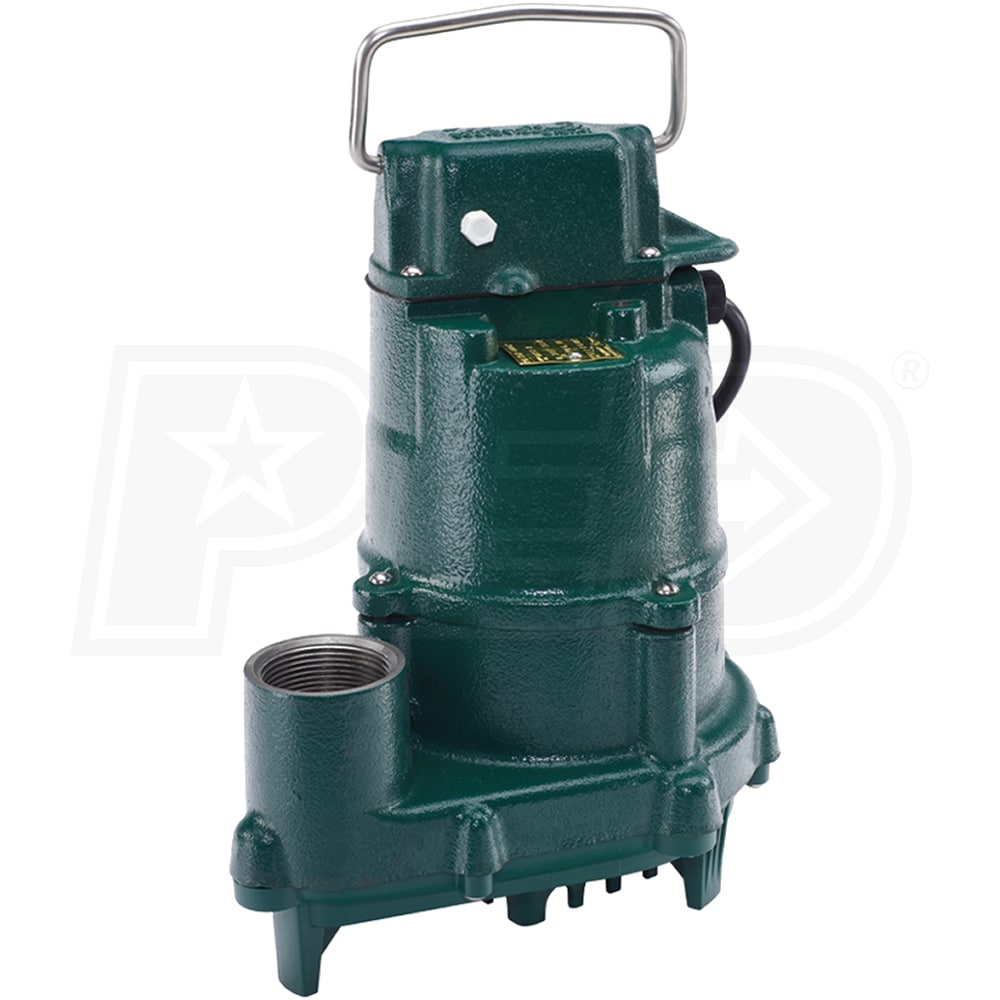

Zoeller N151 - 1/3 HP High Head Dose-Mate Cast Iron Effluent Pump (Non-Automatic) w/50' Cord
Model:
151-0010
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
2940 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Zoeller Dose-Mate High-Head 150 Series Submersible Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- 30-Feet Shut-off Head
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected, 1/3 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Cast Iron Construction w/ Powder Coated Epoxy Finish
- Assures maximum protection for extended pump life
- 1-1/2" Discharge
- Makes replacing an exisiting pump an easy task
- Engineered Thermoplastic Base & Vortex Impeller
- Non-clogging, can pass up to 1/2" spherical solids
- No screen to interfere with flowing debris
- Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 50' UL Listed Power Cord w/ 3-Prong Ground Plug
- Includes 1-1/2" x 2" PVC Adapter Fitting
- *Note* Max Operating 130F
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
151-0010
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
50 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch

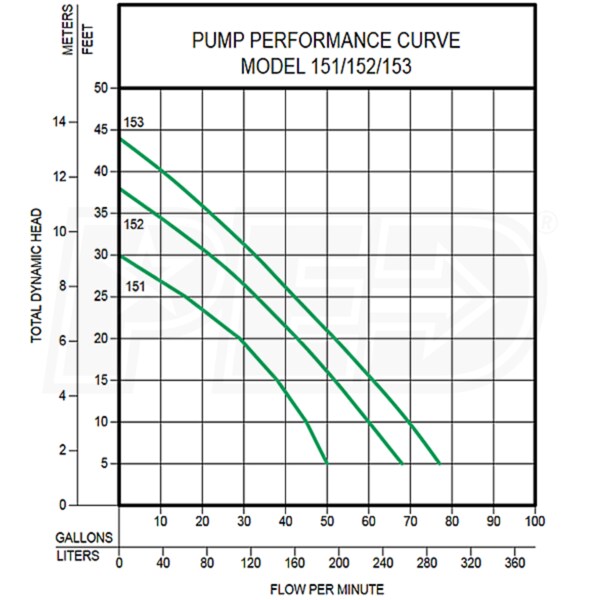

GPH @ 0 feet
2940
GPH @ 5 feet
2940
GPH @ 10 feet
2700
GPH @ 15 feet
2220
GPH @ 20 feet
1740
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
30 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514200022
