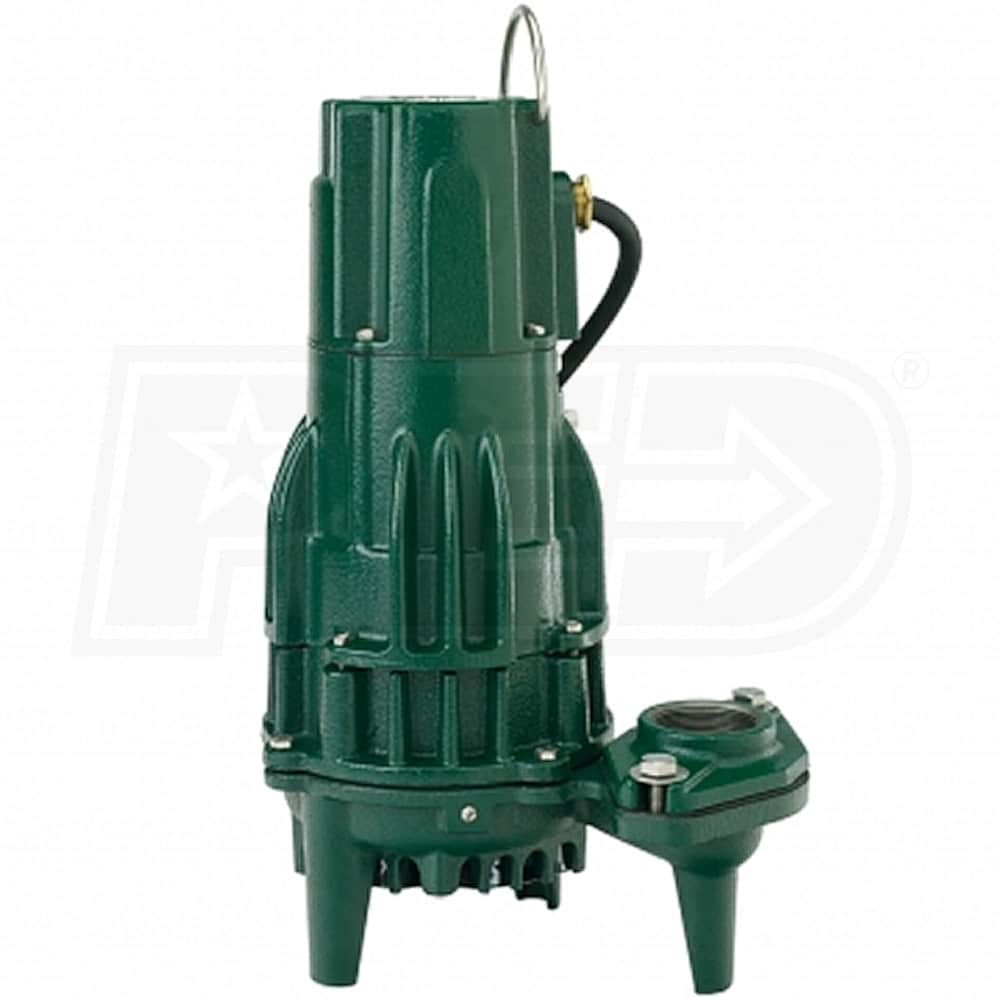

Zoeller N163-0002 - 1/2 HP High Head Flow-Mate Sump/Effluent Pump (Non-Automatic)
Model:
163-0002
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
3600 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Zoeller High Head Flow-Mate Submersible Sump / Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- Cast Iron Switch Case, Base, Motor & Pump Housing Construction
- Powder coated epoxy finish assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 1/2 HP Oil-Filled Permanent Split Capacitor Motor
- Thermally protected, hermetically sealed to prevent overheating
- High Head Design (66' Shut-Off Head)
- Can pump up to 2700 GPH @ 40' head
- Non-Clogging Bronze Vortex Impeller
- Capable of passing 3/4" spherical solids
- Carbon/Ceramic Shaft Seals & Upper / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 20' UL Listed Power Cord w/ 3-Prong Grounded Plug
- Makes replacing your existing pump an easy task
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
163-0002
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Solids Handling Size
.75 inch
Total Head Lift
66 Feet
Float Type
No Switch
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3600
GPH @ 15 feet
3600
GPH @ 20 feet
3600
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
15.75
Float Off
5.25
Manual Override
No
Max Head
66 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
80 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.75 Inches
Product Width
10.34 Inches
Product Height
19.31 Inches
UPC
053514015077
