Zoeller D264-0024 - 4/10 HP Cast Iron Sewage Pump w/ Vertical Float (25' Cord) (230V)

Model:

264-0024

Write A Review
$630.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Zoeller D264-0024 - 4/10 HP Cast Iron Sewage Pump w/ Vertical Float (25' Cord) (230V)
Zoeller D264-0024 - 4/10 HP Cast Iron Sewage Pump w/ Vertical Float (25' Cord) (230V)
Model: 264-0024
$630.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

5400 Gallons

Switch Type

Vertical

  • 230V Automatic Submersible Sewage/Ejector Pump
  • Ideal for average sewage removal
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Offers years of reliable, trouble-free operation
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 4/10 HP Thermally Protected Motor (230V)
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable Of Passing 2" Spherical Solids
  • Designed for sewage or semi-solid water removal
  • 25' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • Not Rec'd For Installations w/ Over 15 ft. Total Dynamic Head
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

264-0024
specs product image PID-80193
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float

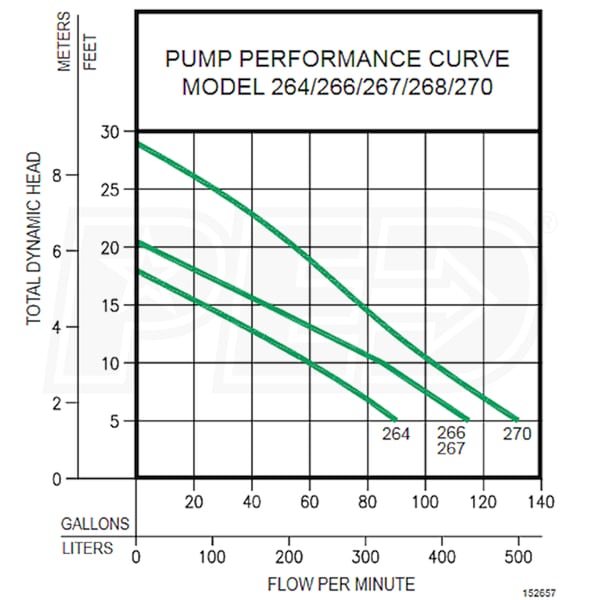

GPH @ 0 feet
5400
GPH @ 5 feet
5400
GPH @ 10 feet
3600
GPH @ 15 feet
1380
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
12.5
Float Off
4.5
Manual Override
No
Submersible
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
34.5 Pounds
Consumer Warranty
3 Years
Product Length
11.36 Inches
Product Width
11.22 Inches
Product Height
14.75 Inches
UPC
053514104405
