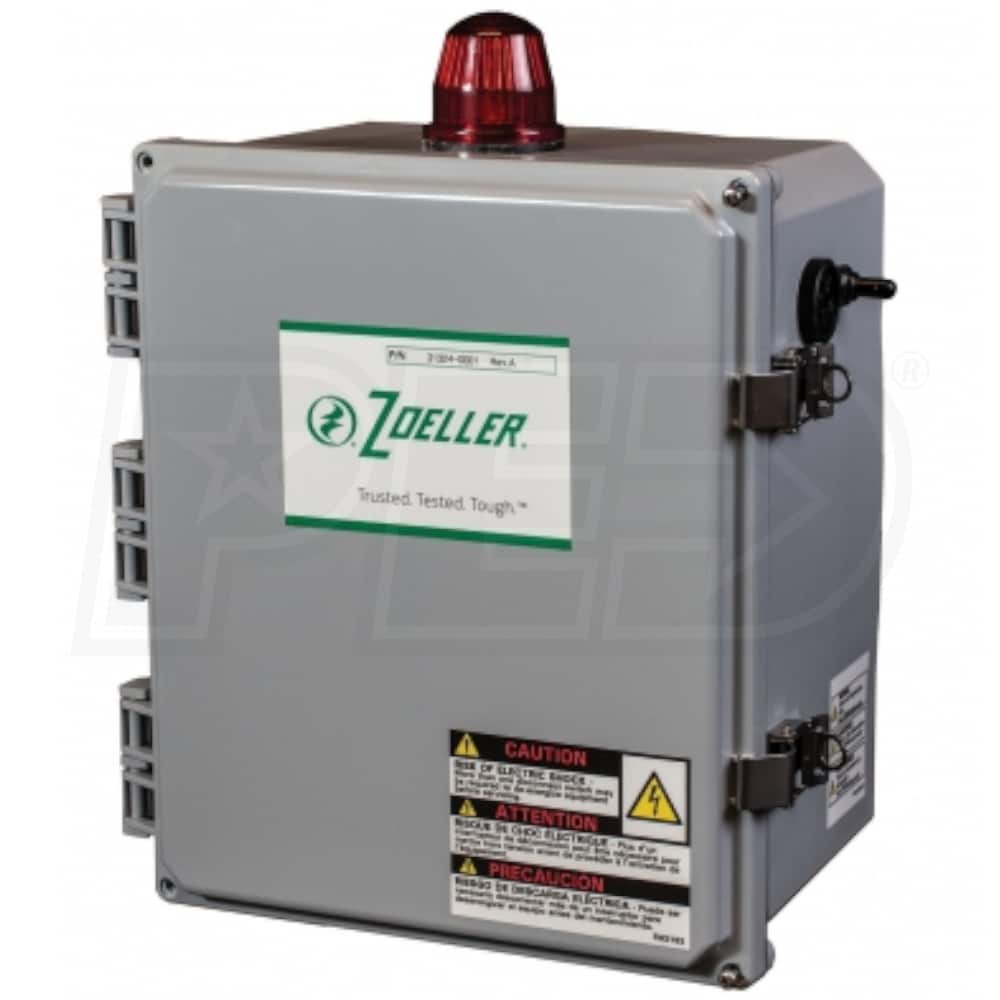

Zoeller 32324-0001 - Pivot Duplex Alternator Control Panel w/ Alarm 115/200/230V 1PH (7-15A) Indoor/Outdoor NEMA 4X Enclosure

Model:

32324-0001

Write A Review
$1,269.00
In-Stock
Ships Wednesday, Nov 27th
Shipping to60601

Zoeller 32324-0001 - Pivot Duplex Alternator Control Panel w/ Alarm 115/200/230V 1PH (7-15A) Indoor/Outdoor NEMA 4X Enclosure
Zoeller 32324-0001 - Pivot Duplex Alternator Control Panel w/ Alarm 115/200/230V 1PH (7-15A) Indoor/Outdoor NEMA 4X Enclosure
Model: 32324-0001
$1,269.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    PLEASE NOTE - REPLACES Zoeller 10-1044

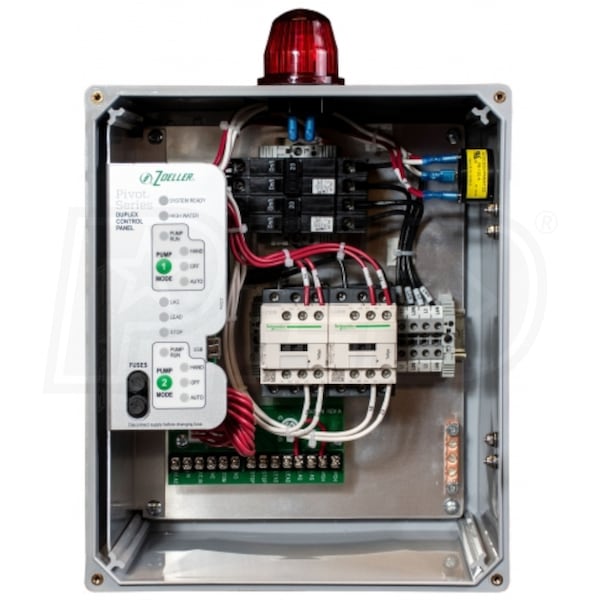

  • Zoeller Pivot Alternator Duplex Control Panel (32324-0001)
  • For duplex pump applications in residential and commercial applications
  • Single Phase, 115 / 200 / 230V (7-15A Max)
  • **Requires 3 or 4 Variable Level Float Switches (Not Included)**
  • Alternating Mechanism
  • Runs the 1st pump, then runs the 2nd pump
  • Both pumps will run during a high-water event
  • NEMA 4X Watertight Enclosure (12" x 10" x 6")
  • Allows for indoor and outdoor installations; -40°F - 140°F
  • Lockable latch for added security
  • RED / AMBER / GREEN LEDs
  • For switch indicators, Pump Run, High Water, System Ready & HOA
  • 360° Red Alarm Beacon
  • Provides a visual alert when a high water situation occurs
  • High Water Alarm
  • 95 dBA Audible alarm so you can also hear when an event occurs
  • User-Friendly Controls
  • Hand/Off/Auto Toggle switch
  • Alarm Test/Silence switch
  • Adjustable Settings
  • "Smart" or "Standard" float logic
  • See spec sheet & install instructions for more details
  • Auxiliary Dry Contact & USB Port
  • Allows for connection for remote alarm devices/dialers etc.
  • 120V Control Circuit & Alarm
  • Circuit breaker protection
  • Max Alarm & Control Circuit Power Consumption: 40W
  • Includes (4) Enclosure Mounting Brackets
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

32324-0001
specs product image PID-148528
General Information
Product Category
Water Pump Accessories
Motor
Voltage
120/240 Volt
Running Amps
7-15
Overview
Product Category
Water Pump Accessories
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Dimensions
12"x10"x6"
UPC
53514445898
