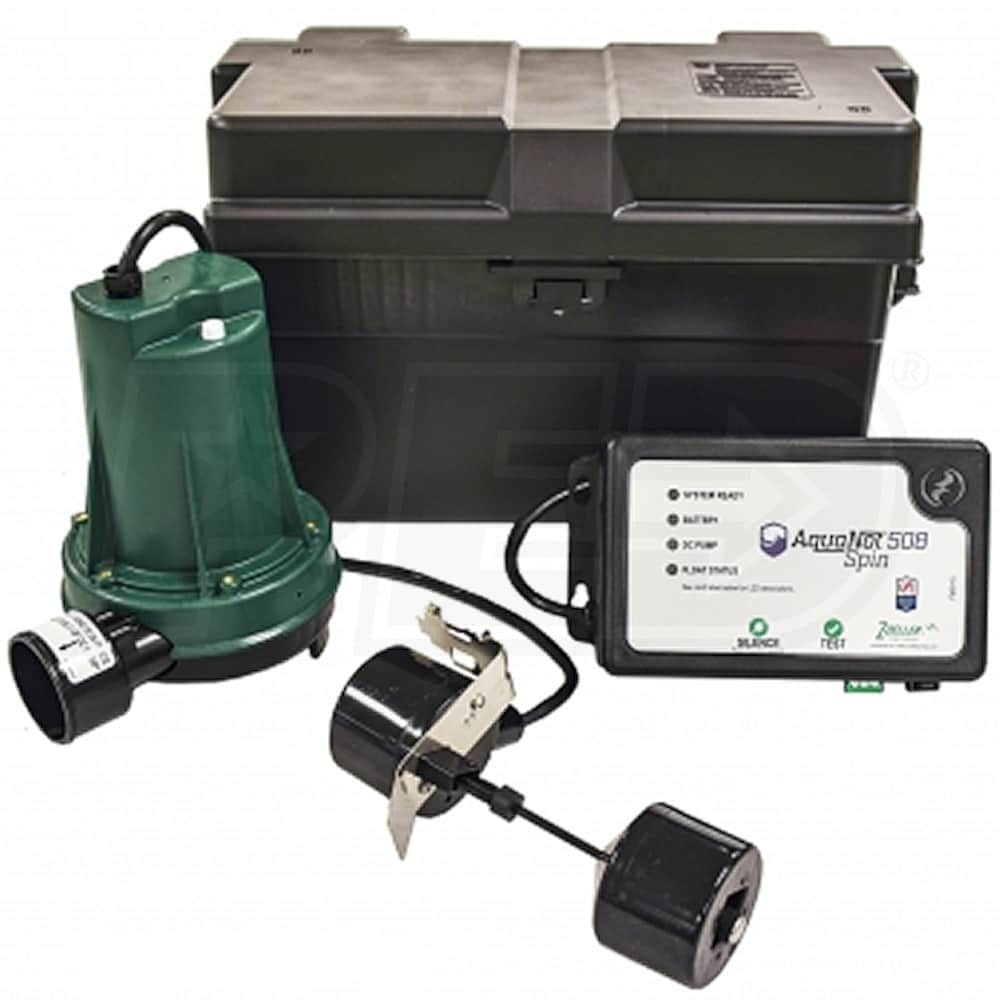

Zoeller 508 - Aquanot® Spin Battery Backup Sump Pump System (1800 GPH @ 10')

Model:

508-0005

Write A Review
$504.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Nov 13th
Shipping to60601

Zoeller 508 - Aquanot® Spin Battery Backup Sump Pump System (1800 GPH @ 10')
Zoeller 508 - Aquanot® Spin Battery Backup Sump Pump System (1800 GPH @ 10')
Model: 508-0005
$504.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Back-up

GPH

2340 Gallons

Switch Type

Vertical



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Zoeller 12V Aquanot® Spin Battery Backup Sump Pump System
  • Automatically starts when your existing sump pump fails
  • 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
  • Non-corrosive design w/ Integrated Check Valve & Pump Legs
  • Pumps 2340 gallons-per-hour @ 5' lift (or 1800 GPH @ 10')
  • Built-In Alarms w/ Aux. Contact (Dialers & Home Security Systems)
  • High Water, Low Battery & Reverse Polarity
  • 10-Amp Battery Charger & Control Box w/ LED Screen
  • Self-contained design w/ Battery burnout & overcharge protection
  • Displays battery voltage & important system information
  • LED Light Indicators & Buttons
  • For system status; AC Power, Charged, Charging & Low Battery
  • Plus High Water, Alarm Off button
  • Vertical Float Switch
  • Compact, low-voltage design for reliable operation
  • Corrosion-Resistant Box Fits Group 27, 29 or 31 Batteries
  • Furnished With All Required Fittings
  • Heavy duty check valve adaptable to 1 1/4" or 1 1/2" pipe
  • BATTERY & PRIMARY PUMP SOLD SEPARATELY
  • 3-Year Warranty
  • For Indoor Use Only
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

508-0005
specs product image PID-14010
General Information
Product Category
Sump Pump
Motor
Voltage
12 Volt DC
Battery Included
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Manual Override
No
Overview
Product Category
Sump Pump
Weight
20 Pounds
Consumer Warranty
3 Years
UPC
053514349066
Accessories
Alarm
Yes
Wi-Fi enabled
No

Reviews

(43)
Zoeller 508-0005 Reviews & Ratings

Product Q&A

(6)
Expert avatar photo
Product Questions Answered by Jim, the Sump Pump Expert
With the integrated check valve that comes on the 508, are any vent holes or other check valves required in my PVC pipe?
Erick
from Ohio
February 27, 2018
can this system be used with AGM batteries?
Don G
from Illinois
April 21, 2016
will the Zoeller 508 run on AC power if necessary?
Scott B
from Illinois
January 19, 2016
I have no experience with battery back-up systems but I'm considering this system for purchase. It does not include a battery. What type and size battery is optimally recommended for this system?
Kevin
from New York
April 08, 2015
Does the Zoeller Aquanot 508 have to be installed as shown in the picture (integrated with the primary) or can it be installed with separate piping and check valve next to and above the primary? Thanks in advance!
Chris
from Indiana
February 07, 2015
Hello! What is the minimum amount of clearance needed to install the Zoeller 508 - Aquanot system? I have an older house with a relatively small sump basin. Thanks!
Dave
from Michigan
November 27, 2014
