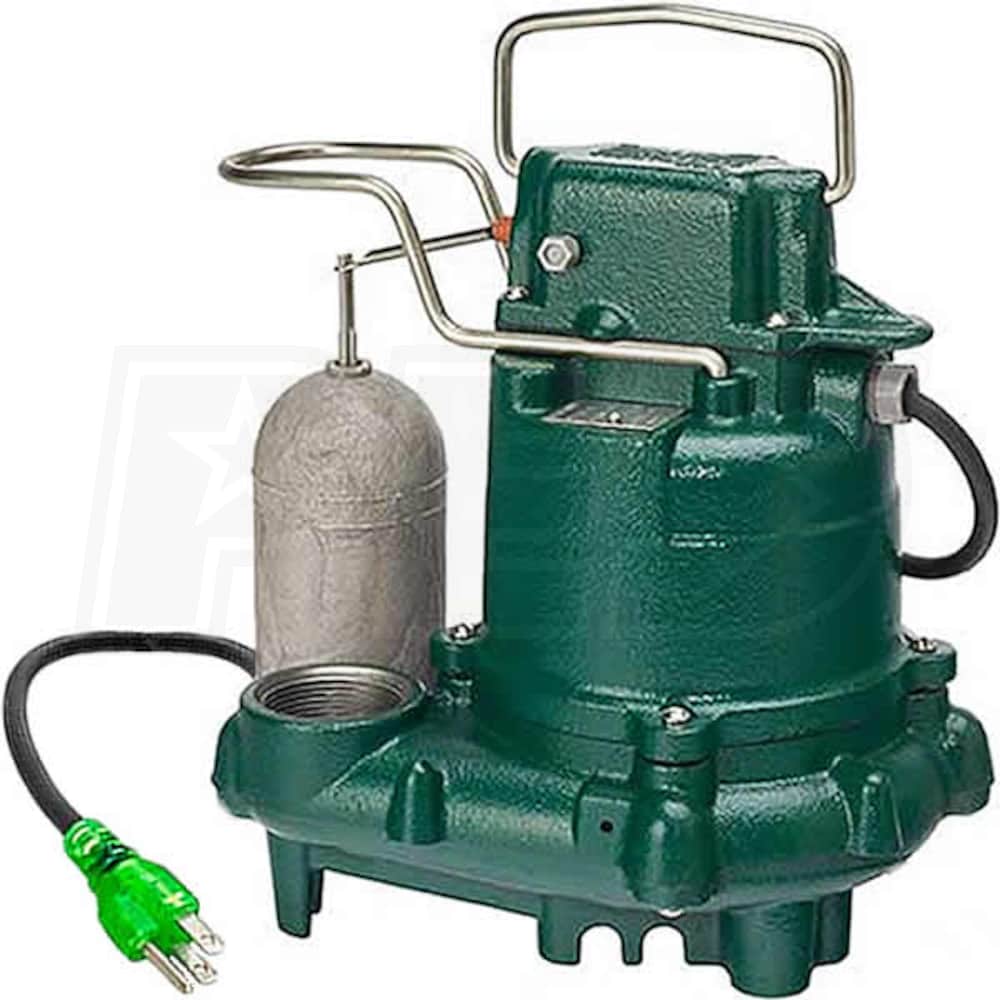

Zoeller M63 - 3/10 HP Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Model:

63-0001

Write A Review
$311.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Dec 4th
Shipping to60601

Zoeller M63 - 3/10 HP Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Zoeller M63 - 3/10 HP Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 63-0001
$311.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

2580 Gallons

Switch Type

Vertical

  • Zoeller M63 Premium Series Automatic Submersible Sump Pump
  • For residential / light commercial dewatering, groundwater transfer & effluent
  • NEW For 2016 *5-Year Limited Warranty*
  • Attention to detail in this series for total reliability & trouble free performance
  • ALL CAST IRON (Motor / Pump Housing, Switch Case & Base)
  • Powder-coated epoxy finish for superior corrosion-resistance
  • Maximizes heat dissipation for cooler operation during extended periods
  • Polypropylene Float Operated Vertical Float Switch w/ Viton® Switch Boot
  • Zoeller's newest & longest lasting 2-pole mechanical switch
  • 3/10 HP Shaded Pole 115V Motor (1550 RPM)
  • Energy efficient, only draws 9.7-Amps
  • Thermally Protected Motor w/ Automatic Reset
  • Oil-filled, hermetically-sealed design reduces chance of motor damage
  • Non-Clogging Cast Iron Vortex Impeller
  • Screenless, bottom intake designed to pass solids up to 1/2"
  • U/L Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
  • Provides increased durability & less heat for extended protection
  • 1-1/2" NPT Discharge
  • Compatible with most residential & light commercial applications
  • 10-Foot Power Cord (UL Listed) w/ LED Lighted Plug End
  • Easily see when there is power available to the the pump
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

63-0001
specs product image PID-67274
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float

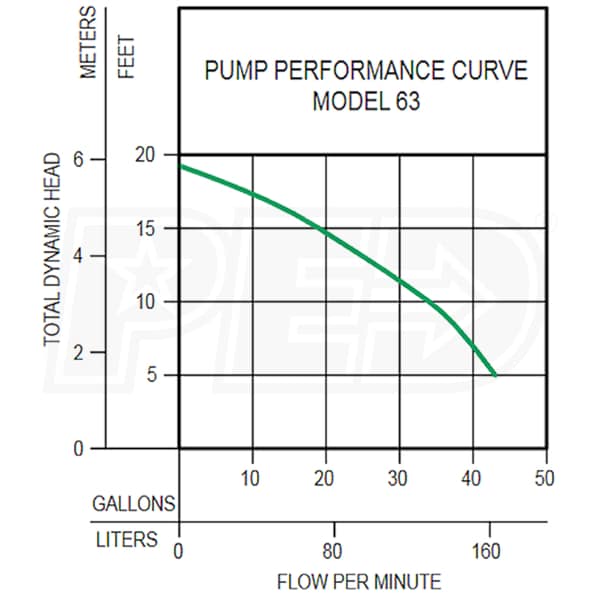

GPH @ 0 feet
2580
GPH @ 5 feet
2580
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7.25
Float Off
3
Manual Override
No
Max Head
19.25 Feet
Submersible
Yes
Engine
Horsepower
.30 HP
Overview
Product Category
Sump Pump
Weight
23 Pounds
Consumer Warranty
5 Years
Dimensions
10.09375"L x 7.875W x 10.0625"H
UPC
053514377281
Additional Model Numbers

M63, 63-0001
