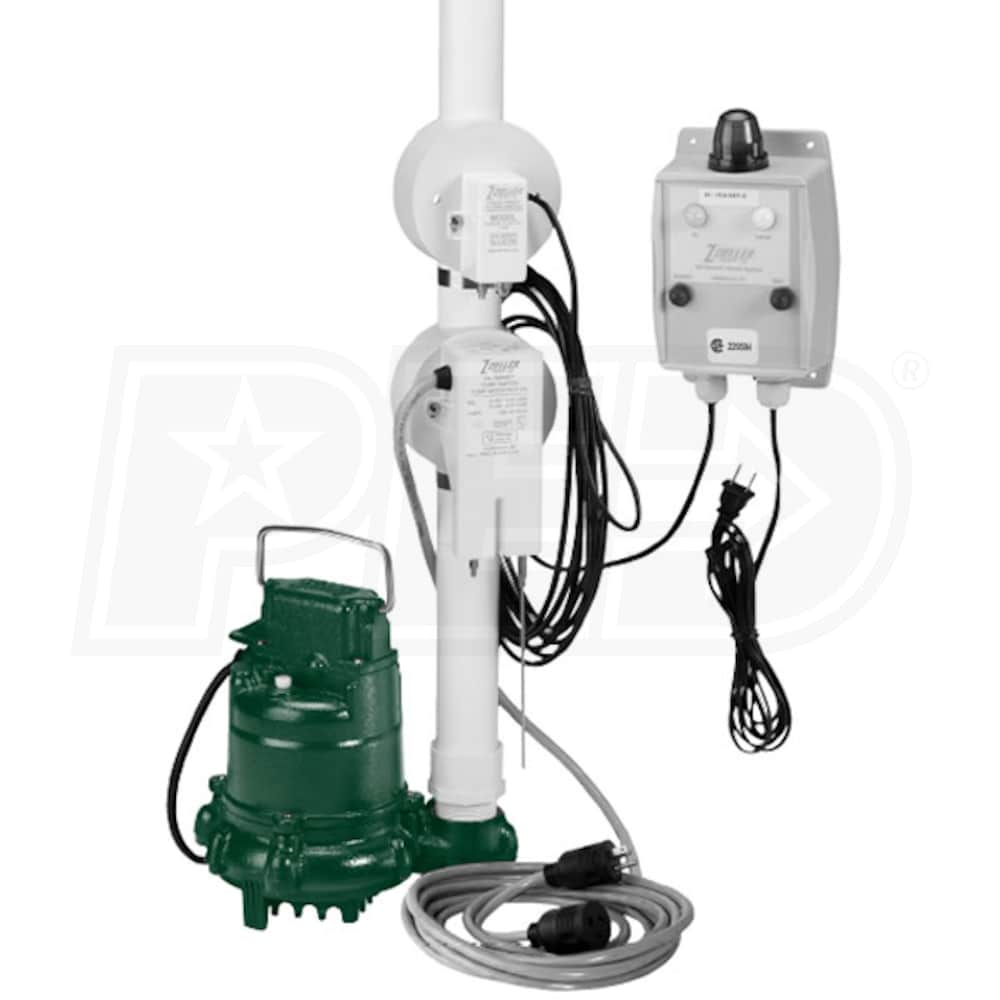

Zoeller N153 - 1/2 HP Effluent Pump w/ Oil Smart® Switch & Alarm System (20' Cord) Elevator Sump Pump System
Model:
940-0007
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
4620 Gallons
Switch Type
Electronic
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Zoeller N153 w/ Oil Smart® Switch and Alarm System
- Helps protect equipment & environment from dispersion of oil
- Applications such as vaults, manufacturing and elevators
- Oil Smart® Switch & Alarm Panel w/ NEMA-4X
- 20A Internal relay; Audible, light alarms and dry contacts
- Alarm test and silence switches & 20' piggyback power cord
- UL508 Approved Switch w/ 304 Stainless Steel Probes
- Preset On/Off points differentiate oil and water
- Alerts high water and oil detected conditions
- Zoeller N153 1/2 HP Dose-Mate Submersible Effluent Pump
- Cast iron construction w/ powder coated epoxy finish
- No rust or corrosion with all stainless steel fittings
- Thermally Protected, 1/2 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- 1-1/2" Discharge & Engineered Thermoplastic Vortex Impeller
- Non-clogging, can pass up to 3/4" spherical solids
- Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- Tested to UL Standard UL778 and Certified to CSA Standard CSA 22.2 No. 108
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
940-0007
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Electronic

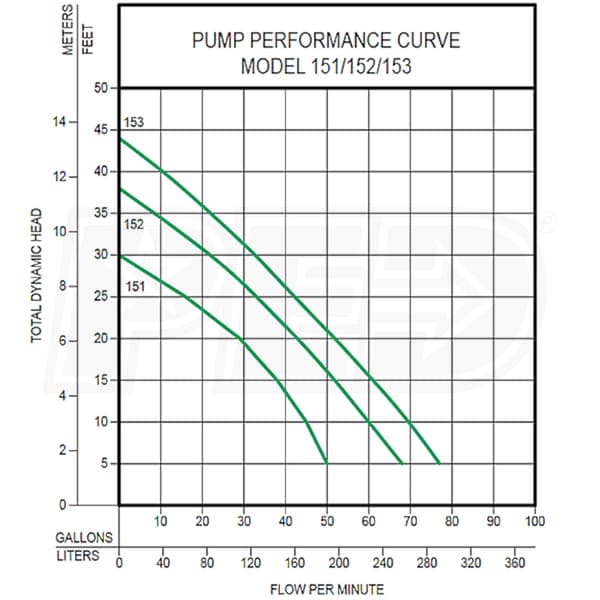

GPH @ 0 feet
4620
GPH @ 5 feet
4620
GPH @ 10 feet
4200
GPH @ 15 feet
3660
GPH @ 20 feet
3120
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
49 Pounds
Consumer Warranty
3 Years
Product Style
Elevator
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514154776
