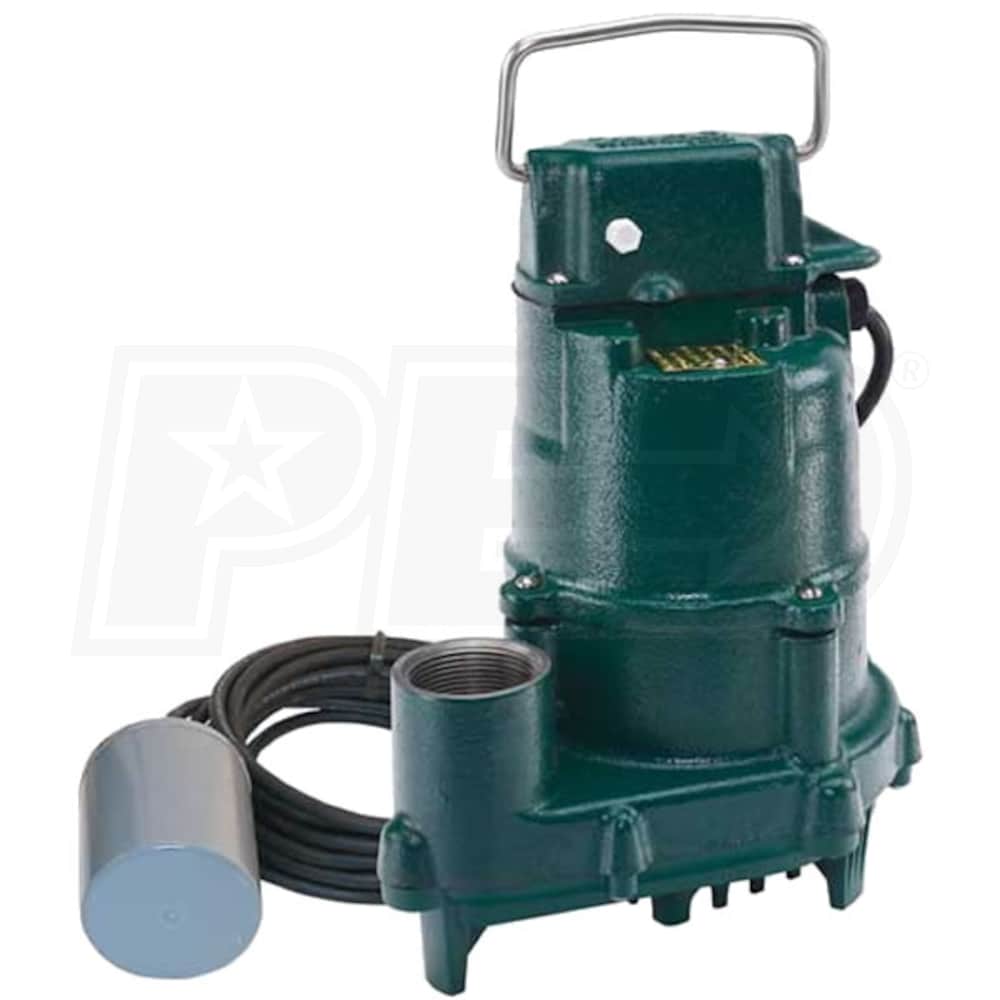

Zoeller BN151-0005 - 1/3 HP High Head Dose-Mate Cast Iron Effluent Pump w/ 20' Variable Level Float Switch

Model:

BN151

Write A Review
$354.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

Zoeller BN151-0005 - 1/3 HP High Head Dose-Mate Cast Iron Effluent Pump w/ 20' Variable Level Float Switch
Zoeller BN151-0005 - 1/3 HP High Head Dose-Mate Cast Iron Effluent Pump w/ 20' Variable Level Float Switch
Model: BN151
$354.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

2940 Gallons

Switch Type

Piggy-Back Tether

  • Zoeller Dose-Mate High-Head 150 Series Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • 30-Feet Shut-off Head
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected, 1/3 HP Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Variable Level Tether Float Switch w/ 20' Cord
  • Enough cord for reliable operation in septic systems
  • Cast Iron Construction w/ Powder Coated Epoxy Finish
  • Assures maximum protection for extended pump life
  • 1-1/2" Discharge
  • Makes replacing an exisiting pump an easy task
  • Engineered Thermoplastic Base & Vortex Impeller
  • Non-clogging, can pass up to 1/2" spherical solids
  • No screen to interfere with flowing debris
  • Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
  • Provides smooth, quiet operation & lower operating temperatures
  • 20' UL Listed Power Cord w/ 3-Prong Ground Plug
  • Same length as float switch cord for reliable operation
  • Includes 1-1/2" x 2" PVC Adapter Fitting
  • *Note* Max Operating 130F
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

BN151
specs product image PID-71420
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

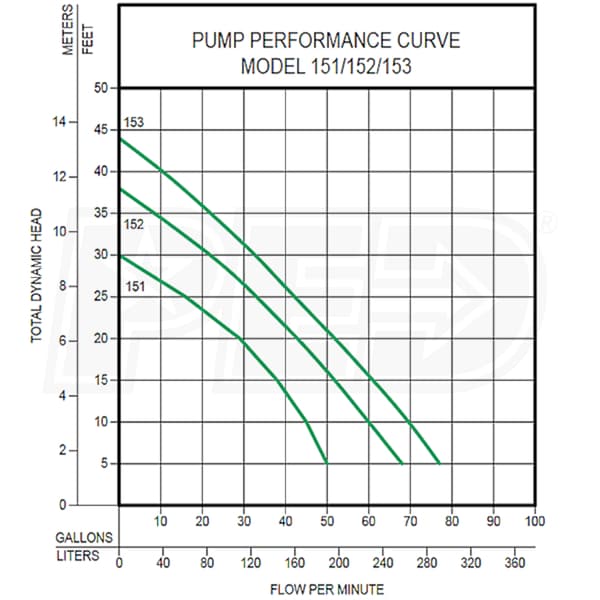

GPH @ 0 feet
2940
GPH @ 5 feet
2940
GPH @ 10 feet
2700
GPH @ 15 feet
2220
GPH @ 20 feet
1740
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514142070
Additional Model Numbers

151-0005, BN151
