Zoeller M57 - 1/3 HP All Cast Iron Submersible Sump Pump w/ Vertical Float Switch (9' Cord)

Model:

M57

Write A Review
$251.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601

Zoeller M57 - 1/3 HP All Cast Iron Submersible Sump Pump w/ Vertical Float Switch (9' Cord)
Zoeller M57 - 1/3 HP All Cast Iron Submersible Sump Pump w/ Vertical Float Switch (9' Cord)
Model: M57
$251.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

2680 Gallons

Switch Type

Vertical



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Model 57 All Cast Iron Switch Case, Motor, Pump Housing & Base
  • Heavy duty design for maximum heat dissipation and extended life
  • Automatic Submersible Sump Pump
  • Ideal for average water removal
  • 3/10 HP Shaded Pole Motor (1550 RPM)
  • Energy efficient, only draws less than 10 Amps
  • Thermally Protected Motor w/ Automatic Reset
  • Oil-filled and hermetically sealed to prevent overheating
  • Reliable Float Operated, 2-Pole Mechanical Float Switch
  • Stainless steel switch arm, guard & handle so rust is not an issue
  • 1-1/2" NPT Discharge & Non-Clogging Cast Iron Vortex Impeller
  • Screenless, bottom intake designed to pass solids up to 1/2"
  • U/L Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
  • Provides durability, less heat for extended protection
  • Neoprene "O" Ring
  • Keeps a watertight seal between motor and pump housing
  • 9' Power Cord
  • UL Listed 3-wire cord w/ 3-prong plug
  • Industry Leading Quality Control - Pressure Tested After Assembly
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

M57
specs product image PID-16452
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float

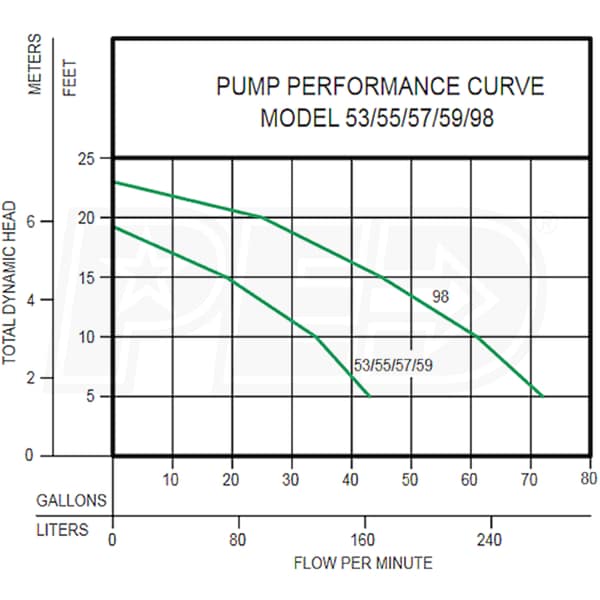

GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024055
Additional Model Numbers

57-0001, M57
