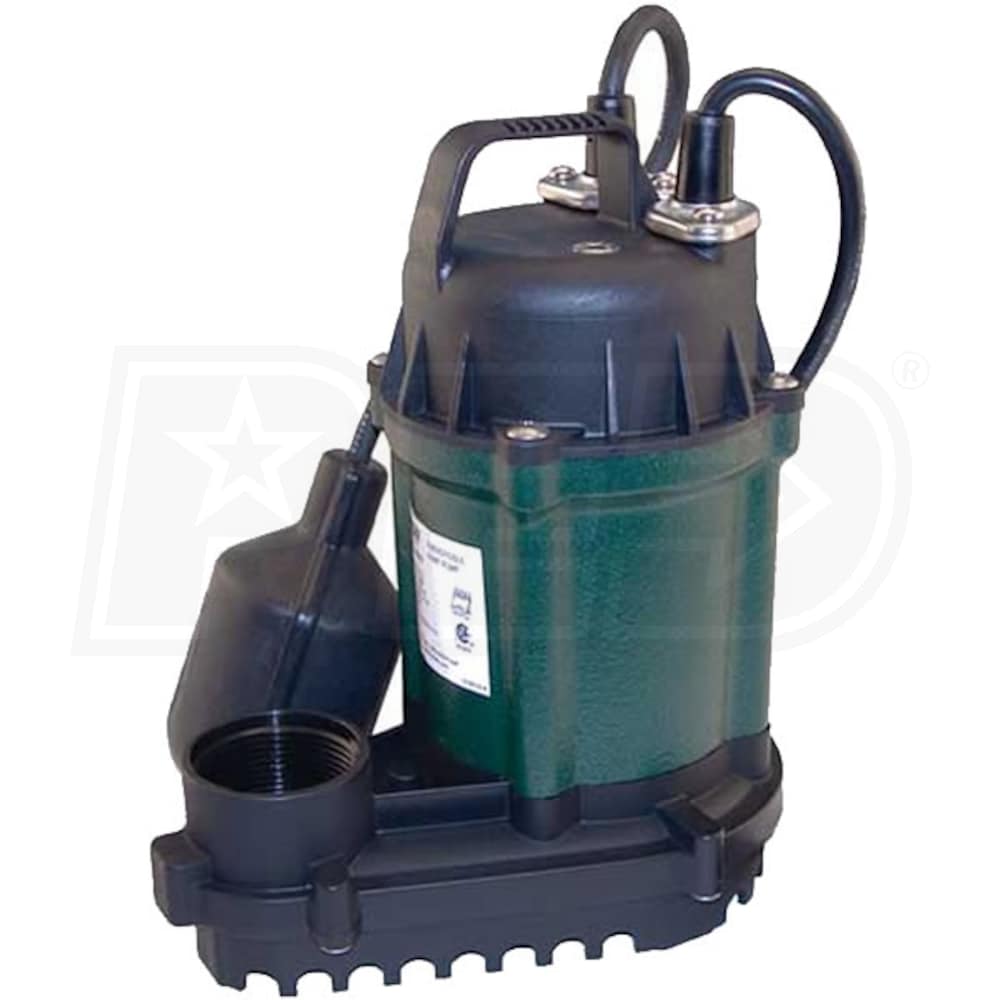

Zoeller WM49 - 1/4 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch

Model:

WM49

Write A Review
$203.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601
Zoeller WM49 - 1/4 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Zoeller WM49 - 1/4 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model: WM49
$203.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

1920 Gallons

Switch Type

Tether

  • Automatic Submersible Sump Pump
  • Cast Iron Motor Housing with Corrosion-Resistant, Baked-on enamel Finish
  • Rugged, offers years of reliable trouble-free operation
  • Thermally Protected, Permanent Split Capacitor Motor
  • Oil-filled, hermetically-sealed motor to prevent overheating
  • Reliable Tethered Float Switch
  • Stainless steel screws and hardware
  • No Sheet Metal Parts To Rust Or Corrode
  • Carbon and Ceramic Rotary Seal
  • Watertight, neoprene seal between motor and cover
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

WM49
specs product image PID-51131
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
4.0
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Tether Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1500
GPH @ 15 feet
600
Discharge Port Size
1-1/2 Inch
Float On
11.25 Inches
Float Off
4 Inches
Max Head
18 Feet
Engine
Horsepower
.25 HP
Overview
Product Category
Sump Pump
Weight
11 Pounds
Consumer Warranty
3 Years
Product Width
10.5 Inches
UPC
053514180843
Additional Model Numbers

49-0005, WM49
