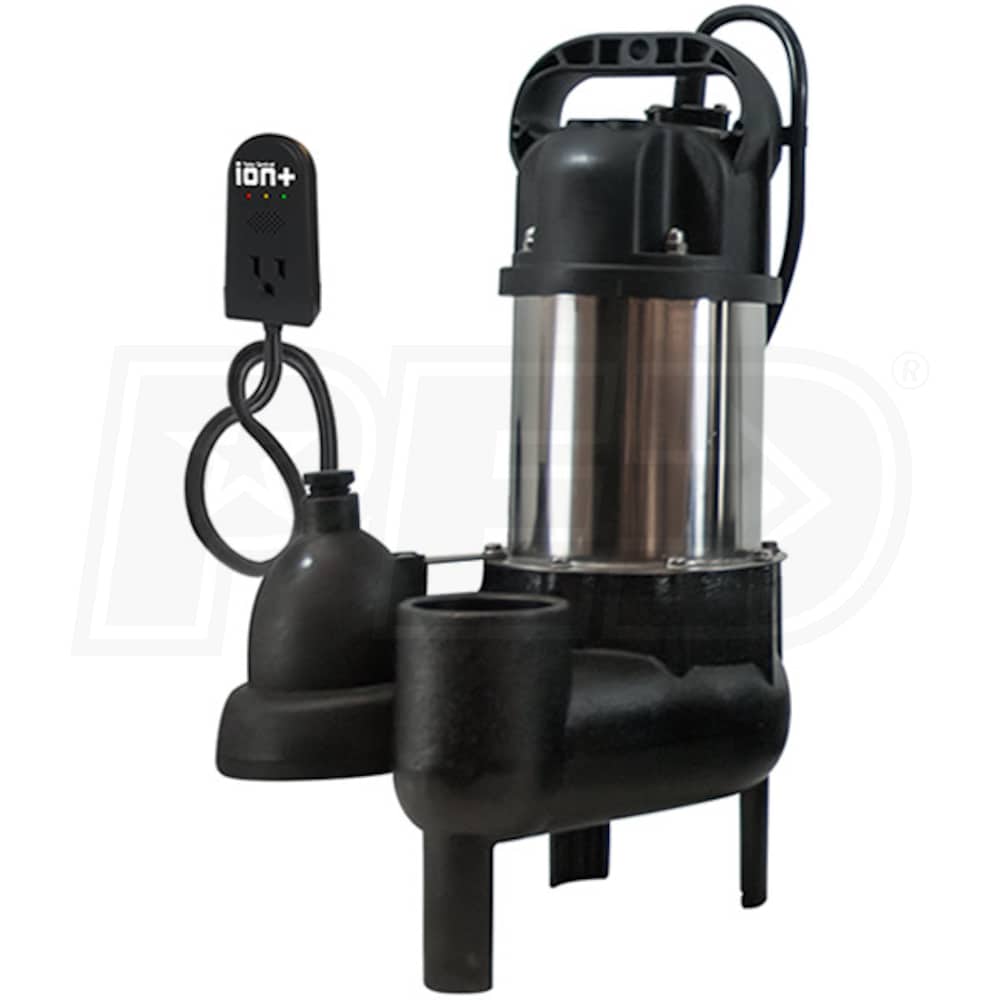

iON SHV40I+ - 1/2 HP Stainless Steel Sewage Pump (2") w/ ION Digital Level Control & High Water Alarm MHP20160iP
Model:
MHP20160IP
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
6
Model: MPPII
$1,105.00
Factory-Direct
Model: MPPIII
$1,215.00
Factory-Direct
$516.00
Factory-Direct
Model: INP20306
$196.00
Factory-Direct
Model: IN-SPB1-1
$11.00
Factory-Direct
Model: SHV40i
$441.00
Factory-Direct
Features
Style
Sewage Pump
GPH
5400 Gallons
Switch Type
Ion
- Automatic Submersible Sewage Pump
- Designed for residential and light commercial applications
- Stainless Steel Construction
- Min Basin Size 18" X 30"
- ION Digital Level Control (6" On/Off Diff.)
- First of a kind solid-state sensing technology w/ no moving parts
- 1/2 HP Thermally Protected Motor
- Oil-filled design, prevents overheating to extend pump life
- Cast Iron Vortex Style Impeller
- Easily pass solids up to 2-inches in diameter
- Stainless Steel Rotor Shaft w/ Carbon Ceramic Seal
- With permanently lubricated ball bearings for extended pump life
- Poly Resin Top Cap and Handle
- Made for easy installation and maintenance
- Piggyback Pump and Switch Cord Assembly
- Made for easy serviceability
- 20-Foot Power Cord
- Great for outdoor applications
- 3-Year Warranty
- *Note - (IN-SPB1-1) Required For Mounting Sensor On Pipe
Specifications
MHP20160IP

General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
16
Pump
Housing Material
Stainless Steel
Solids Handling Size
2 inch
Float Type
Ion Sensor
GPH @ 0 feet
5400
GPH @ 5 feet
4920
GPH @ 10 feet
4200
GPH @ 15 feet
3000
GPH @ 20 feet
1800
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Based on "On" Level
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
9.125 Inches
Product Width
5.5 Inches
Product Height
16 Inches
Additional Model Numbers
SHV40I+, MHP20160IP
Reviews
(1)
iON Products MHP20160IP Reviews & Ratings

This pump was my silver lining!
By B T
Carmel, Indiana
Purchased 02/17/2015 |
Review Posted 03/10/2015
Nobody likes when their sewage pump stops working. I did a little research and liked what the iom electronic level sensor offered. I then saw that they had a model that also had a high water alarm that could also connect to my home alarm/automation system to trigger alerts, etc. and thought that would be a good idea.
I checked this site and did not see it listed, so I called them. They checked and said they could get it, gave me a fair price and had it shipped out and delivered within 2 days. I was impressed.
I received the pump in great condition, unpacked it and was even more impressed. Very good build quality on this pump which inspires great confidence that I won't have to do that again for a while!
The only hiccup was that after I got the pump installed and was running the wiring back up through the hole in the sump cover the controller was too wide to fit through the hole. It was a minor inconvenience but that that it may be worth noting.
Pump has been well used and has served me well this far.
I checked this site and did not see it listed, so I called them. They checked and said they could get it, gave me a fair price and had it shipped out and delivered within 2 days. I was impressed.
I received the pump in great condition, unpacked it and was even more impressed. Very good build quality on this pump which inspires great confidence that I won't have to do that again for a while!
The only hiccup was that after I got the pump installed and was running the wiring back up through the hole in the sump cover the controller was too wide to fit through the hole. It was a minor inconvenience but that that it may be worth noting.
Pump has been well used and has served me well this far.
B T Recommends This
