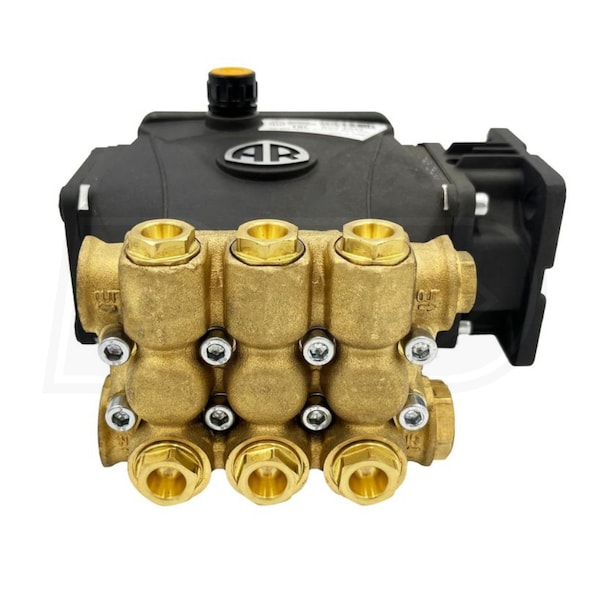

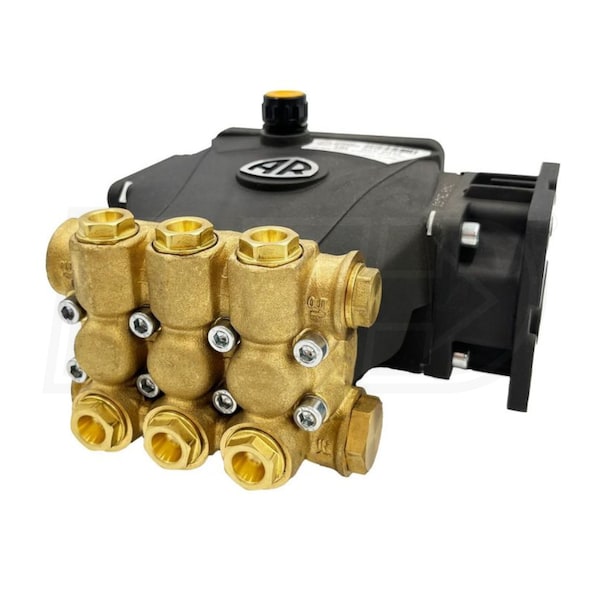

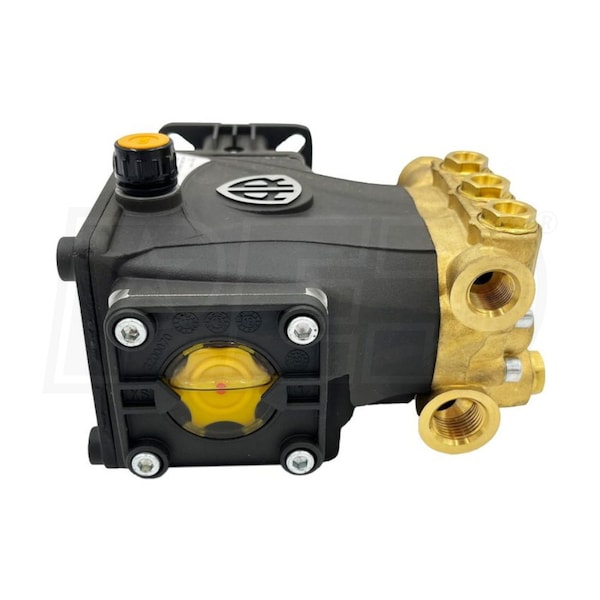

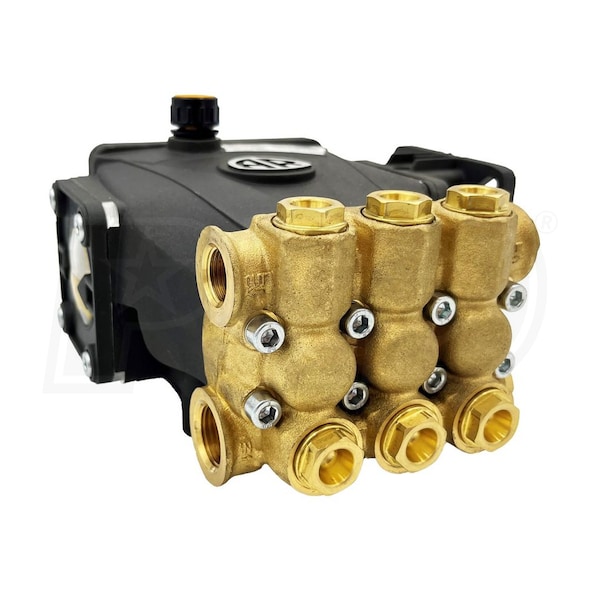

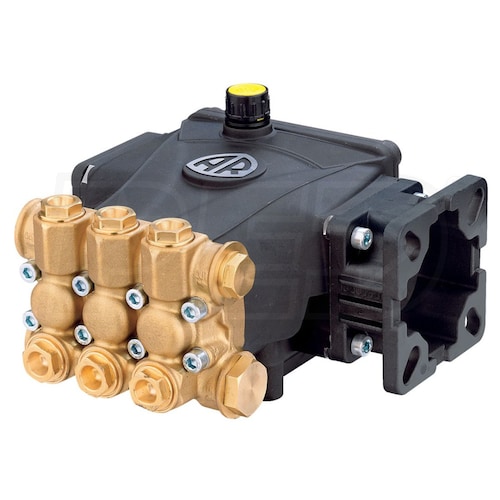

AR RCV-F7 2700 PSI 3 GPM (3/4" Shaft) Triplex Pressure Washer Pump
Model:
RCV3G27D-F7
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
- High Quality Replacement For Worn Out Pumps
- Professional quality at an affordable price
- Save money by replacing the pump instead of buying a new power washer
- Triplex Plunger Pump
- Strong, long lasting and corrosion resistant
- Brass pump head suitable for a wide range of conditions
- Constructed with frictionless aluminum connecting rods and ceramic pistons
- Extra-Thick Ceramic Plungers
- Double gasket sealing system and lip oil seals
- Suction and delivery valves with larger water passages.
- Standard SAE Gas Engine Flange
- SAE standard bolt pattern fits most gas-powered pressure washers
- Designed for gas-powered pressure washers with horizontal engines
- 3/4” Hollow Shaft Handles 3400 RPM
- Power EBHP 5.6
- Max Temperature 140° F
- Plunger bore 15mm, plunger stroke 6.5mm
- Oil capacity 9.81 ounces; Large oil site glass
- Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
- There is a 25% restocking fee on returned pumps
- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RCV3G27D-F7
Overview
Product Category
Pressure Washer Pumps
Weight
11 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
7.2 Inches
Product Width
7.51 Inches
Product Height
4.89 Inches
Power Type
Gas
UPC
192216251397
Accessories
Pump Brand
AR
Pump Type
Triplex Plunger
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
3
Rated PSI
2700 PSI
Temperature Rating
140
Chemical Injections
Not Included
