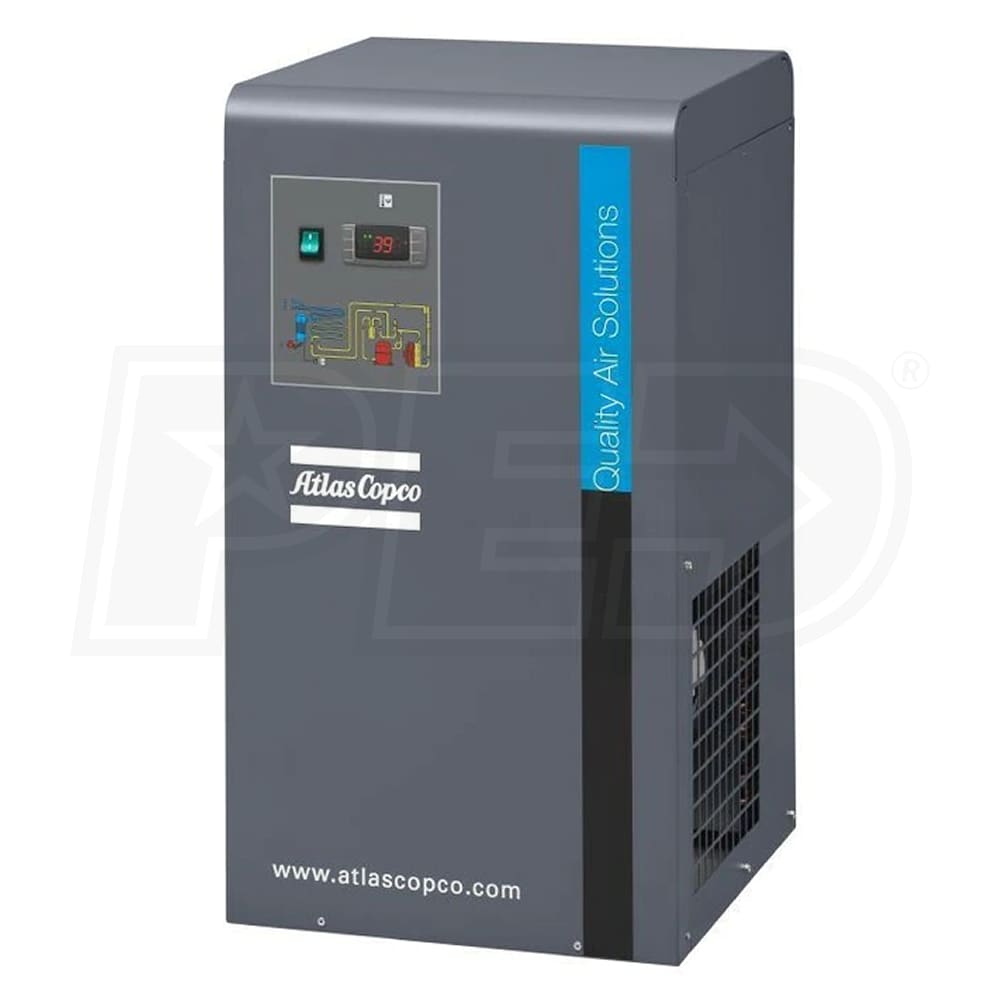

Atlas Copco FX108N Non-Cycling Refrigerated Air Dryer (246 CFM)

Model:

8102229367

Write A Review
$6,204.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Atlas Copco FX108N Non-Cycling Refrigerated Air Dryer (246 CFM)
Atlas Copco FX108N Non-Cycling Refrigerated Air Dryer (246 CFM)
Model: 8102229367
$6,204.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

230V 1-Phase

Air Dryer CFM

246
  • FX Compressed Refrigerant Air Dryer
  • Eliminates corrosion and damage due to moisture buildup
  • Increases reliability for tools and air system by removing contaminants
  • High-Performance Non-Cycling Dryer
  • Designed in-house and tested using the most stringent methods
  • Handles 229 CFM @ 100 PSI, 246 CFM @ 125 PSI & 263 @ 150 PSI
  • 1-1/2" NPT air connections and requires 230V 1-phase power
  • Steady Pressure Dew Point
  • Delivers dew point as low as +3°C/+37.4°F
  • Condensed moisture doesn't freeze; can't re-enter air flow
  • Simple & Proven Design
  • Hot gas bypass provides effective control
  • Quality components are generously sized

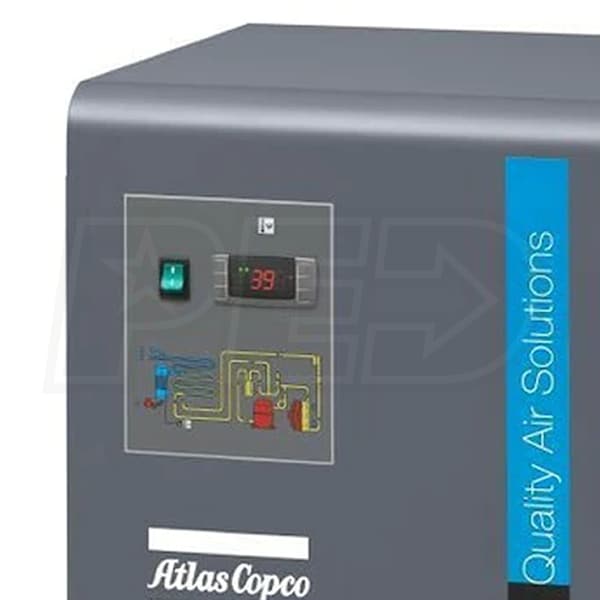

  • Plug & Play Concept w/ Digital Display
  • One electrical connection for easy installation
  • Monitor pressure dew point, status for refrigerant compressor and fan
  • Displays service warnings, alarms for high /low dew point and probe failure
  • Long Service Intervals
  • Minimal maintenance for maximum efficiency
  • Ergonomic design for fast access to key components
  • Sustainable Refrigerant
  • R410A refrigerant is compliant with F-Gas regulations
  • Ensures lowest possible carbon footprint and energy consumption
  • 1-Year Bumper To Bumper Factory Warranty
  • Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

8102229367
specs product image PID-114183
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
230V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
246
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
210
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
140
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
115
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Dry Amp Draw
8.42
Overview
Product Category
Air Compressor Accessories
Weight
181 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
23 Inches
Product Height
37 Inches
Power Type
Electric
