Atlas Copco 8102809822
Atlas Copco 8102809822
Atlas Copco 8102809822
Hover to zoom
1 Of 5
Atlas Copco 8102809822
Atlas Copco 8102809822
Sorry, this product is no longer available.
Try this product instead

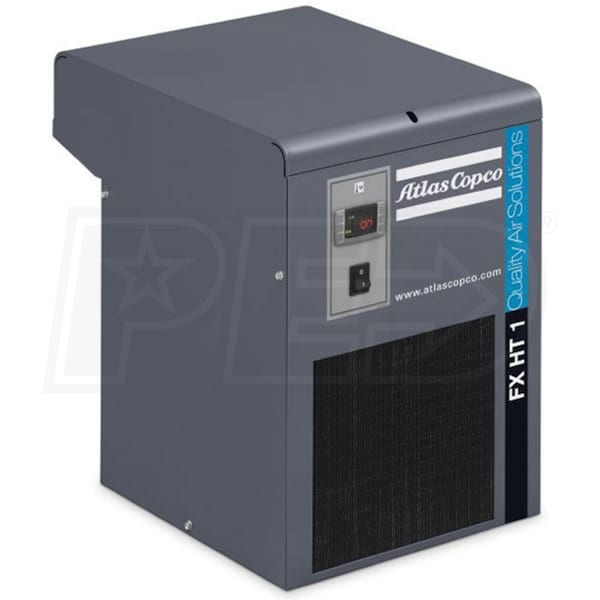

Atlas Copco FXHT1 Non-Cycling High Temperature Refrigerated Air Dryer 5HP (25 CFM)
Atlas Copco FXHT1 Non-Cycling High Temperature Refrigerated Air Dryer 5HP (25 CFM)
Model: 8102809822
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

25
  • Non-Cycling Refrigerant Dryer
  • Reliable, cost effective removal of condensation
  • Delivers reliable performance at any flow in many applications
  • High Inlet Temperatures
  • Designed for high outlet temperatures from piston compressors that don't have aftercoolers
  • Simple & Proven Design
  • Integrated pre-cooler allows for 50°F outlet dewpoints
  • Works with inlet temperatures up to 180°F
  • New Digital Display
  • Clearly indicates unit operating status for refrigerant compressor & fan
  • Shows high/low pressure dew point & probe failure alarms
  • Also shows service interval warnings
  • Environmentally Friendly
  • FX-HT 1 uses R134a refrigerant
  • Easy To Install
  • Requires 115V 1-phase power & 1/2" NPT air connections
  • 115°F maximum & 41°F minimum ambient temperatures
  • 2 Year Bumper To Bumper Factory Warranty
  • Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

8102809822
specs product image PID-66519
Engine
HP
5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
25
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
180
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
115
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Weight
57 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
14 Inches
Product Width
15 Inches
Product Height
19 Inches
Power Type
Electric
Additional Model Numbers

FX-HT-1-UL-115V1PH60, 8102809822
