Briggs & Stratton Intek™ 540cc 19 Gross HP OHV Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, 1/4" Straight Keyway
Model:
33R877-0003-G1
+
Share This Product
Features
- Model# 33R877-0003-G1 - 1" x 3-5/32", Tapped 7/16-20 & 1/4" Straight Keyway
- For lawn/garden tractors and Wide-area walk mowers
- Briggs & Stratton Intek™ 19 Gross HP Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Reliable and durable engine rated in accordance with SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- Full-Pressure Lubrication w/ Spin-On Oil Filter
- Keeps the oil cleaner from debris that can damage internal engine parts
- Dura-Bore™ Cast Iron Cylinder Sleeve
- Assures long engine life and improved oil control
- Anti-Vibration System - AVS®
- Provides a smoother ride and more coperator comfort
- Advanced Debris Management System
- High-volume cooling fan helps the engine breath freely
- High Capacity Dual-Clean™ Carthdidge-Style Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
- Float-Feed Carburetor & Mechanical Governor
- Allows for fast fuel delivery for reliable starting and operation
- Increases throttle response to maximize usable power for higher torque applications
- Magnetron® Electronic Ignition System
- Extremely reliable design, for consistent starting while being maintenance-free
- 12V Electric Starter & 9A Regulated Charging System
- Easily compatible with most tractor/mower starting systems
- Includes Pulse-Type Fuel Pump (Gas Tank Not Included)
- 2-Year Consumer Warranty & 1-Year Commercial Warranty Made in USA
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
33R877-0003-G1
Engine
Engine Series
B&S Intek
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
77 Lbs
CC
540 CCs
HP
19 HP
Cylinder Bore Type
Cast Iron
Bore
3.70 Inches
Stroke
3.06 Inches
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
77 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
047282017548
Reviews
(24)
Briggs & Stratton 33R877-0003-G1 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.96
(24 Ratings)
5
(23)
(23)4(1)
(1)3(0)
(0)2(0)
(0)1(0)
(0)
Just 👍
By Robert D.
Toms River, New Jersey
Purchased 08/19/2018 |
Review Posted 09/11/2018
Easy to install just had to change muffler, took about 15 minutes to install.
Robert D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, High Quality, Light Weight
Great Deal & Quick Delivery!
By Gary B.
Pennsville, New Jersey
Purchased 08/13/2018 |
Review Posted 09/07/2018
I started out ordering parts from Sears Direct and discovered Power Equipment Direct. Parts alone with shipping totaled $427.00. With delivery 7 to 10 days away. I ordered my motor on Tuesday (AM) and it was delivered on Thursday (PM). Repairing an 11-year-old motor was a gamble. I decided on the brand new motor that took 1-1/4 hrs to install and I was cutting grass. Great deal.
Gary B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Price, High Quality, Fast
Cons:
Bad Instructions, Instructions Could Have Been More Explicit
Great Engine
By James P.
Plesant Valley, Missouri
Purchased 07/06/2018 |
Review Posted 07/27/2018
My friend blew his engine, it was actually a 17.5 HP and I talked him into this one as it had slightly more power as well as an oil filter and pressurized lubrication as opposed to a sling. It was pretty much a direct replacement with the exception of the wiring. I unplugged the old wiring and found the plug for the start circuit, I had to rewire the charging circuit. I asked for a wiring diagram and the one they sent was actually not the one that was on the engine.
James P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, High Quality, Exceeded Expectations, Features
Cons:
Bad Instructions
Nice Motor
By Jeffrey W.
Saint Charles, Michigan
Purchased 06/29/2018 |
Review Posted 07/21/2018
Nice motor, went right in and hooked up to my LT1042.
Jeffrey W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again
Good Engine
By John P.
Elyria, Ohio
Purchased 06/25/2018 |
Review Posted 07/17/2018
Great engine and easy installation.
John P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Price, Reliable
Direct Replacement
By John S.
Ivor, Virginia
Purchased 06/10/2018 |
Review Posted 07/03/2018
This is a direct replacement engine for a Craftsman LT1000 yard tractor. The mounting holes are not threaded so I picked up some grade 8 bolts washers and nuts with nylon inserts and had it on the tractor in 15min ready to go. Make sure to put oil in it, you can use SAE30.
John S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again
Great Service & Expert Matching Ability
By Russell B.
Barnstable, Massachusetts
Purchased 06/06/2018 |
Review Posted 06/27/2018
I sincerely hope that this review is read not only by PED staff but customers and potential customers as well.
I am a landscaper. Motor blew on an Ariens walk behind mower- a machine I need to use 2-3 days a week. PED customer service was knowledgeable enough to match a replacement motor that would easily replace the motor that was on my machine- the guy even suggested upgrading to a motor with an oil pump vs. the splash motor the older one was running to prevent wear on the engine while mowing inclines.
Anyway, the price for the Intek 19hp I’d say was average. I had hoped to spend a little less but the motor came sooner than was expected and the wiring harnesses matched what was on my machine, sizing of the shaft and everything was spot on. I swapped the engines in only a couple hours, just had a hard time getting the pulley off the old engine (as expected). The motor fired right up and charging system is functional and so on. Was very pleased with how the replacement engine fit the machine with ease. The upgrade in horsepower was most definitely noticeable right off the bat. I had a huge field to mow and could tell the new engine was up to task vs. the old one. Thank you all very much!
I am a landscaper. Motor blew on an Ariens walk behind mower- a machine I need to use 2-3 days a week. PED customer service was knowledgeable enough to match a replacement motor that would easily replace the motor that was on my machine- the guy even suggested upgrading to a motor with an oil pump vs. the splash motor the older one was running to prevent wear on the engine while mowing inclines.
Anyway, the price for the Intek 19hp I’d say was average. I had hoped to spend a little less but the motor came sooner than was expected and the wiring harnesses matched what was on my machine, sizing of the shaft and everything was spot on. I swapped the engines in only a couple hours, just had a hard time getting the pulley off the old engine (as expected). The motor fired right up and charging system is functional and so on. Was very pleased with how the replacement engine fit the machine with ease. The upgrade in horsepower was most definitely noticeable right off the bat. I had a huge field to mow and could tell the new engine was up to task vs. the old one. Thank you all very much!
Russell B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Pros:
High Quality, Durable, Installation Was A Sinch
Cons:
Expensive
Very Pleased
By Roger K.
Reno, Nevada
Purchased 04/22/2018 |
Review Posted 05/19/2018
I purchased for riding mower repower and I am very pleased with the performance so far. Thanks.
Roger K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Price, High Quality
Works Great
By Michael M.
Hemet, California
Purchased 04/02/2018 |
Review Posted 04/28/2018
It will last well into my great grandkids lifetime.
Michael M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations
Great Transaction w/ PED- Replaced 12HP On Snapper
By Samuel S.
Lawrenceville, Georgia
Purchased 03/13/2018 |
Review Posted 04/03/2018
The engine arrived quickly and in good condition. The transaction with PED was easy, and no issues. Great people to do business with and recommend to others.

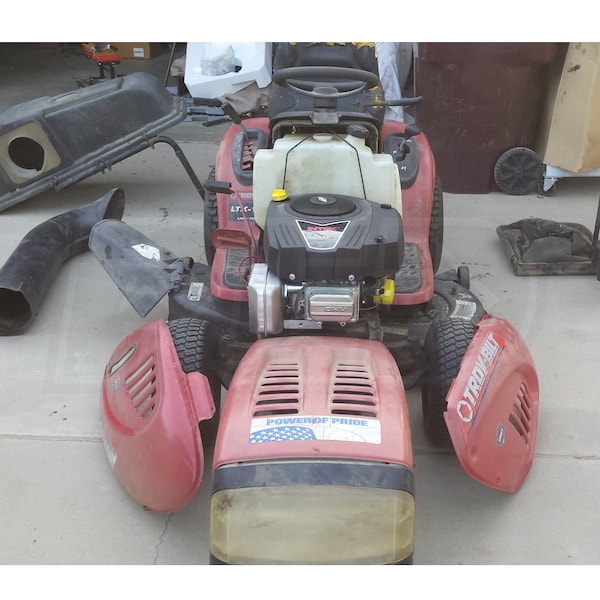

The engine was in perfect condition, bolted up, and cranked quickly. I mounted the 19 HP engine on an older rear engine rider, replacing a smaller 12 HP. A few minor changes were needed since the engine is physically larger than the older 12 but works well. The engine bolt pattern, shaft size for both engines are the same. The wiring harness was different, with many extras, so had to search the internet for wiring details. Would have been nice to have an easy color-coded wiring description. Great power now, on my Snapper rider. No one should put the recommended 10 HP replacement on the Snapper with this option.
The engine was in perfect condition, bolted up, and cranked quickly. I mounted the 19 HP engine on an older rear engine rider, replacing a smaller 12 HP. A few minor changes were needed since the engine is physically larger than the older 12 but works well. The engine bolt pattern, shaft size for both engines are the same. The wiring harness was different, with many extras, so had to search the internet for wiring details. Would have been nice to have an easy color-coded wiring description. Great power now, on my Snapper rider. No one should put the recommended 10 HP replacement on the Snapper with this option.
Samuel S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Price, Exceeded Expectations, Fast
Cons:
Bad Instructions,
