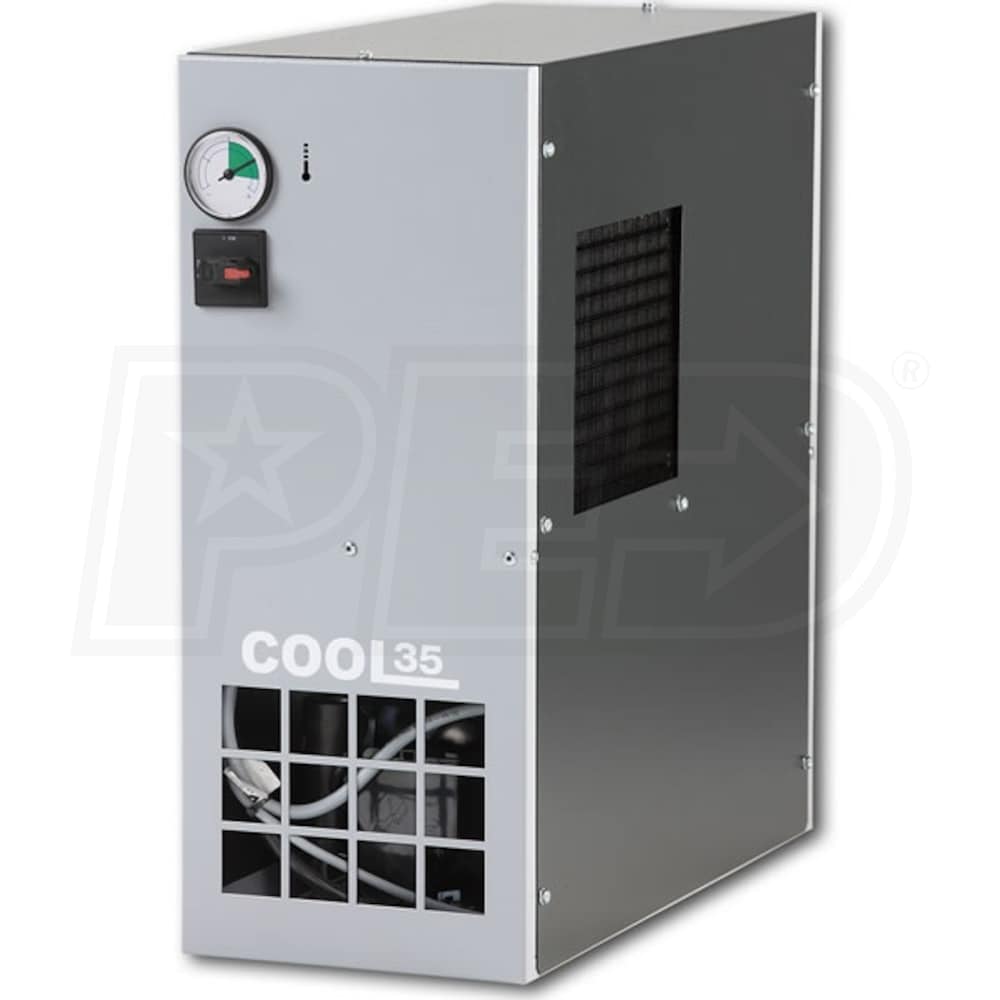

COOL35 1/2" Non-Cycling Refrigerated Air Dryer (35 CFM)

Model:

4102003586

Write A Review
$1,199.99
Was $1,499.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601

COOL35 1/2
COOL35 1/2" Non-Cycling Refrigerated Air Dryer (35 CFM)
Model: 4102003586
$1,199.99
Was $1,499.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

35
  • COOL 35 Refrigerated Air Dryer
  • Handles up to 35 CFM at 232 PSI maximum
  • 1/2M" fittings are easy to connect
  • Operates so quietly you won't know it's running
  • Simple, Low Maintenance Technology
  • Compact equipment fits in minimum space
  • Efficiently removes water pollution from your network
  • Large Heat Exchangers
  • High thermal exchange cools effectively
  • Permits a lower refrigerant charger
  • Allows lower GWP (Global Warming Potentional)
  • Low Pressure Drop Design
  • Larger and improved flow circuits
  • Significantly increases high exchange efficiency

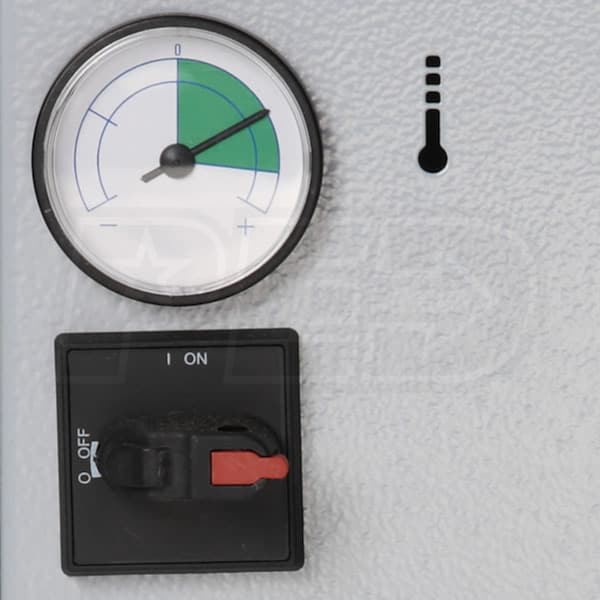

  • Dew Point Indicator
  • Pressure dewpoint of 50°F
  • Check air flow status at a glance
  • Environmentally Friendly
  • Uses R134a refrigerant that's easy on the environment
  • Avoid corrosion, leakage and rust in pipes & tools
  • Extremely Fast & Easy To Install
  • Works with most compressor technology
  • Runs on standard 115 volt, single phase power
  • Zero Loss Automatic Drain
  • Dumps the accumulated water without wasting air
  • Simplifies maintenance & saves energy dollars
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4102003586
specs product image PID-81973
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
35
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
122
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
104
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
42 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
9 Inches
Product Width
22 Inches
Product Height
22 Inches
Power Type
Electric
UPC
646223302547
