Features
Grade
Consumer
Style
Portable - Horizontal
CFM
2.4
Tank Size
8

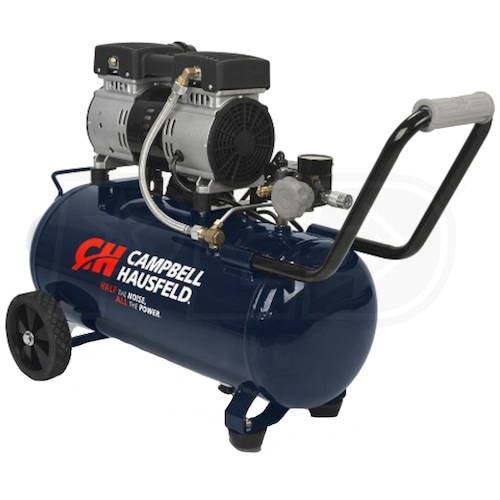

Campbell Hausfeld Quiet 1-HP 8-Gallon Portable Air Compressor
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Half The Noise, All The Power
- 68 dBA is up to 50% quieter than conventional 1-HP compressors; about as loud as a normal conversation
- Delivers 2.4 CFM at 90 PSI, 3.5 CFM at 40 PSI; ideal for tire inflation, hobby air brushing, finish nailing & stapling

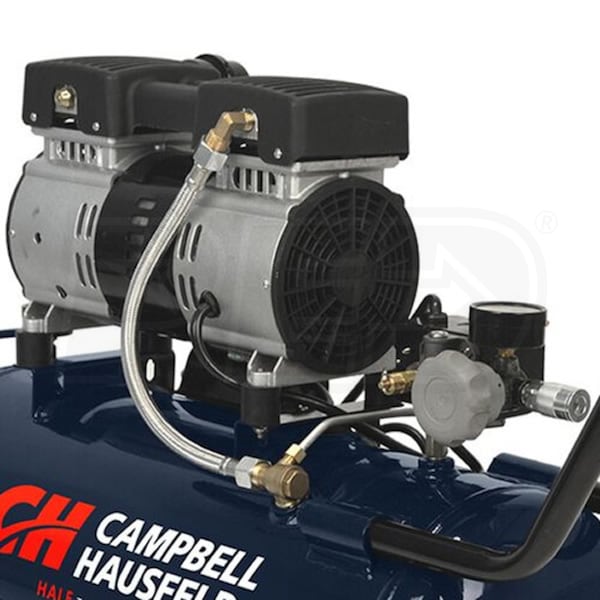

- Oil-Free Pump & Induction Motor
- Dual piston-pump system provides superior motor performance with no pump maintenance
- Key components last up to 4 times longer
- 8 Gallon Air Tank
- Produces up to 25% more air compared to other 1-HP units
- Rated up to 125 PSI; comfort-grip handle for easy transport & storage
- Top-View Controls
- Dual gauges let you monitor tank and tool pressure at a glance
- 1/4-inch air hose quick connect for speedy set up
- 1 Year Factory Warranty For Consumer Use
- Protects your investment; warranty is 90 days for commercial use
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
DC080500
General Information
Product Category
Air Compressor - Portable
Engine
HP
1
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.4
CFM Rated @
90 PSI
CFM @ 40 PSI
3.5
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
70 Pounds
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
26.8 Inches
Product Width
11.4 Inches
Product Height
23.6 Inches
Power Type
Electric
UPC
045564641948
Reviews
(5)
Campbell Hausfeld DC080500 Reviews & Ratings
The DC080500 1-HP 8-Gallon is the perfect handy portable air compressor to have around for a multitude of chores: small repairs, power caulking, or keeping your tires at their proper inflation to maximize mileage are good examples.
It has a greatly reduced noise level of 68 decibels which allows it to be used in home environments. It features a gauge and a regulator for easy monitoring of the tank and line pressure.
The oil-free, maintenance-free pump is among the key components that are designed to last up to four times longer than those of a conventional oil-free air compressor, so this unit will give you a long and quiet life of quality performance.
It has a greatly reduced noise level of 68 decibels which allows it to be used in home environments. It features a gauge and a regulator for easy monitoring of the tank and line pressure.
The oil-free, maintenance-free pump is among the key components that are designed to last up to four times longer than those of a conventional oil-free air compressor, so this unit will give you a long and quiet life of quality performance.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Nice Little Compressor
By Mark C.
North Carolina
Purchased 06/29/2024 |
Review Posted 07/24/2024
I love it, quiet, fast recovery, just rite for the garage.
Mark C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, I39d Buy It Again
Surprisingly Quiet Little Powerhouse!
By Nick R.
Claudville, Virginia
Purchased 11/11/2017 |
Review Posted 12/10/2017
Read all of the specs and watched several videos before purchasing this compressor.
Had my doubts about the claims that were made for it, but now that I've used it I can honestly say that it lives up to the promised levels of performance.
It has the capability to easily do all of the tasks claimed for it and at such a low sound level that it doesn't interfere with conversations in its proximity even in an enclosed garage. It's hard to tell that it's even running unless you're very close to it and it doesn't even scare the animals or bring on consternation from the women folk.
One of the best tool purchases that I've made in several years.
Very Pleased!
Had my doubts about the claims that were made for it, but now that I've used it I can honestly say that it lives up to the promised levels of performance.
It has the capability to easily do all of the tasks claimed for it and at such a low sound level that it doesn't interfere with conversations in its proximity even in an enclosed garage. It's hard to tell that it's even running unless you're very close to it and it doesn't even scare the animals or bring on consternation from the women folk.
One of the best tool purchases that I've made in several years.
Very Pleased!
Nick R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, Exceeded Expectations, I'd Buy It Again
Cons:
Low End Wheels
Not Strong Enough For Anything Except To Air Up Tires
By Charles S.
Jacksonville, Florida
Purchased 06/07/2017 |
Review Posted 08/12/2017
Not strong enough for any power tools.
Charles S. Does Not Recommend This
Was this review helpful?
Expert Response
Campbell Hausfeld rates this unit as capable of 2.4 CFM at 90 PSI. As we explain in How To Pick The Perfect Consumer Air Compressor you need to match your compressor to your air tools.
The Features for this unit list "tire inflation, hobby air brushing, finish nailing & stapling". Consumer/Hobbyist grade staplers typically use less than 2 CFM at 90 PSI, which leaves a little head room for best performance- a good match. A "power tool" like an impact wrench requires 4 CFM at 90 PSI (or more) so this unit is not recommended for those applications.
The Features for this unit list "tire inflation, hobby air brushing, finish nailing & stapling". Consumer/Hobbyist grade staplers typically use less than 2 CFM at 90 PSI, which leaves a little head room for best performance- a good match. A "power tool" like an impact wrench requires 4 CFM at 90 PSI (or more) so this unit is not recommended for those applications.
Dale V.
Power Equipment Expert
Rating Breakdown
3/5
3/5
2/5
2/5
Pros:
Easy To Use, Easy To Store
Won't Disappoint
By Joseph C.
LAUREL, Maryland
Purchased 01/29/2017 |
Review Posted 02/21/2017
Bought this CH 1 HP 8Ggallon Quiet air compressor because I have had an older CH for some 20 years before she finally gave out.
Love the new model because it has wheels and is much more quiet.
Love the new model because it has wheels and is much more quiet.
Joseph C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Price, Easy To Store
