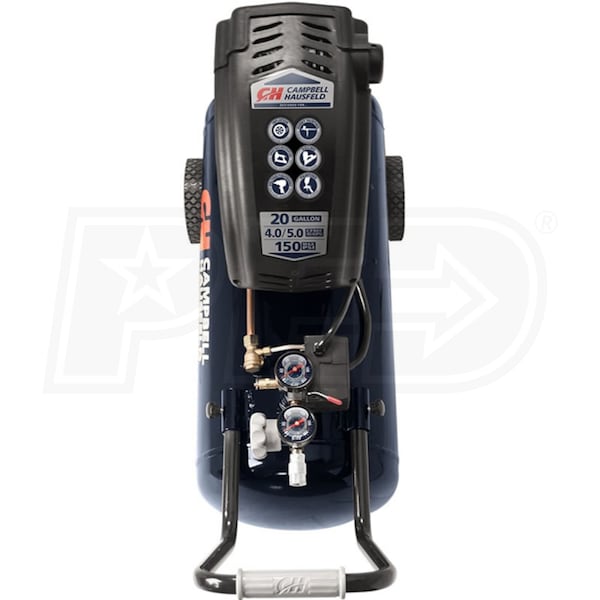

Campbell Hausfeld 1.3-HP 20-Gallon Air Compressor

Model:

DC200000

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Campbell Hausfeld 1.3-HP 20-Gallon Air Compressor
Campbell Hausfeld 1.3-HP 20-Gallon Air Compressor
Model: DC200000
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Optional Accessories 8
$25.00
Factory-Direct
$19.00
In-Stock
$25.00
Factory-Direct
$50.00
Factory-Direct
$75.99
Factory-Direct
$300.00
Factory-Direct
$15.99
Factory-Direct

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

4

Tank Size

20

  • Portable Air Compressor
  • Designed for the DIY enthusiast or weekend warrior
  • Oil Free, Maintenance Free Pump
  • Delivers 4 CFM at 90 PSI and 5 CFM at 40 PSI, perfect for a wide range of garage & workshop projects
  • 1.3-HP Induction Motor
  • Designed for superior performance and long product life
  • Fully Enclosed Motor & Pump
  • Robust shroud covers & protects all working components
  • Steel Handle & Large Wheels
  • Easy to transport & store
  • 20 Gallon Air Receiver
  • 150 PSI maximum with an easy to reach manual drain valve
  • Designed for hassle-free hobby painting, inflation, stapling, nailing, bolting & tightening
  • 1 Year Limited Factory Warranty
  • Protects your investment; limited to defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

DC200000
specs product image PID-78083
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
14
Engine
HP
1.3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Portable
Weight
92.6 Pounds
Certification
ETL
Consumer Warranty
1 Year
Product Length
31.5 Inches
Product Width
14.9 Inches
Product Height
30.3 Inches
Power Type
Electric
UPC
045564642082

Reviews

(2)
Campbell Hausfeld DC200000 Reviews & Ratings
Verified Buyer
Verified Buyer
Junk, Do Not Buy
By John B.
Brooklyn Park, Maryland
Purchased 12/27/2018 |
Review Posted 01/18/2019
I bought this compressor even though there were less expensive ones available because I've had this brand over the years with good results. The unit arrived with no shipping damage which raised my expectations. Unfortunately, I was soon disappointed as the compressor pressure switch had a bad air leak from the unloader. I ordered another made in China switch and replaced it only to have a similar yet smaller air leak. I guess we've gotten used to cheap foreign made products but my advice is to buy the cheapest one because they're all made in china junk. This one just had a higher price tag.
John B. Does Not Recommend This
Was this review helpful?
Expert Response
We are very sorry to hear the compressors is not working up to your standards. Many of our manufacturers prefer sending the parts directly out and speaking to the customers one on one to keep track of situations that come up with their units and ensuring the right part is placed the first time. The unit does come with a 1-year warranty on the unit please conact the folks at Campbell Hausfeld, toll-free at 800-330-0712 for troubleshooting help or warranty service. Be sure to have the serial number of your air compressor handy when you call them.

If you have any problems please don't hesitate to call us for assitance. We are happy to help you get his resolved is anny issues occur. Please accept our apologies for your disappointment and inconvenience!
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Manufacturer Response
We are sorry for your experience with this air compressor - we would like to assist you. Please reach out to us at 1-800-543-6400, Monday-Friday between 8am-4:30pm EST so we can help you with your unit.

Campbell Hausfeld Team
Campbell Hausfeld
Rating Breakdown
Features
3/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Low Quality, Expensive
Verified Buyer
Verified Buyer
Just What Was Needed
By Paul R.
Miles City, Montana
Purchased 12/05/2017 |
Review Posted 12/28/2017
Just what I was looking for.
Paul R. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Reliable, I'd Buy It Again
Cons:
Heavy
