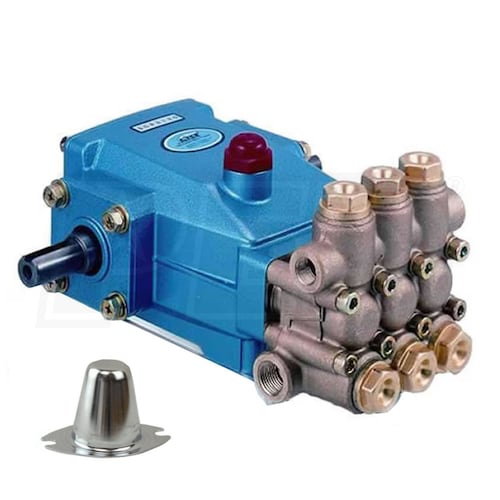

CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Shaft Cover (Belt Drive)

Model:

5CP3120-KIT

Write A Review
$785.42
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Shaft Cover (Belt Drive)
CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Shaft Cover (Belt Drive)
Model: 5CP3120-KIT
$785.42
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Pump Brand

Cat

  • High Quality Replacement For Worn Out Pumps
  • Professional grade pump for belt-driven pressure washers
  • Can be rebuilt to save money and extend life of pump
  • Triplex Plunger Pump
  • Belt driven for less wear and extended life
  • Ceramic plungers ensure even wear and extended seal life
  • Triplex plunger design provides smooth liquid flow
  • Convenient Connection To Most 3/4" Gas Engine Flange
  • 20mm solid shaft spins at 1645 rpm
  • Bore diameter 16mm (.630"); stroke 18mm (.709")
  • Suited for 14-HP engines; no siphon tube barb
  • Maximum water temperature of 160 degrees
  • Includes Shaft Protection Cover
  • Cover prevents injuries from rotating parts & protects shaft against external dirt
  • Does Not Include Adjustable Pressure Unloader Or Injector
  • Pump ships as shown; need to reuse your connectors or purchase separately
  • Chemical Injector (ACI005) & Unloader Kit (302) Sold Separately
  • Shaft Size Measurements Must Be Precise
  • There is a 25% restock fee on returned pumps
  • Dimensions are in the Spec sheet download under the Specs tab
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
  • Product Includes

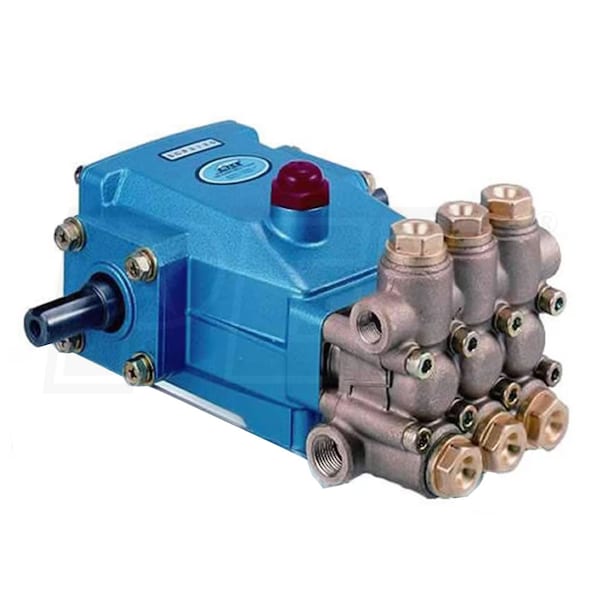

    • (1) CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive) (5CP3120)

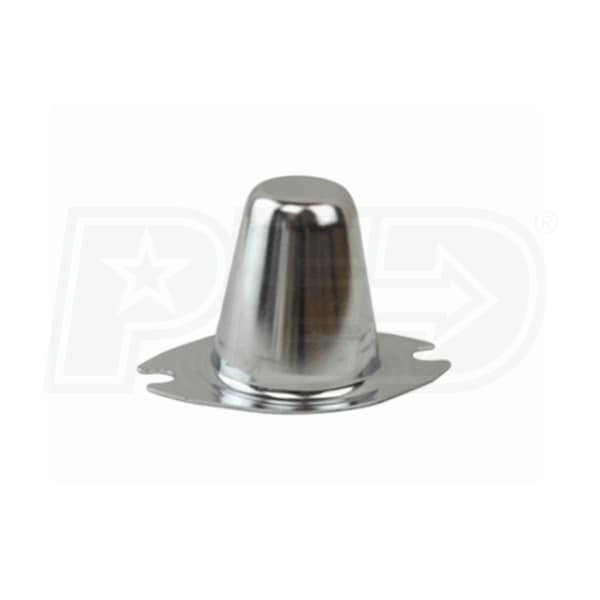

    • (1) CAT Pumps Shaft Protection Cover for CAT 3CP & 5CP Pumps (118672)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive) (5CP3120)
  • (1) CAT Pumps Shaft Protection Cover for CAT 3CP & 5CP Pumps (118672)
5CP3120-KIT
specs product image PID-157229
Pump
Pump Brand
Cat
Pump Type
Triplex Plunger
Adjustable Pressure
No
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
20 Pounds
Consumer Warranty
5 Years
Product Length
10.35 Inches
Product Width
10.0 Inches
Product Height
5.78 Inches
Accessories
Pump Brand
CAT
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4.5
Rated PSI
3500 PSI
Chemical Injections
Sold Separately
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
20 Pounds
Consumer Warranty
5 Years
Product Length
10.35 Inches
Product Width
10.0 Inches
Product Height
5.78 Inches
Pump
Pump Brand
Cat
Pump Type
Triplex Plunger
Adjustable Pressure
No
Accessories
Pump Brand
CAT
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4.5
Rated PSI
3500 PSI
Chemical Injections
Sold Separately
Overview
Product Category
