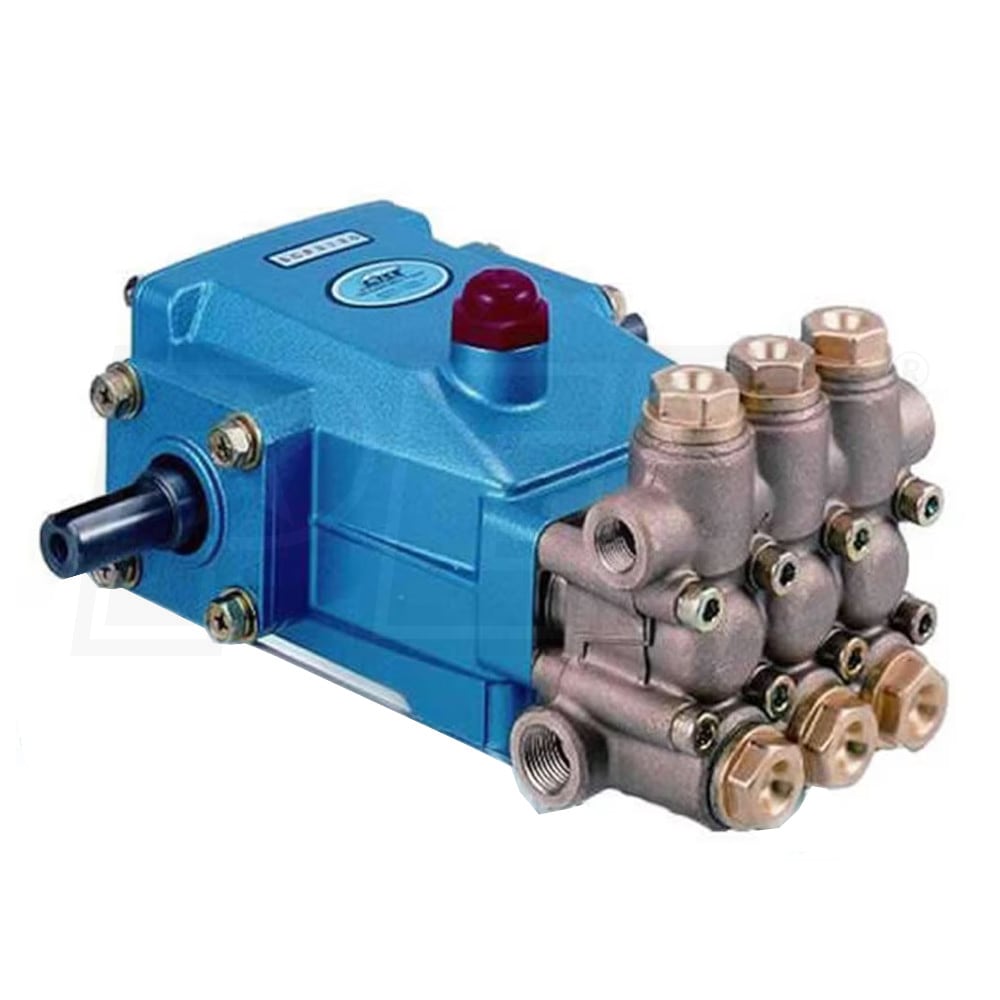

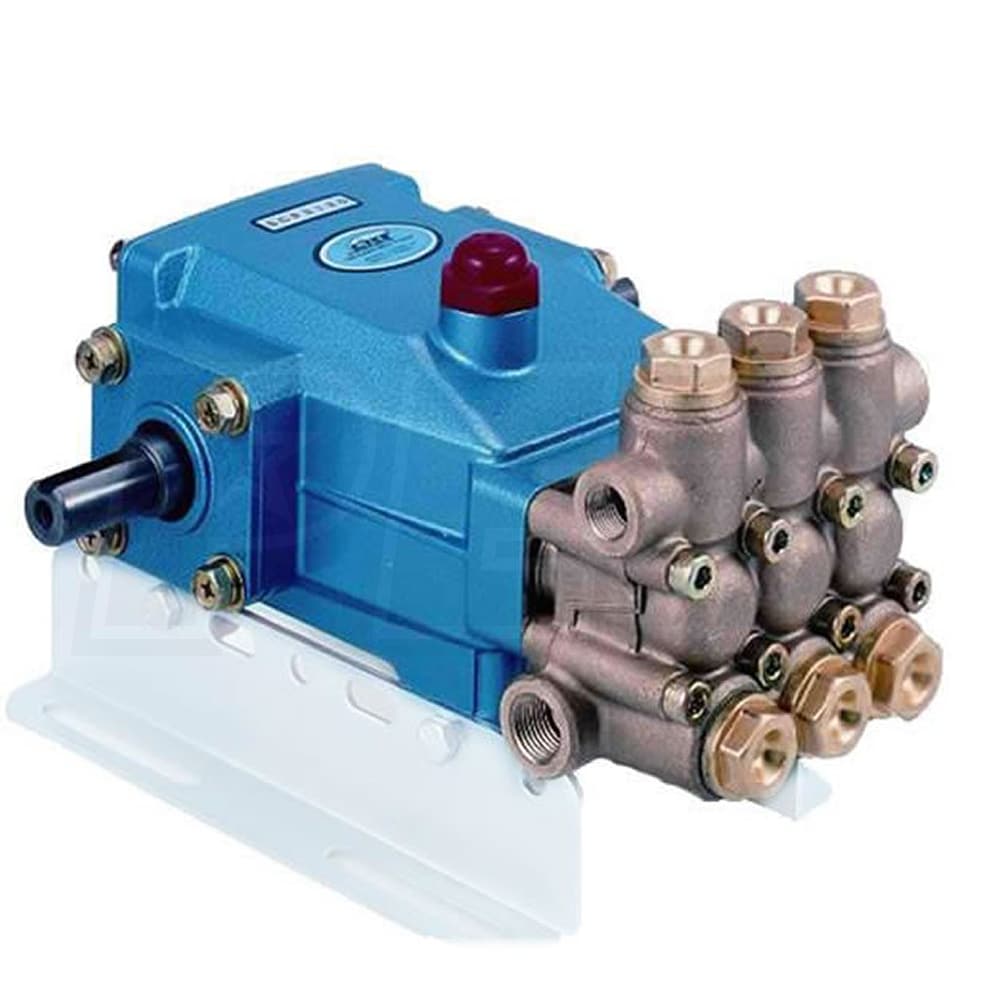

CAT Pumps 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model:
5CP3120
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
8
Model: NZMQC5P-050
$15.99
Only 1 In-Stock
$78.00
Factory-Direct
Model: AP31045
$23.00
In-Stock
$63.00
Factory-Direct
$37.00
Factory-Direct
Model: PWD-ULTIMATEQCKIT
$27.99
Factory-Direct
$27.00
In-Stock
Model: 348259
$32.00
In-Stock
Features
Grade
Professional
Style
Gas
Pump Brand
Cat
- High Quality Replacement For Worn Out Pumps
- Professional grade pump for belt-driven pressure washers
- Can be rebuilt to save money and extend life of pump
- Triplex Plunger Pump
- Belt driven for less wear and extended life
- Ceramic plungers ensure even wear and extended seal life
- Triplex plunger design provides smooth liquid flow
- Convenient Connection To Most 3/4" Gas Engine Flange
- 20mm solid shaft spins at 1645 rpm
- Bore diameter 16mm (.630"); stroke 18mm (.709")
- Suited for 14-HP engines; no siphon tube barb
- Maximum water temperature of 160 degrees
- Does Not Include Adjustable Pressure Unloader Or Injector
- Pump ships as shown; need to reuse your connectors or purchase separately
- Chemical Injector (ACI005), unloader kit (302) & mountingr rails (sold separately)
- Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee for returned pumps
- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
***Pump Does Not Include Required Shaft Protector. Must Be Purchased Separately***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
5CP3120
Pump
Pump Brand
Cat
Pump Type
Triplex Plunger
Adjustable Pressure
No
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
20 Pounds
Consumer Warranty
5 Years
Product Length
10.35 Inches
Product Width
10.0 Inches
Product Height
5.78 Inches
Accessories
Pump Brand
CAT
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4.5
Rated PSI
3500 PSI
Chemical Injections
Sold Separately
Reviews
(4)
Cat Pumps 5CP3120 Reviews & Ratings
Best Pump Out There
By Donald K.
Pinckneyville, Illinois
Purchased 03/07/2018 |
Review Posted 04/19/2018
Best pump on the market.
Donald K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Durable
Cons:
Expensive
It's A CAT- Enough Said
By John P.
West Virginia
Purchased 08/15/2017 |
Review Posted 09/05/2017
Very happy to use this site. Great products for a great price. I've never had to return something, hope the warranty on stuff is as good as my experience so far.
John P. Recommends This
Was this review helpful?
Expert Response
The Factory Warranty covers defects in materials and workmanship during consumer use for 5 years. If you have an issue you would call the CAT Pumps folks at 763-780-5440.
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, I'd Buy It Again, Exceeded Expectations, High Quality
Perfect Fit & Works Great
By Scott R.
hockley, Texas
Purchased 07/04/2017 |
Review Posted 08/17/2017
Good pump.
Scott R. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Pros:
Price, High Quality, I'd Buy It Again
CAT Pump & PED Experience
By Gary C.
Bozeman, Montana
Purchased 01/23/2016 |
Review Posted 02/16/2016
I have used this model of CAT pump for years. First time using PED as a supplier. Experience was good. Only cons were this:
1. Shipping was a slow even for using the free shipping option. Took 10 days from Florida to Montana.
2. Asked PED if the pump could be used right or left drive - was told that this pump was not set up for both but could be converted. I knew better so I bought it anyway. This pump can always be used either side.
3. Had to buy the unused shaft cover.
1. Shipping was a slow even for using the free shipping option. Took 10 days from Florida to Montana.
2. Asked PED if the pump could be used right or left drive - was told that this pump was not set up for both but could be converted. I knew better so I bought it anyway. This pump can always be used either side.
3. Had to buy the unused shaft cover.
Gary C. Recommends This
Was this review helpful?
Expert Response
This unit ships from the manufacturer- that's the "direct" part of Pressure Washers Direct. Our web page for this pump says "Factory Direct; Ships in 2-5 Business Days; Factory items ship direct from the manufacturer. Shipping times vary."
You submitted your order on Saturday, 1/23; we transmitted the order the same day. It shipped on Monday, 1/25- so it went out in 1 business day (Monday thru Friday, excluding holidays). That is better than the Ships In 2-5 Business Days we promised!
A further check shows that UPS delivered it to you on Monday, February 1st; the 6th business day after you placed your order. They don't show any weather delays, so that should be typical for UPS.
The shaft cover is included with the pump by CAT; there was no additional charge for it.
We're glad you're happy with the pump!
You submitted your order on Saturday, 1/23; we transmitted the order the same day. It shipped on Monday, 1/25- so it went out in 1 business day (Monday thru Friday, excluding holidays). That is better than the Ships In 2-5 Business Days we promised!
A further check shows that UPS delivered it to you on Monday, February 1st; the 6th business day after you placed your order. They don't show any weather delays, so that should be typical for UPS.
The shaft cover is included with the pump by CAT; there was no additional charge for it.
We're glad you're happy with the pump!
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Price, Reliable, I'd Buy It Again
Cons:
Bad Instructions, Does Not Come With The Cover For The Side You Are Not Using
Product Q&A
(1)
Product Questions
Answered by Jim, the Pressure Washer Expert
Is this a right or left hand mount?
Margaret Mulberry
from Illinois
March 03, 2016
