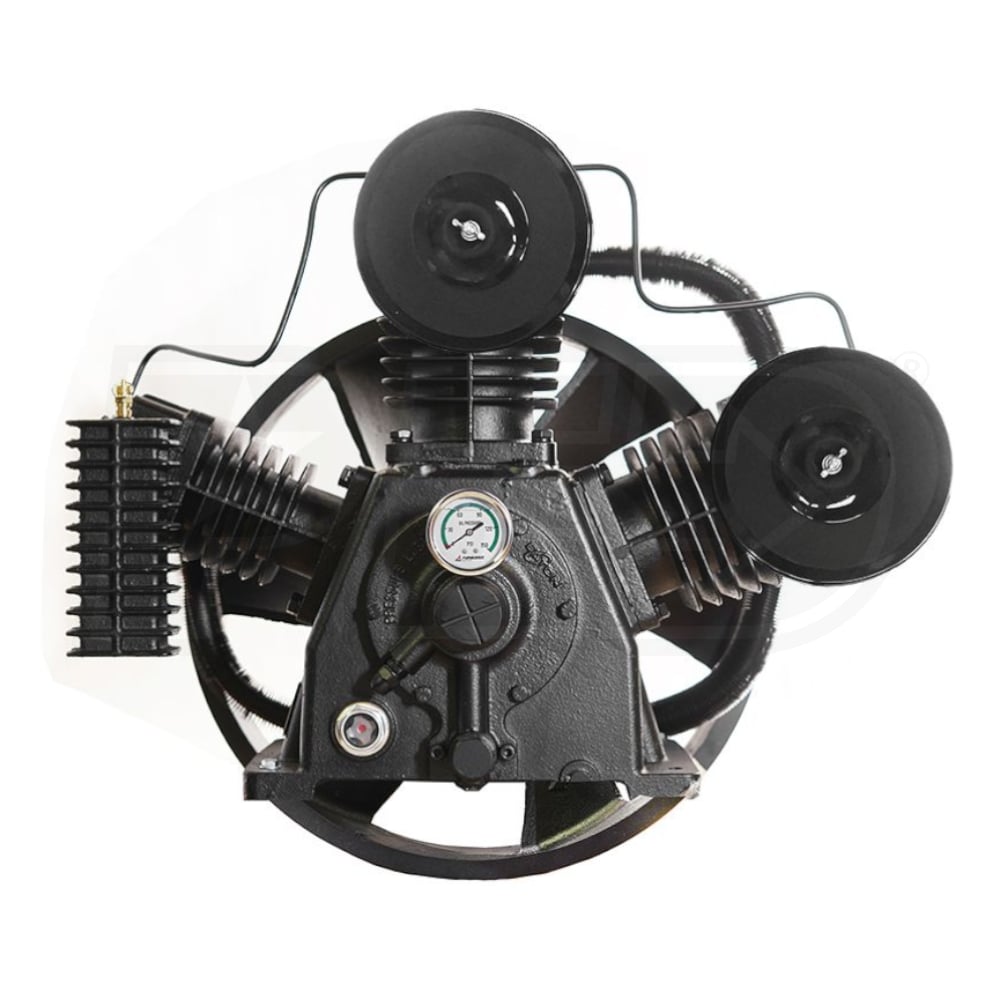

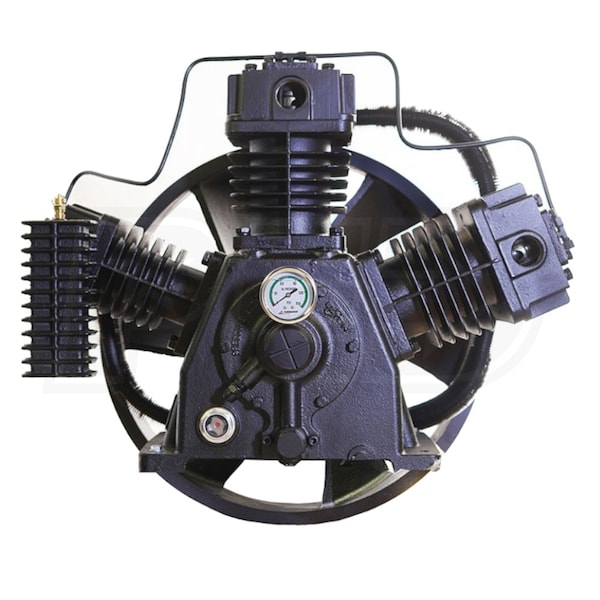

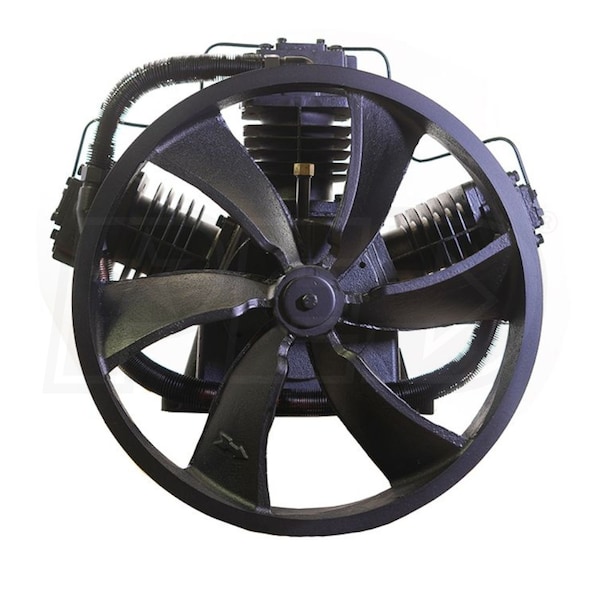

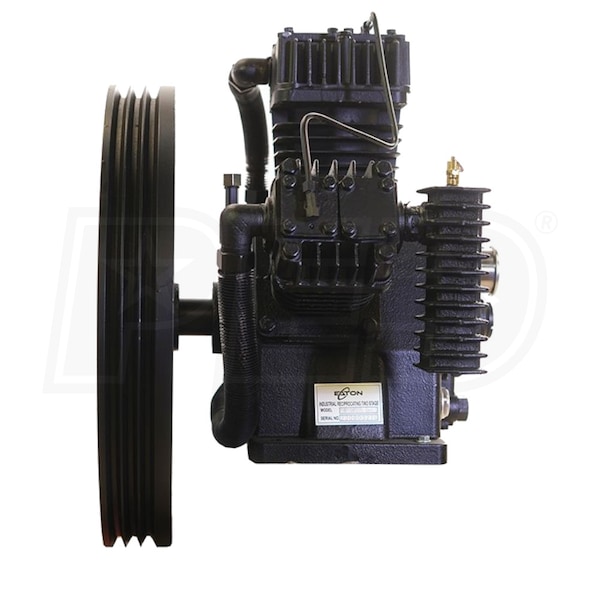

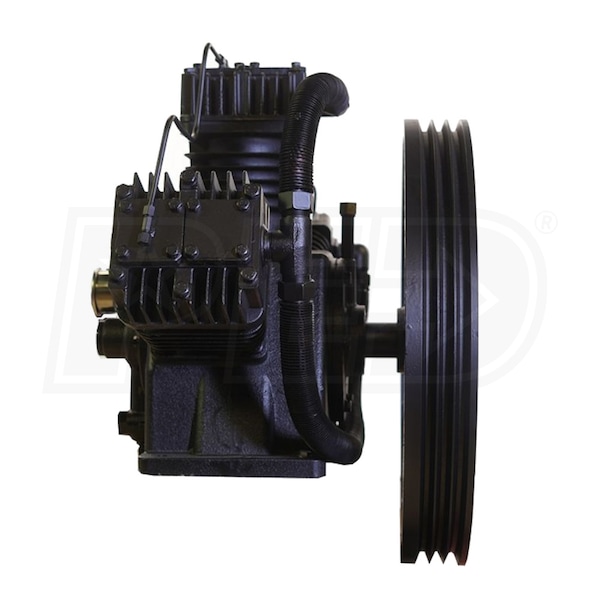

EMAX 15-HP 2-Stage Bare 3-Cylinder Replacement Pressure-Lubricated Air Compressor Pump (44 CFM Displacement @ 0 PSI)

Model:

APP3Y1544TP

Write A Review
$1,899.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

EMAX 15-HP 2-Stage Bare 3-Cylinder Replacement Pressure-Lubricated Air Compressor Pump (44 CFM Displacement @ 0 PSI)
EMAX 15-HP 2-Stage Bare 3-Cylinder Replacement Pressure-Lubricated Air Compressor Pump (44 CFM Displacement @ 0 PSI)
Model: APP3Y1544TP
$1,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Solid Cast Iron Two-Stage 4-Cylinder Piston Pump
  • Oil lubricated design to extend pump life
  • Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
  • All solid cast-iron - cylinders, crankcase, flywheel, crankshaft & valve plates
  • 44 CFM Displacement @ 0 PSI & 38 CFM @ 100 PSI
  • Pressure lubricating pump ensures oil to all critical components
  • Delivers constant lubrication even at speed as low of 100 RPMs

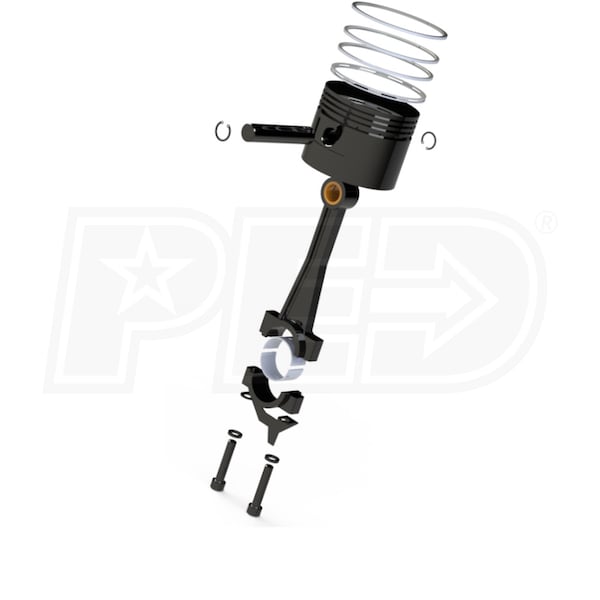

  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Designed for maximum performance and durability
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up and extends pump life
  • Industrial Grade Ball Bearings
  • For maximum performance and extended pump life
  • High Quality & Reliable Features
  • Large oil site glass, low oil shutdown & pressure gauge
  • Aftercooler for maximum cooling and large steel automotive type filters

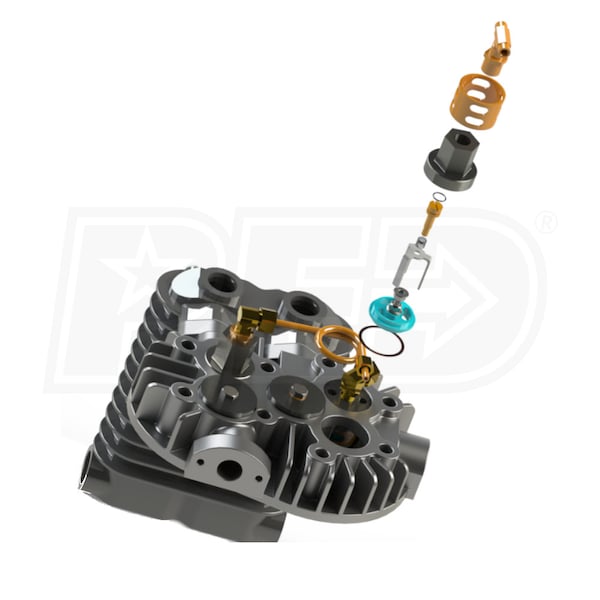

  • Built-in head unloaders designed for continuous run & twin B-section belt drive
  • Specifications:
  • Maximum PSI of 175
  • Includes break-in oil; Holds 2.5 quarts of oil
  • 1-Year Standard Limited Manufacturer Warranty
  • Extends to 5-years with purchase of Maintenance Kit Model: EFKIT009WBS
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

APP3Y1544TP
specs product image PID-153453
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
44
CFM Rated @
0 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Overview
Product Category
Air Compressor Parts
Weight
322 Pounds
Consumer Warranty
1 Year
Product Length
18 Inches
Product Width
26 Inches
Product Height
28 Inches
UPC
815002017983
