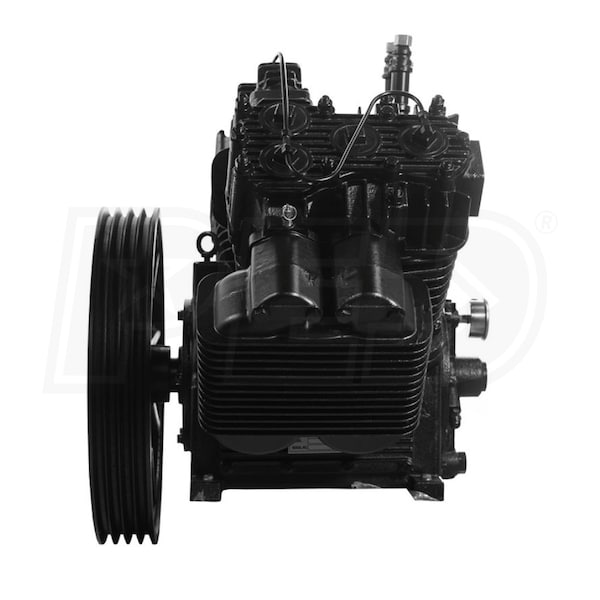

EMAX 25-HP 2-Stage Bare 4-Cylinder Replacement Pressure-Lubricated Air Compressor Pump (98 CFM Displacement @ 0 PSI)
Model:
APP4V2598TP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Solid Cast Iron Two-Stage 4-Cylinder Piston Pump
- Oil lubricated design to extend pump life
- Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
- All solid cast-iron - cylinders, crankcase, flywheel, crankshaft & valve plates
- 98 CFM Displacement @ 0 PSI & 93 CFM @ 100 PSI
- Pressure lubricating pump ensures oil to all critical components
- Delivers constant lubrication even at speed as low of 100 RPMs
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- Designed for maximum performance and durability
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 35% lower operating temperature
- Reduces moisture build up and extends pump life
- Industrial Grade Ball Bearings
- For maximum performance and extended pump life
- High Quality & Reliable Features
- Large oil site glass and pressure gauge
- Low oil shutdown &and large steel automotive type filters
- Built-in head unloaders designed for continuous run & twin B-section belt drive
- Specifications:
- Maximum PSI of 175
- Includes break-in oil; Holds 4 quarts of oil
- Bolt Pattern: 13-5/8" x 12-5/8"
- 1-Year Standard Limited Manufacturer Warranty
- Extends to 5-years with purchase of Maintenance Kit Model: EFKIT010WBS
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
APP4V2598TP
Engine
HP
25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
98
CFM Rated @
0 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Overview
Product Category
Air Compressor Parts
Weight
636 Pounds
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
41 Inches
Product Height
24 Inches
UPC
815002011134
