Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
58
Rated HP
10

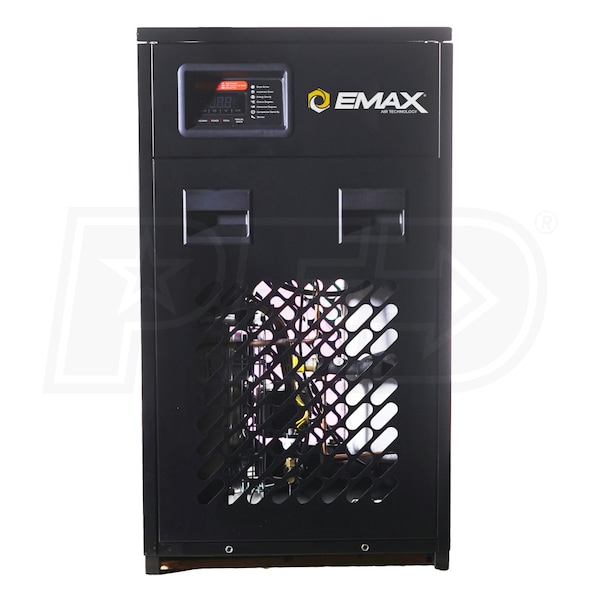

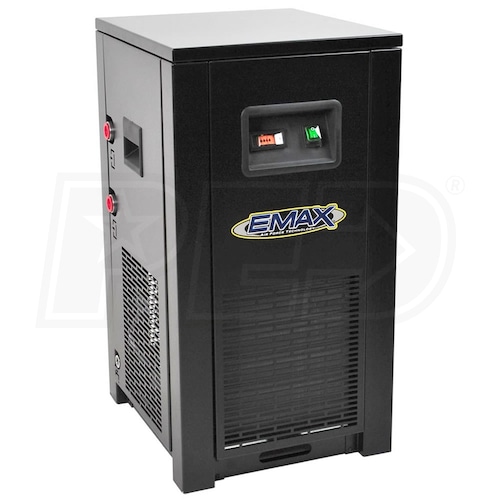

EMAX Industrial 115V-1 Refrigerated Air Dryer 10HP (58 CFM)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Premium Industrial 58 CFM Refrigerated Air Dryer
- Chills the air to condense & remove moisture; 115 Volt, 1-phase, 7.2 Amp power
- 230 PSI max; max inlet temp: 140°F; 37°F - 50°F dewpoint; designed for 3/4" pipe
- Max ambient temperature: 122°F; for use with compressors that do not have aftercoolers
- 5 Micron Pre-Filter
- Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
- 1 Micron Active Coalescing Filter
- Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
- Refrigerated Air Inlet Inner Cooler
- Trouble-free high temperature cooling for consistent, dry air

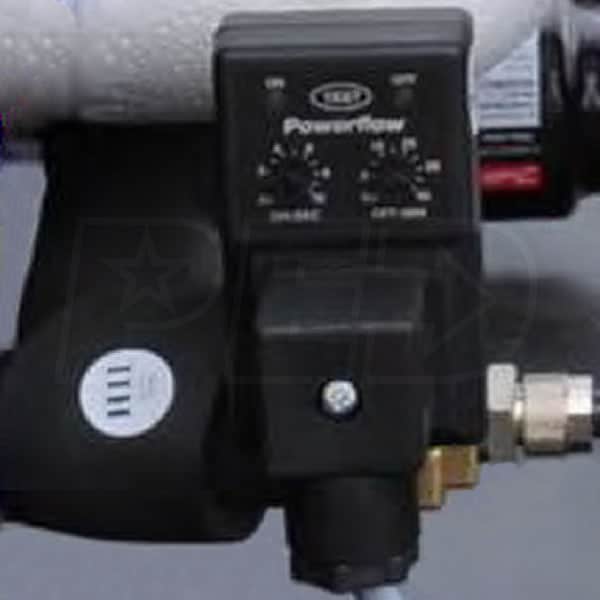

- Automatic Drain System
- Eliminates the need for daily maintenance
- Outlet Air Baffle Heater
- Prevents condensation on outlet air piping

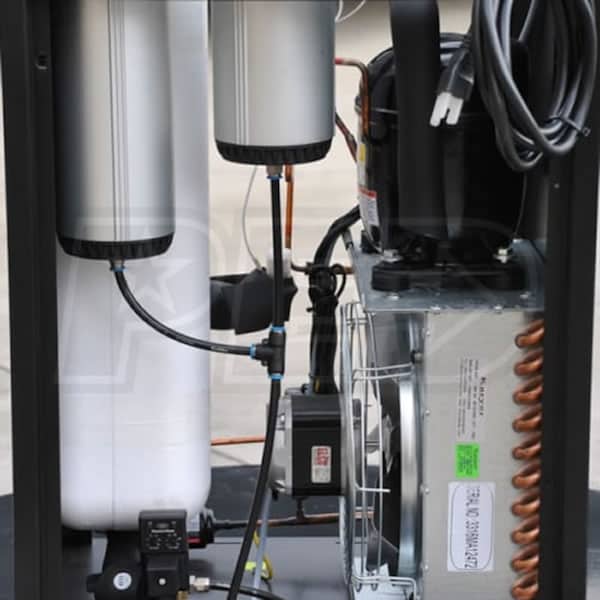

- Side Mounted Condenser & Fan Motor

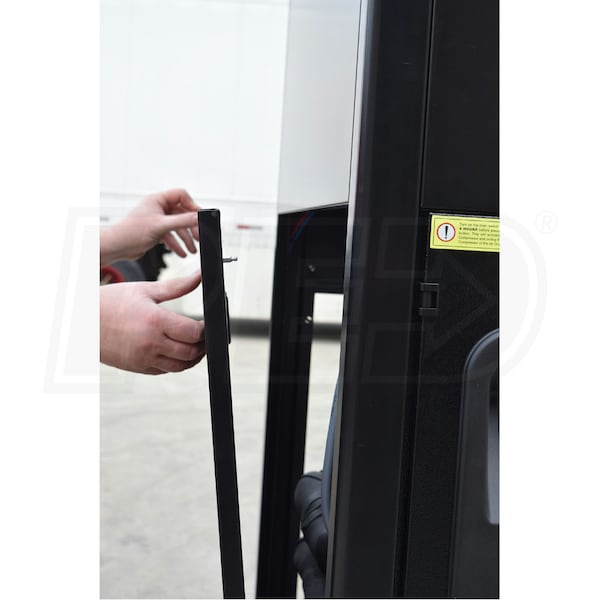

- Easy to reach & service through the cabinet doors- no screws to slow you down
- Uses environmentally friendly 134A refrigerant
- Heavy Duty Steel Cabinet & Safety Shut-Off Valve
- Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
- 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EDRCF1150058

General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
58
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
230
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
140
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
Rated HP
Rated HP
Possible corresponding compressor HP
10
Overview
Product Category
Air Compressor Accessories
Weight
120 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
24 Inches
Product Width
19 Inches
Product Height
30 Inches
Power Type
Electric
UPC
815002013336
Reviews
(1)
EMAX EDRCF1150058 Reviews & Ratings

Dealership Service Dept
By Josh T.
North Carolina
Purchased 11/26/2024 |
Review Posted 01/09/2025
We were constantly draining water from our air lines, each tech had a water bowl filter at their bay that they were draining daily. Since installing we have went more than two weeks without a drop of water great product. Using this on a 34 CFM compressor at 175 PSI.
Josh T. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for your review. We are so happy to hear your new EMAX Dryer was able to help make your daily operations move smoother. Thank you for being apart of the EMAX Family!

Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
