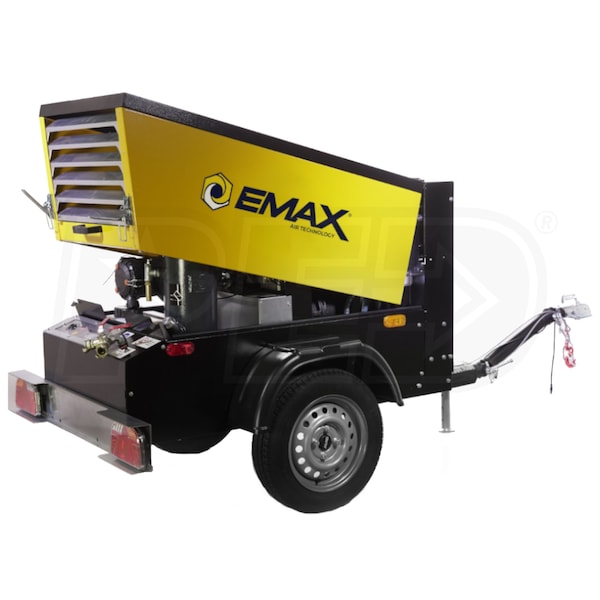

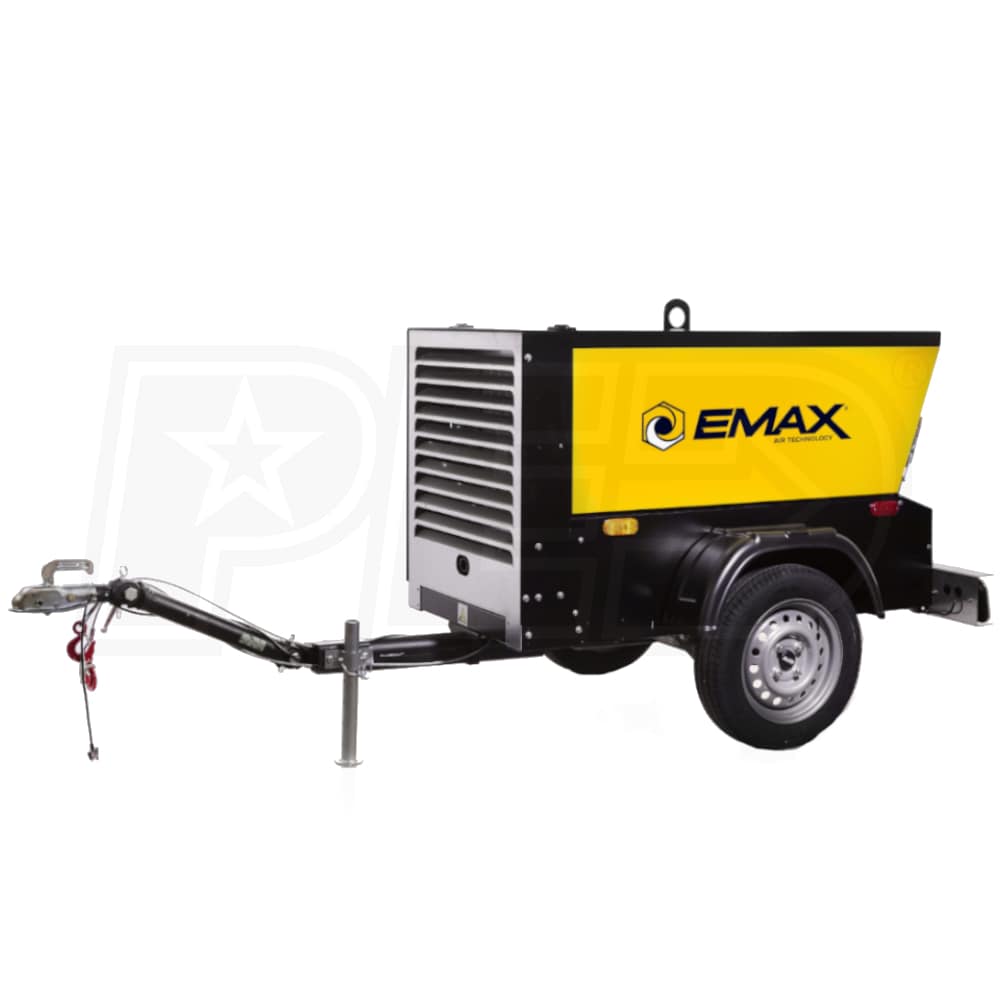

EMAX 24-HP Trailer Mounted Diesel Rotary Screw Air Compressor (115 CFM)

Model:

EDS115TR

Write A Review
$16,399.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

EMAX 24-HP Trailer Mounted Diesel Rotary Screw Air Compressor (115 CFM)
EMAX 24-HP Trailer Mounted Diesel Rotary Screw Air Compressor (115 CFM)
Model: EDS115TR
$16,399.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Engine Brand

Kubota

CFM

115

Tank Size

0

  • NOTE - Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • EMAX Trailer-Mounted Diesel Rotary Screw Air Compressor
  • DOT Certified for highway use, licensing and title registration
  • Precision Engineered Rotary Air End
  • 115 CFM @ 100 PSI (145 Max PSI)
  • Highly efficient design provides maximum discharge
  • Variable Speed Design
  • Provides higher fuel efficiency and longer life
  • 24-HP Kubota Diesel Engine w/ Electric Start
  • Dependable commercial grade engine starts easily, runs quietly
  • Electric Diesel Fuel Pump
  • Allows for reliable and consistent fuel delivery
  • Closed Air Valve Starting System
  • Helps increase starting efficiency
  • Standard High Ambient Temperature Operation
  • Keeps the compressor going during hot summer days
  • 3-Step Air-Oil Separation
  • Protects key components from premature failure
  • Convenient Air Outlets & Fuel Tank
  • Allows for easy air-line connection and re-fueling
  • Removable Side Panels
  • Easier access to service all components
  • Includes Hour Meter & Pressure Gauge
  • Makes this easy to operate and maintain
  • Auto Adjustable-Height Tow Bar
  • Allows for easier connection to truck
  • Dual Axle Locks
  • Helps keep the trailer in place during operation/storage
  • 1 Year Standard, 10 Year Extended Air End, Lifetime Extended Warranty
  • 3-Year Engine Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

EDS115TR
specs product image PID-143357
Engine
HP
24
Auto Idle
Yes
Engine Brand
Kubota
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
11
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
115
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Air Tools
NPT
3/4"
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Portable
Weight
1202 Pounds
CARB Compliant
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
113 Inches
Product Width
47 Inches
Product Height
50 Inches
Power Type
Diesel
UPC
810070051082
