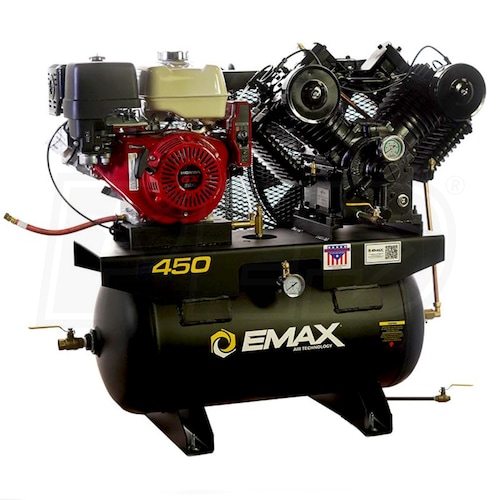

EMAX 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine

Model:

EGES1330V4

Write A Review
$3,899.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine
EMAX 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine
Model: EGES1330V4
$3,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

31

Tank Size

30

  • 13 HP Honda GX Engine w/ Electric Start
  • 4 cylinder design provides excellent torque & fuel efficiency
  • 1 gallon fuel tank lets you work longer between fill-ups
  • Battery and cables not included; must be purchased separately
  • Low 640 RPM Pump
  • Solid cast iron construction extends pump life up to 70,000 hours
  • Flow-Tek Concentric Disc Valves
  • Delivers maximum air flow & reliability with low replacement cost
  • Cool-Tek Cool Running Compressor
  • 35% lower operating temperature
  • Reduces moisture build-up & extends pump life
  • All-Steel rebuildable Connecting Rods w/ Disc Valves
  • Easy maintenance & extended durability
  • "One Turn" Belt Adjuster
  • Fast & easy maintenance
  • Reduces vibration & extends belt life
  • 30 Gallon Air Receiver
  • Powder coated to resist rust & corrosion
  • 5 year factory warranty on pump & tank; 2 years on other components
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EGES1330V4
specs product image PID-19000
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
595 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
55 Inches
Product Width
27 Inches
Product Height
43 Inches
Power Type
Gas
UPC
815002012865
