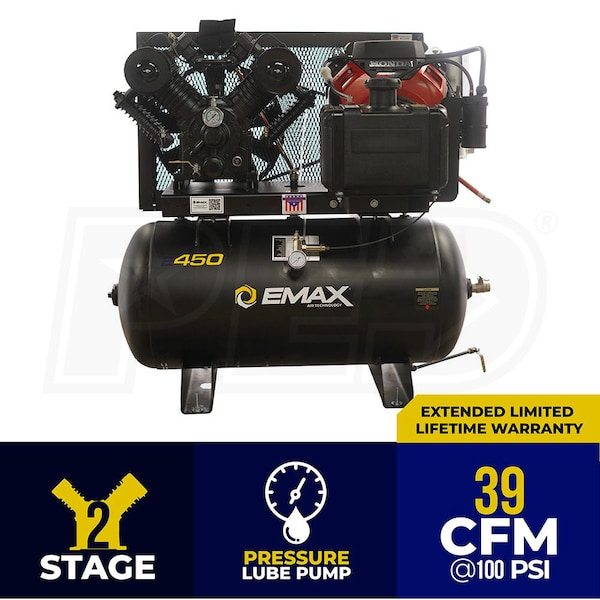

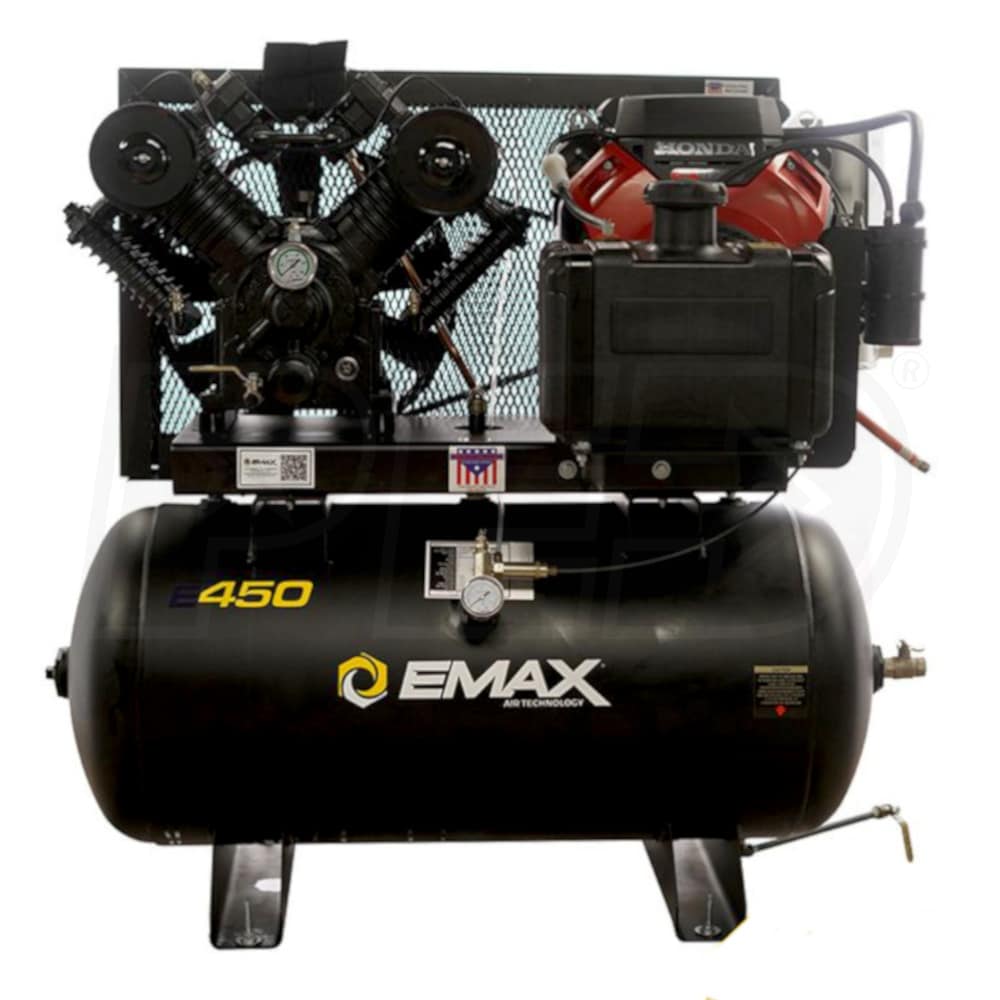

EMAX 18-HP 60-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine

Model:

EGES1860ST

Write A Review
$6,499.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX 18-HP 60-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine
EMAX 18-HP 60-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine
Model: EGES1860ST
$6,499.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Optional Accessories 5
Learn More
Subscribe to Save
Increase kit quantity to receive better savings per kit.
Quality Learn More
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quality Learn More
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Quantity
$30.00
Factory-Direct
$427.99
Factory-Direct
$94.29
Factory-Direct
Learn More
Subscribe to Save
Increase kit quantity to receive better savings per kit.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quantity
$191.00
Factory-Direct

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

39

Tank Size

60

  • Gas Drive Series Two-Stage Cast Iron Pump
  • Quiet, low RPM design
  • Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
  • 18-HP Honda GX Engine w/ Electric Start
  • OHV design provides excellent torque and fuel efficiency
  • Provides long life and proven durability
  • 5 gallon gas tank lets you work longer between fill-ups
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum air flow & reliability with low replacement cost
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Air-Stream Technology
  • Provides up to 50% longer pump life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 60-Gallon Truck-Mount Horizontal Air Receiver
  • Powder coated and ASME certified
  • ***Electric Start Battery & Cables Not Included; Must Be Purchased Separately***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EGES1860ST
specs product image PID-4180
General Information
Product Category
Air Compressor - Portable
Engine
HP
18
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
39
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
610 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
51 Inches
Product Width
23 Inches
Product Height
50 Inches
Power Type
Gas
UPC
815002010298

Reviews

(1)
EMAX EGES1860ST Reviews & Ratings
Verified Buyer
Verified Buyer
Compressor Is Great, Air Compressors Direct Not So Much!
By David L.
San Bernardino, California
Purchased 06/02/2021 |
Review Posted 10/13/2021
Paint on compressor looks like Ray Charles sprayed it and is this everywhere and not of the quality of the compressor I purchased from them back in 2019.

I ordered this compressor over 6 months ago and just now received it. Terrible communication and contact with Air Compressors Direct. They outsource their phones to a call center and all you get is the run around. I have around 25 hours constantly trying to find out where my compressor was!!!!

All in all at this point I would never recommend this distributor again.
David L. Recommends This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase of the EMAX 18-HP 60-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine. We appreciate you taking the time to provide us with your feedback and we can certainly understand your aggravation. We are sorry for the hold time you have experienced. Right now we are experiencing record levels of demand. We would like to apologize that you were not treated with the professionalism we strive for and every customer, deserves! Call, emails and chat times are much higher than usual. We are trying to accommodate all our customers as fast as possible. We can always be reached by email or there is a call back number on our system if you prefer not to wait on hold. Please make sure to let us know if there is anything else you need.

Please call us if you would like to discuss and please accept our apologies for your disappointment and inconvenience!
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Features
Cons:
Heavy
