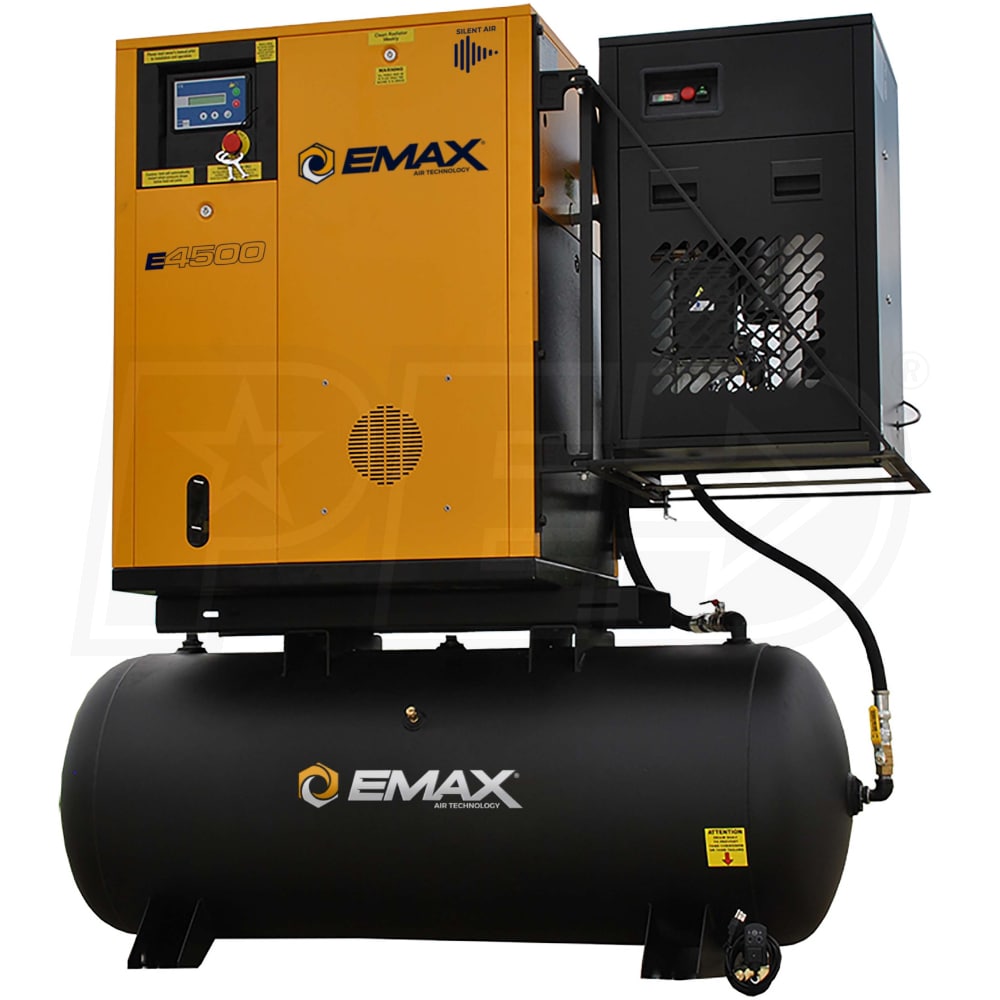

EMAX 10-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (208-230V 3-Phase)

Model:

ERSK100003

Write A Review
$12,599.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

EMAX  10-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (208-230V 3-Phase)
EMAX 10-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (208-230V 3-Phase)
Model: ERSK100003
$12,599.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

3-Phase

CFM

45

Tank Size

120

  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Rotary Screw Air System
  • 208/230V 3-phase drives 1750 RPM motor
  • Drive-Tek
  • Reduces energy demand up to 33%; easy-access filters & separators
  • Standard Y/Delta Soft Start Motor
  • Provides reduced energy demand & amp draw on start up
  • PLC Controller - Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Also monitors remote start/stop & automatic tank drain
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower 64 dBA operation than a typical rotary screw
  • EMAX EDRCF1150058 58 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Coalescing 65 CFM Filter Included With 120 Gallon ASME Air Tank
  • Removes oil, water & particles to provide cleaner air
  • 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and motor with purchase extended warranty service kit
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SERVICEKIT001A Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERSK100003
specs product image PID-14534
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
45
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1195 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
80 Inches
Product Width
38 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002010687
