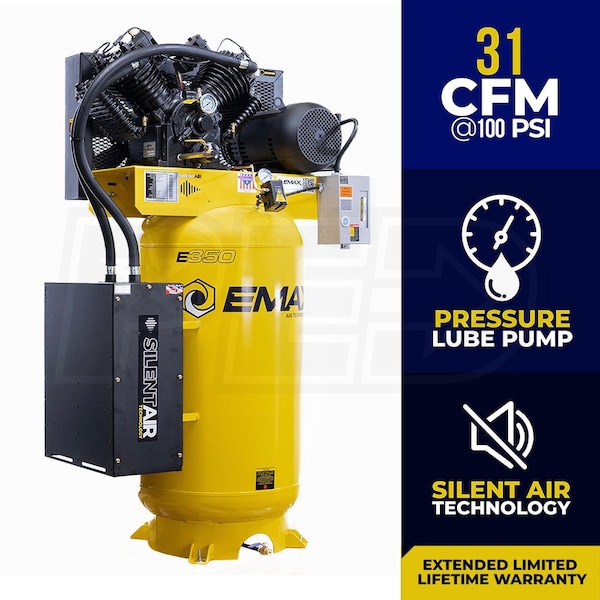

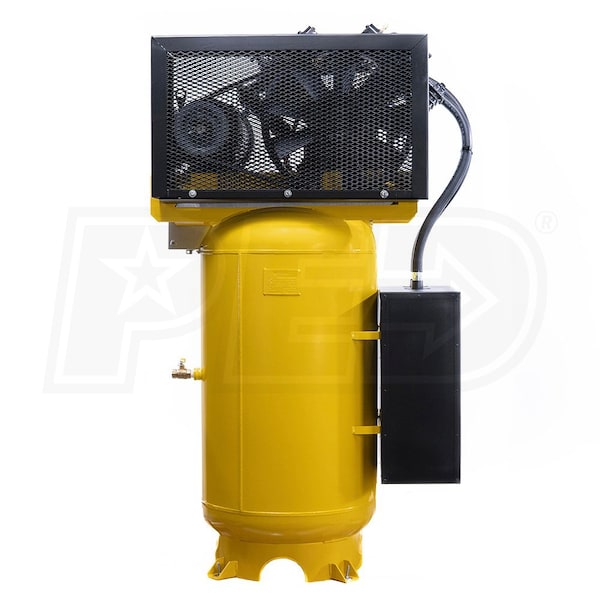

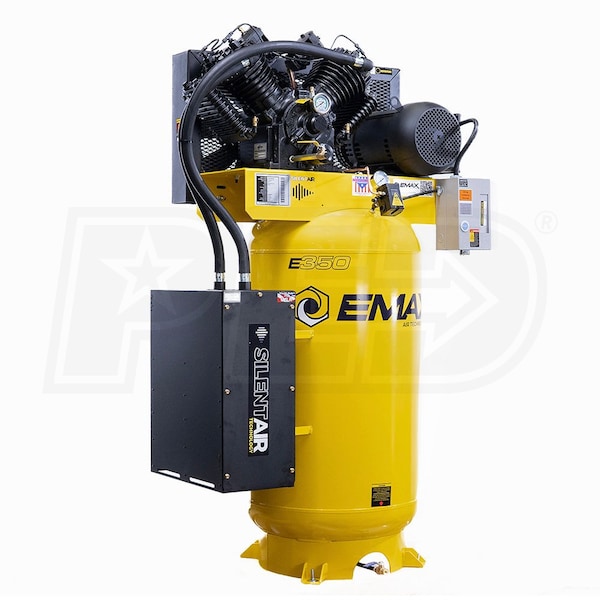

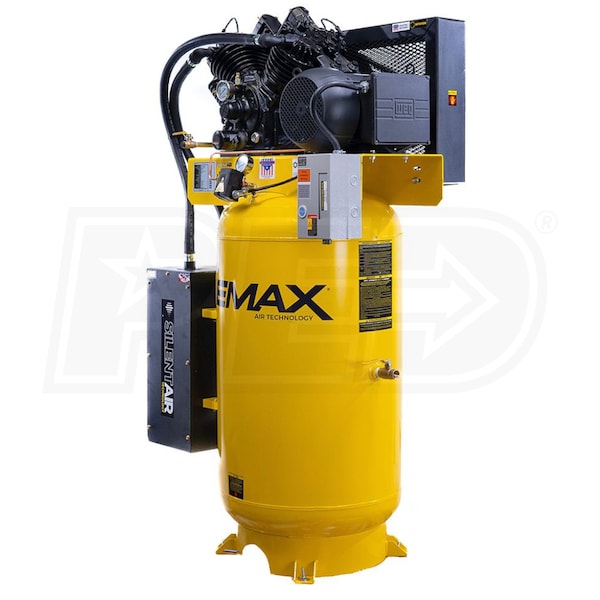

EMAX Industrial Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

Model:

ES07V080V1

Write A Review
$3,329.10
Was $3,699.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

EMAX Industrial Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
EMAX Industrial Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: ES07V080V1
$3,329.10
Was $3,699.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

31

Tank Size

80

  • Patented Silent Air Technology
  • Dissipates compressor intake noise
  • Channels intake air through baffle plates & pre-filter media
  • Piston intake noise is trapped & dissipated
  • Reduces dBA Readings By Up To 20%
  • Less than a household vacuum cleaner
  • Ideal for applications where workers are close to the compressor
  • Solid Cast Iron Pump
  • Durable & reliable construction delivers performance
  • 100 PSI turn-on pressure; 145 PSI shut-off pressure
  • 7.5 HP 208/230 Volt 1-Phase Industrial Grade Motor
  • 64 start amps needed; runs at 32 amps; 50A breaker recommended
  • 1750 RPM Motor
  • Low RPM motor runs quieter & cooler; lasts longer
  • 80 Gallon Air Tank
  • ASME rated for safety; 3/4" air outlet
  • Includes isolation pads to lessen vibration and noise
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ES07V080V1
specs product image PID-18821
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
743 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002012704

Reviews

(89)
EMAX ES07V080V1 Reviews & Ratings

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Melissa, the Air Compressor Expert

How-To Articles

How To Pick The Perfect Two-Stage Air Compressor
How To Pick The Perfect Two-Stage Air Compressor
If you've ever worked in manufacturing or visited your local garage, you might ...
How to Audit Your Compressed Air System
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Power Equipment How-To Library
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
EMAX Industrial Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
EMAX ES07V080V1
EMAX ES07V080V1
EMAX ES07V080V1
EMAX ES07V080V1
EMAX ES07V080V1
EMAX ES07V080V1
EMAX ES07V080V1
EMAX ES07V080V1

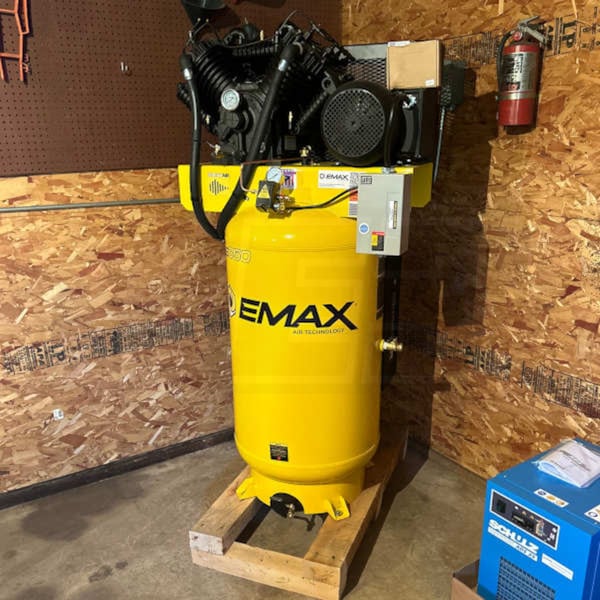

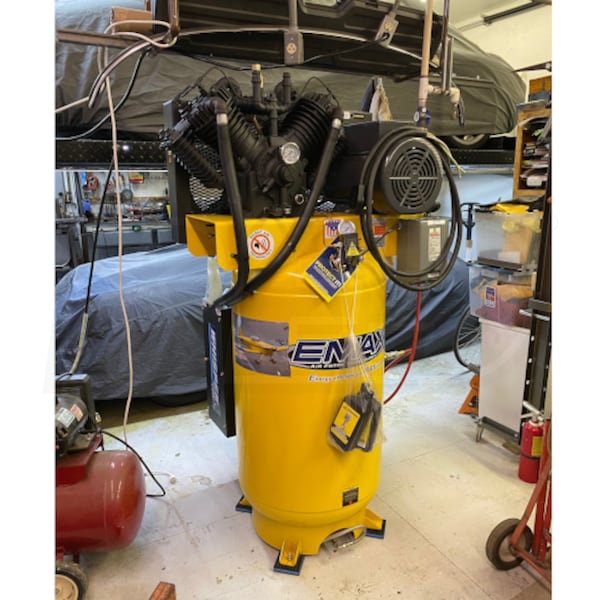

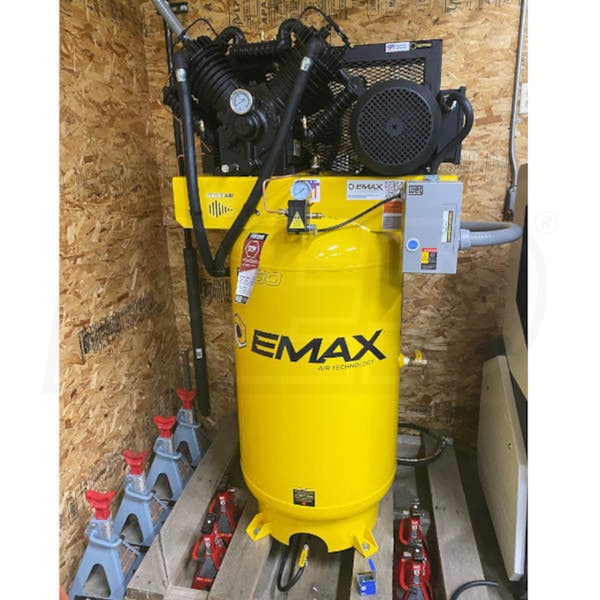

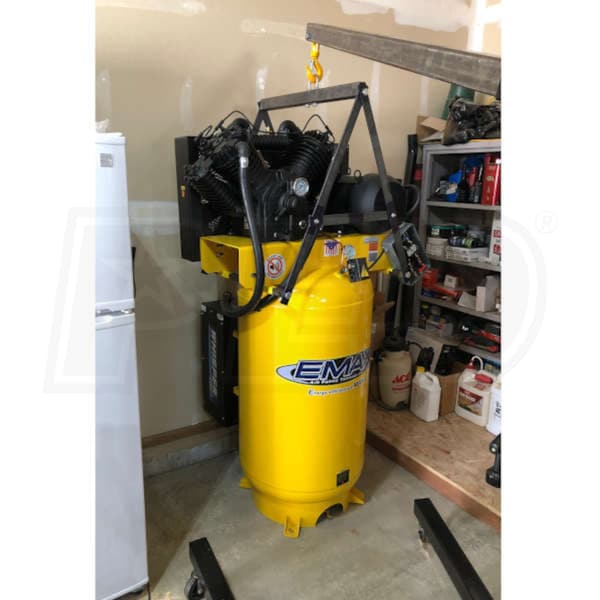

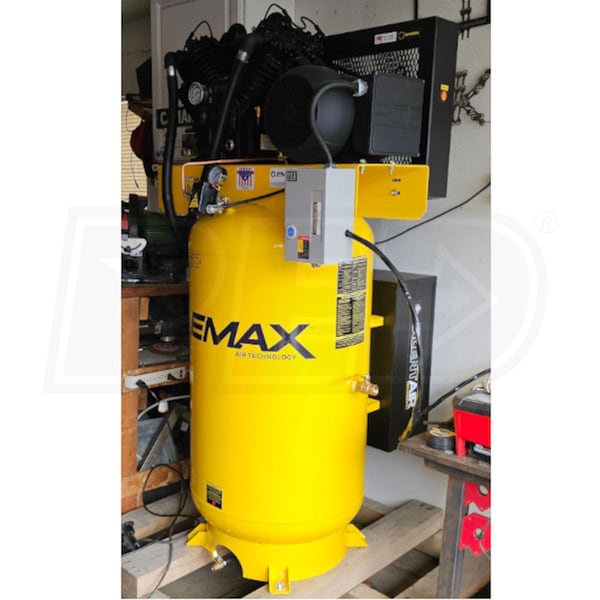

Customer Review Images
