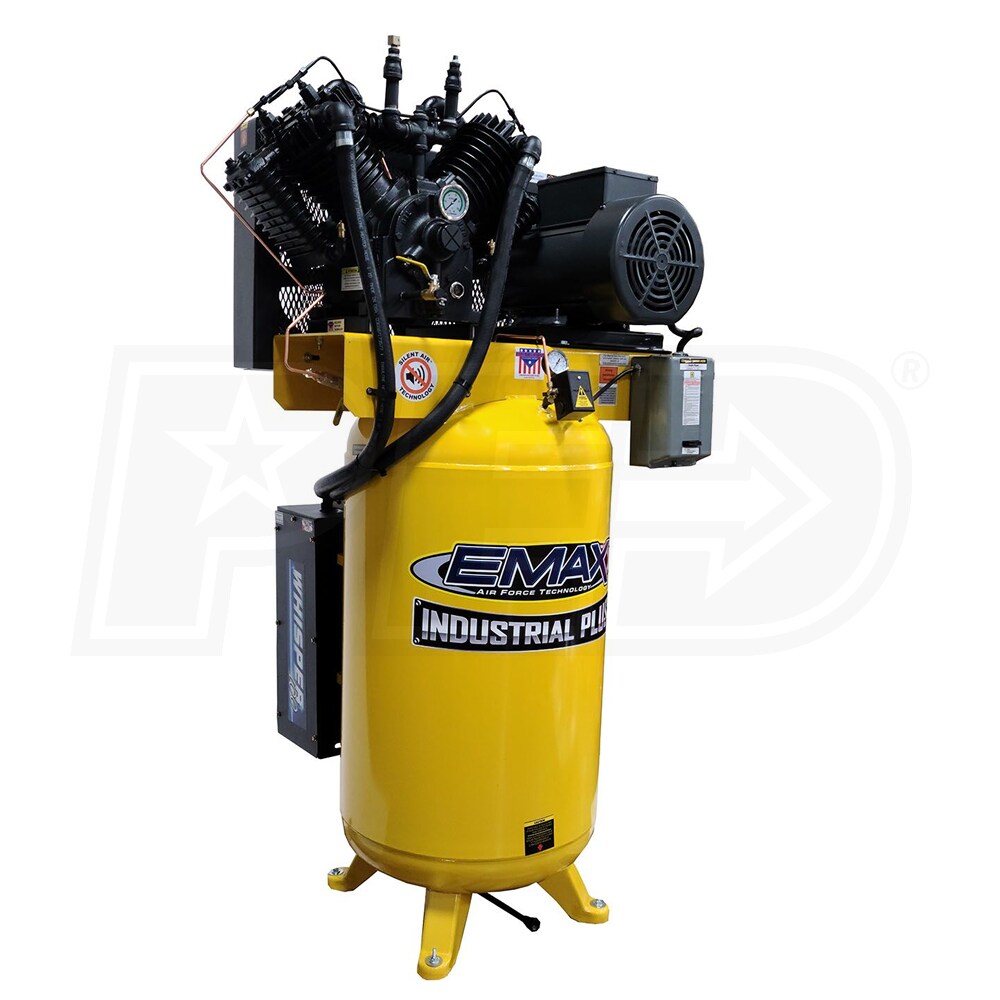

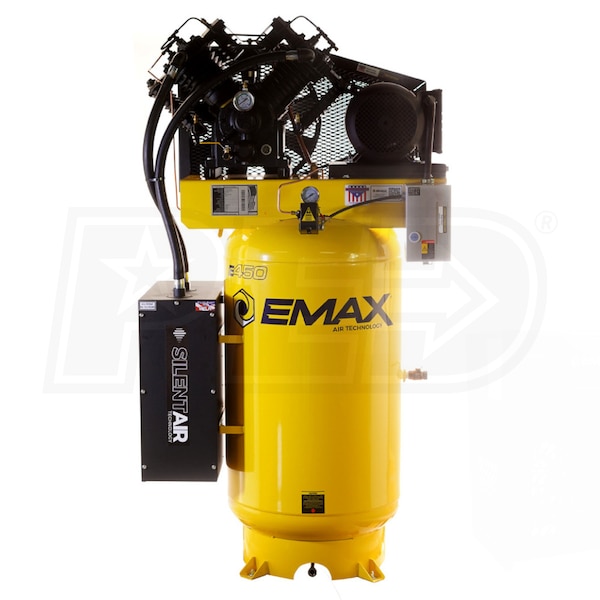

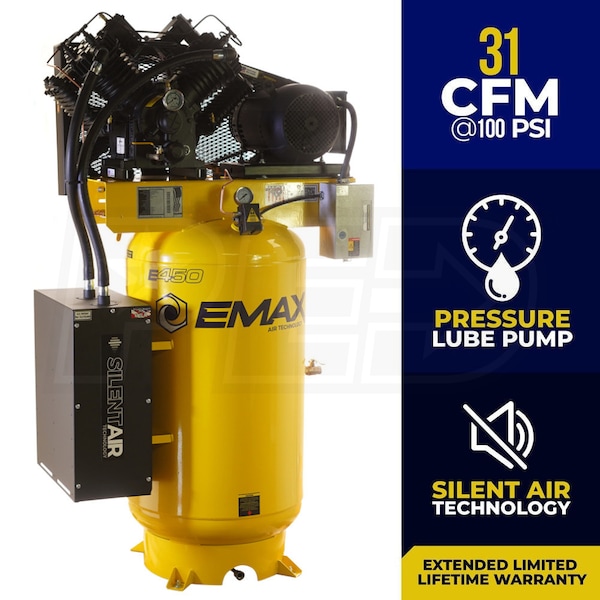

EMAX Industrial Plus Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model:
ESP07V080V1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
31
Tank Size
80

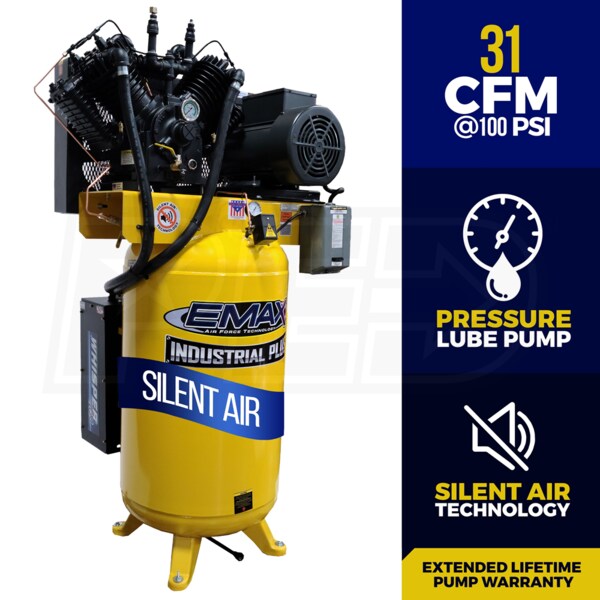

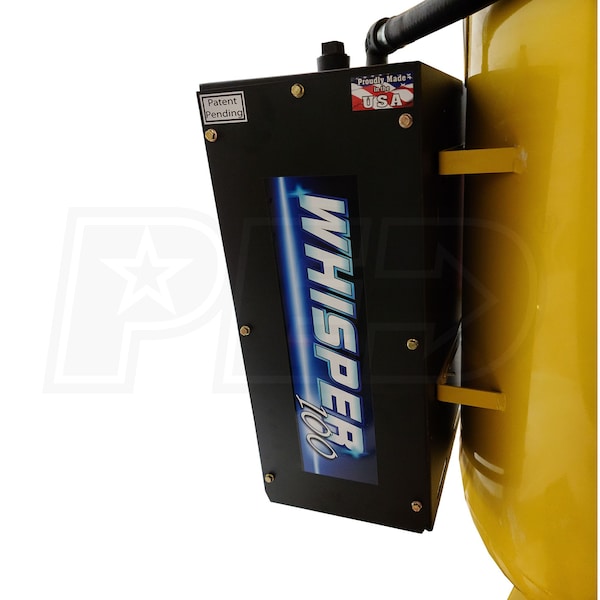

- Patented Silent Air Technology
- Reduces dBA readings by up to 20%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Cast Iron Pump
- Dual control design allows for automatic or continuous run
- Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Air Stream Technology
- Provides 20% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 7.5-HP Industrial Grade 1750 RPM Motor
- Low RPM design extends useful life; 64 Amp startup
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life

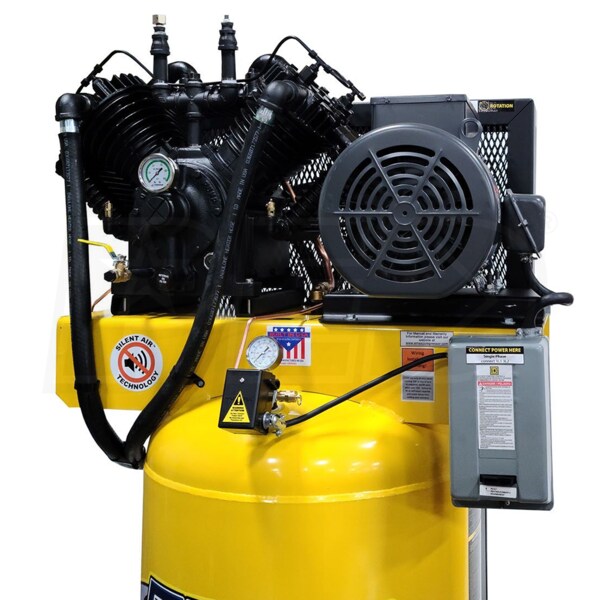

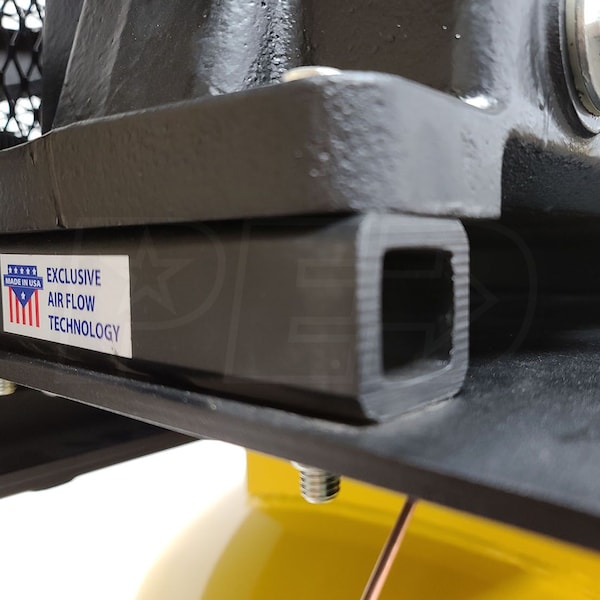

- Raised Pump Mounting Platform (ESP Models Only)
- Pump is raised approximately 2-inches off the mounting base plate
- Allows 100% constant flow of cool air from flyweel fan around pump crankcase
- Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods

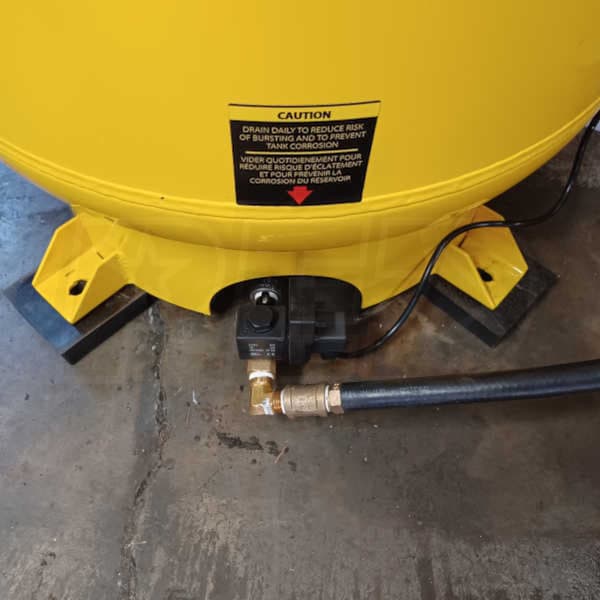

- 80 Gallon Air Tank w/ Auto Drain
- Includes isolation pads to lessen vibration and noise
- 110V timer controlled, eliminates daily maintenance
- 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
- Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ESP07V080V1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase

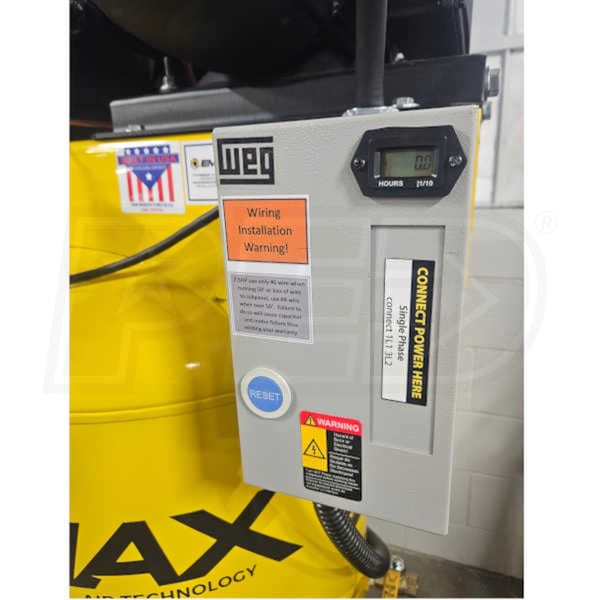

Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
743 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
34 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013190
Reviews
(33)
EMAX ESP07V080V1 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
What is the dB rating for noise output?
Dale
from Minnesota
September 26, 2019
How-To Articles
How To Pick The Perfect Two-Stage Air Compressor
If you've ever worked in manufacturing or visited your local garage, you might ...
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
EMAX Industrial Plus Silent Air 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

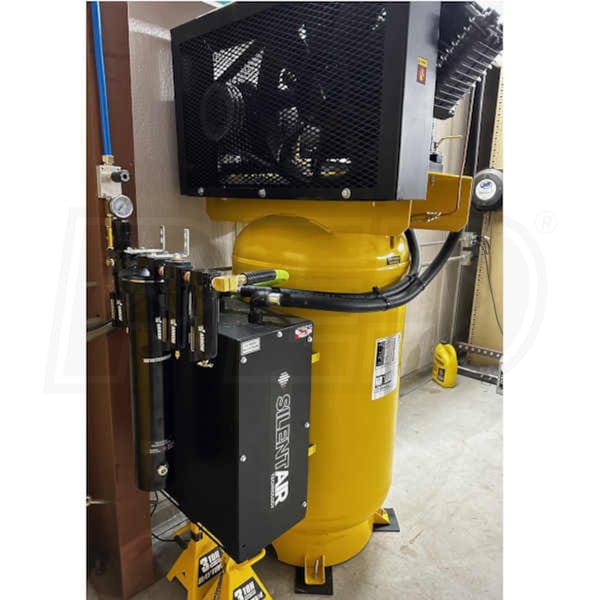

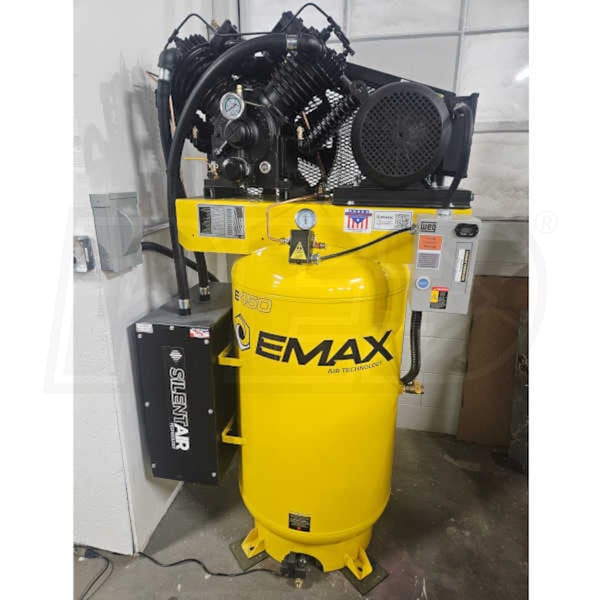

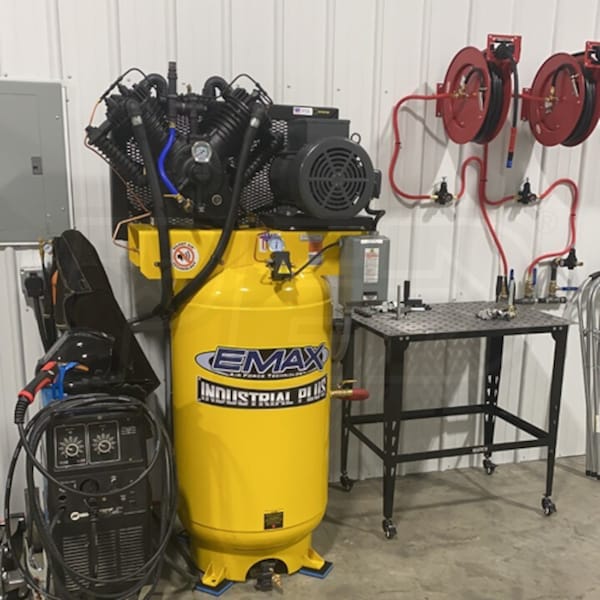

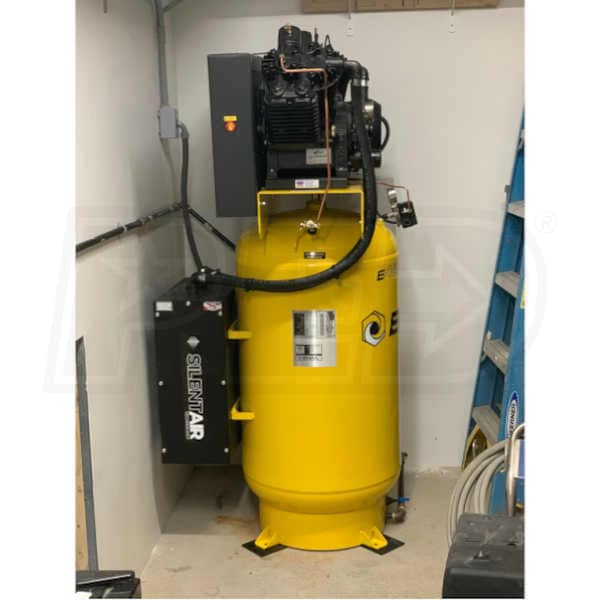

Customer Review Images
