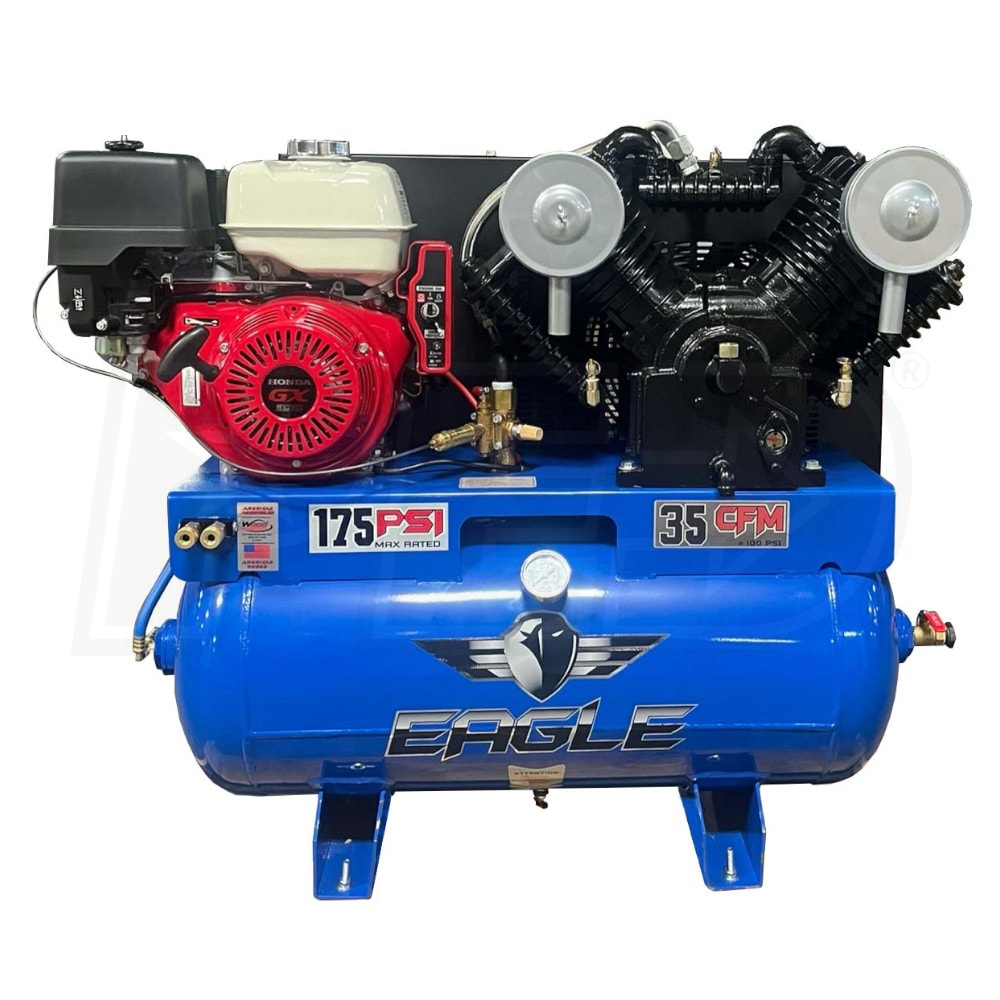

Eagle 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
13G30TRKE-V4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
35
Tank Size
30
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

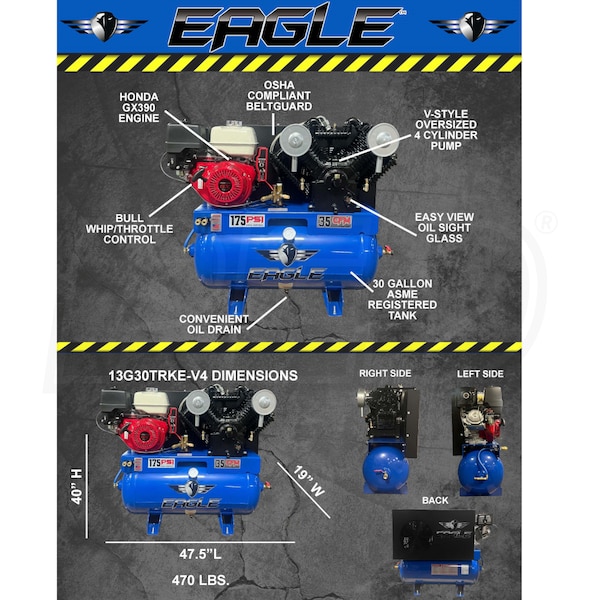

- Heavy Duty Truck Mounted Two Stage Compressor
- Continuous duty where a power cord won't or can't reach
- Built to work hard and last a long time

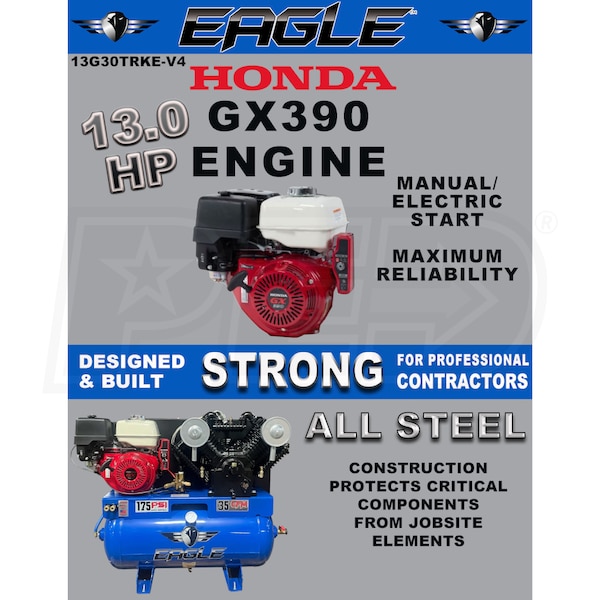

- 13-HP Honda GX390 Commercial Grade Electric Start Engine
- Powerful, high efficiency reed valves and quiet & dependable
- Sturdy metal belt guard protects the belt & the user
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Solid Cast Iron 2-Stage Pump
- Ideal for service trucks & contractors running multiple tools
- Individual removable cylinders for smoother cooler operation & easy maintenance
- Oversized 4 Cylinder Pump
- Allows for lower RPM's and longer compressor life
- Engine Idle Control
- Reduces cost and excessive wear and tear
- 30 Gallon ASME Tank
- Rated to 175 PSI for safety
- Convenient oil drain on front of unit
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Efficient Heat Removal Pulley-Fan
- Provides cooler running and longer life
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle service kit EA-SKG027-X
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
13G30TRKE-V4
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
475 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
20791504228
