FS-Curtis 1" NPT 100 PSI .008 PPM High Efficiency Oil Removal Filter (170 CFM)

Model:

CF5-28-8-DGL

Write A Review
$664.24
Factory-Direct
Ships in 2-5 Business Days

FS-Curtis 1
FS-Curtis 1" NPT 100 PSI .008 PPM High Efficiency Oil Removal Filter (170 CFM)
Model: CF5-28-8-DGL
$664.24
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 3 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids

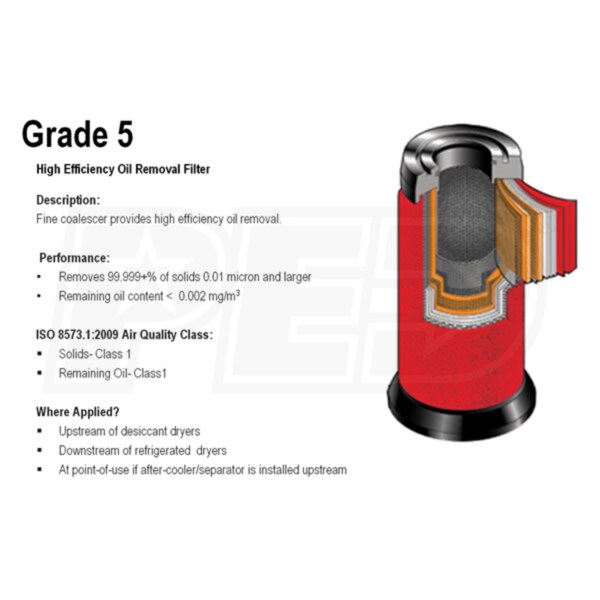

  • Grade 5 General Purpose Two Stage Filter
  • Coalesces & removes oil 99.99+% from air supply
  • Ideal for paint, injection molding, instruments & control valves
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles to 0.01 microns
  • Fits Multiple Applications
  • Handles up to 170 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1 inch NPT fitting (bracket not included)
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CF5-28-8-DGL
specs product image PID-11259
General Information
Product Category
Air Compressor Accessories
Filter
Filter CFM
170
Oil Remover
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Fitting Size
1"
High Efficiency
Yes
Overview
Product Category
Air Compressor Accessories
Weight
6.9 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
20 Inches
