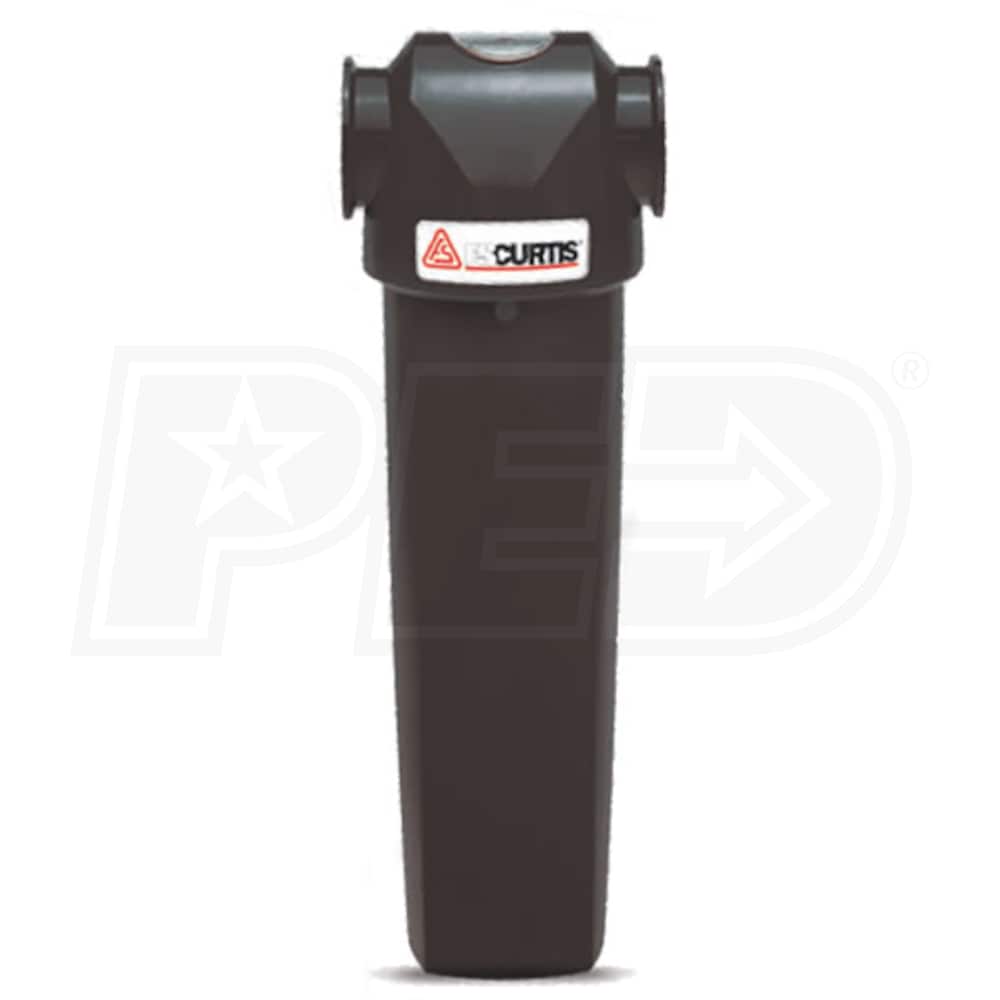

FS-Curtis 1/2" NPT 1 Micron 100 PSI General Purpose Air Filter (35 CFM)

Model:

CF7-16-4-DPL

Write A Review
$285.76
Factory-Direct
Ships in 2-5 Business Days

FS-Curtis 1/2
FS-Curtis 1/2" NPT 1 Micron 100 PSI General Purpose Air Filter (35 CFM)
Model: CF7-16-4-DPL
$285.76
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Optional Accessories 4
$200.99
Factory-Direct
$292.60
Factory-Direct
$1,777.64
Factory-Direct

Features

  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 2 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids

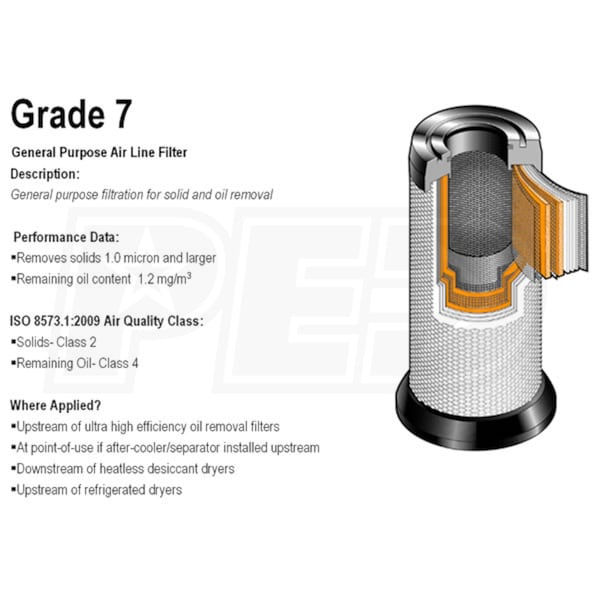

  • Grade 7 General Purpose Two Stage Filter
  • Removes liquid water, oil, & particles to 1 micron
  • Ideal for tools, motors, & cylinders
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles
  • Fits Multiple Applications
  • Handles up to 35 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1/2 inch NPT fitting (bracket not included)
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CF7-16-4-DPL
specs product image PID-11249
General Information
Product Category
Air Compressor Accessories
Filter
Filter CFM
35
General Purpose
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
Overview
Product Category
Air Compressor Accessories
Weight
8.1 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
4 Inches
Product Width
4 Inches
Product Height
11 Inches

Reviews

(1)
FS-Curtis CF7-16-4-DPL Reviews & Ratings
Dale, the Power Equipment Expert
Expert Recommended Review
By Dale V.
Power Equipment Expert
Review Posted 03/01/2018
When even cleaner, drier air is desired, the FS-Curtis 1 micron General Purpose Air Filter removes dirt, oil & water droplets larger than one micron in size. For comparison, a human hair can range from about 20 to 50 microns in diameter. The First Stage alternates layers of fiber media & media screen to capture larger particles. The Second Stage is made of multiple layers of epoxy bonded, blended fiber media to coalesce aerosols and capture solid particles. Several sizes are available depending on the airflow output, CFM, of your compressor. The inlet & outlet NPT fittings are sized to the air flow, CFM, of the filter so there is no restriction or pressure loss.
