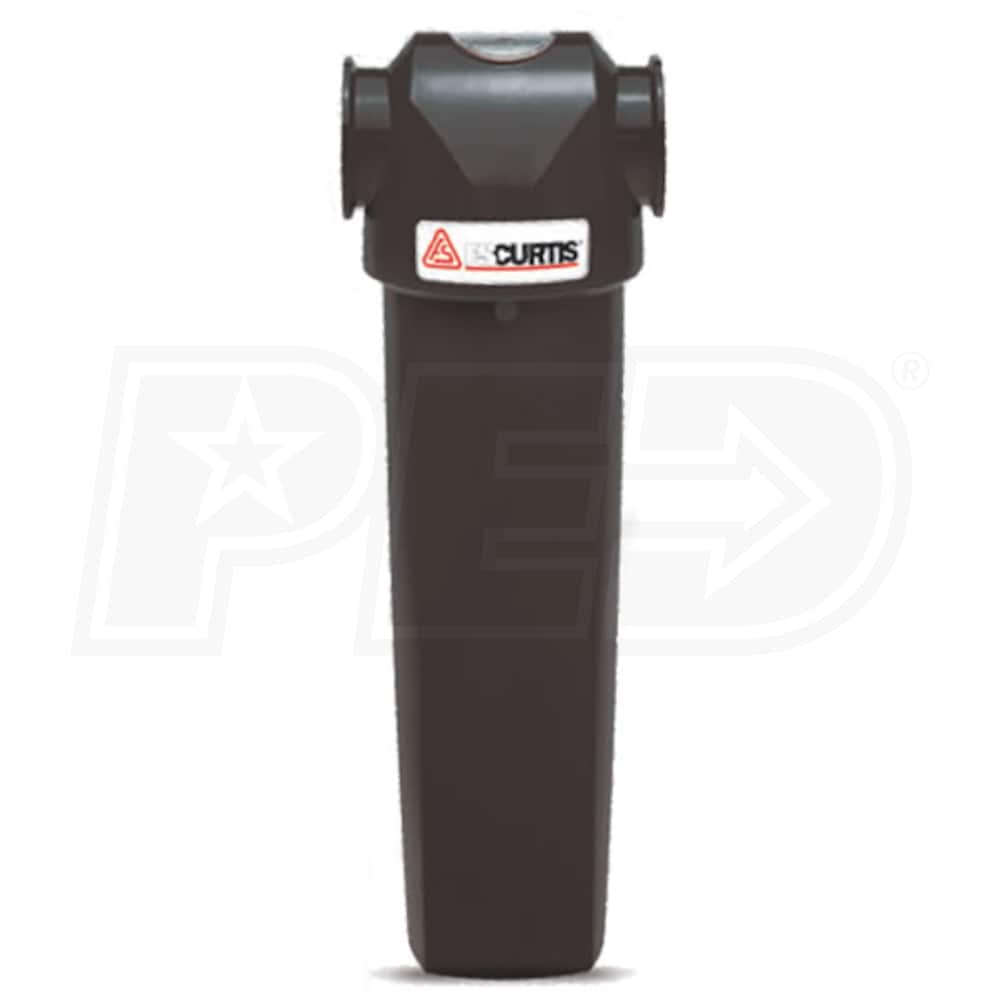

FS-Curtis 100 PSI (1 Micron) General Purpose Air Filter (60 CFM)

Model:

CF7-20-4-DPL

Write A Review
$364.80
Factory-Direct
Ships in 4-7 Business Days

FS-Curtis 100 PSI (1 Micron) General Purpose Air Filter (60 CFM)
FS-Curtis 100 PSI (1 Micron) General Purpose Air Filter (60 CFM)
Model: CF7-20-4-DPL
$364.80
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 2 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids

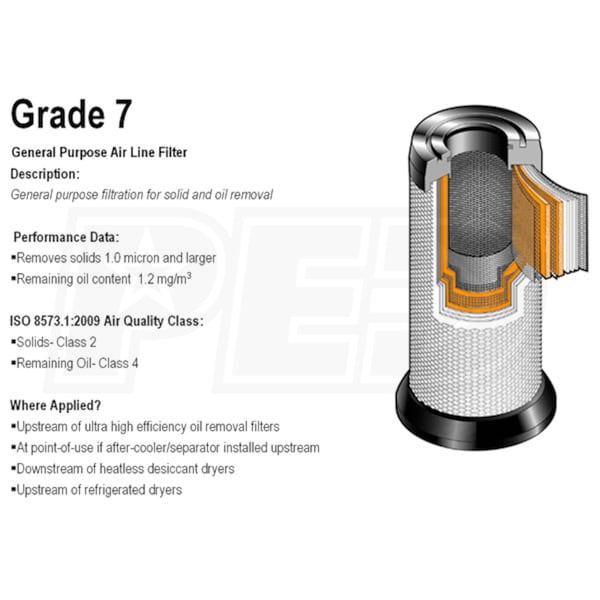

  • Grade 7 General Purpose Two Stage Filter
  • Removes liquid water, oil, & particles to 1 micron
  • Ideal for tools, motors, & cylinders
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles
  • Fits Multiple Applications
  • Handles up to 60 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1/2 inch NPT fitting
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CF7-20-4-DPL
specs product image PID-11250
Filter
Filter CFM
60
Overview
Weight
1080 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
