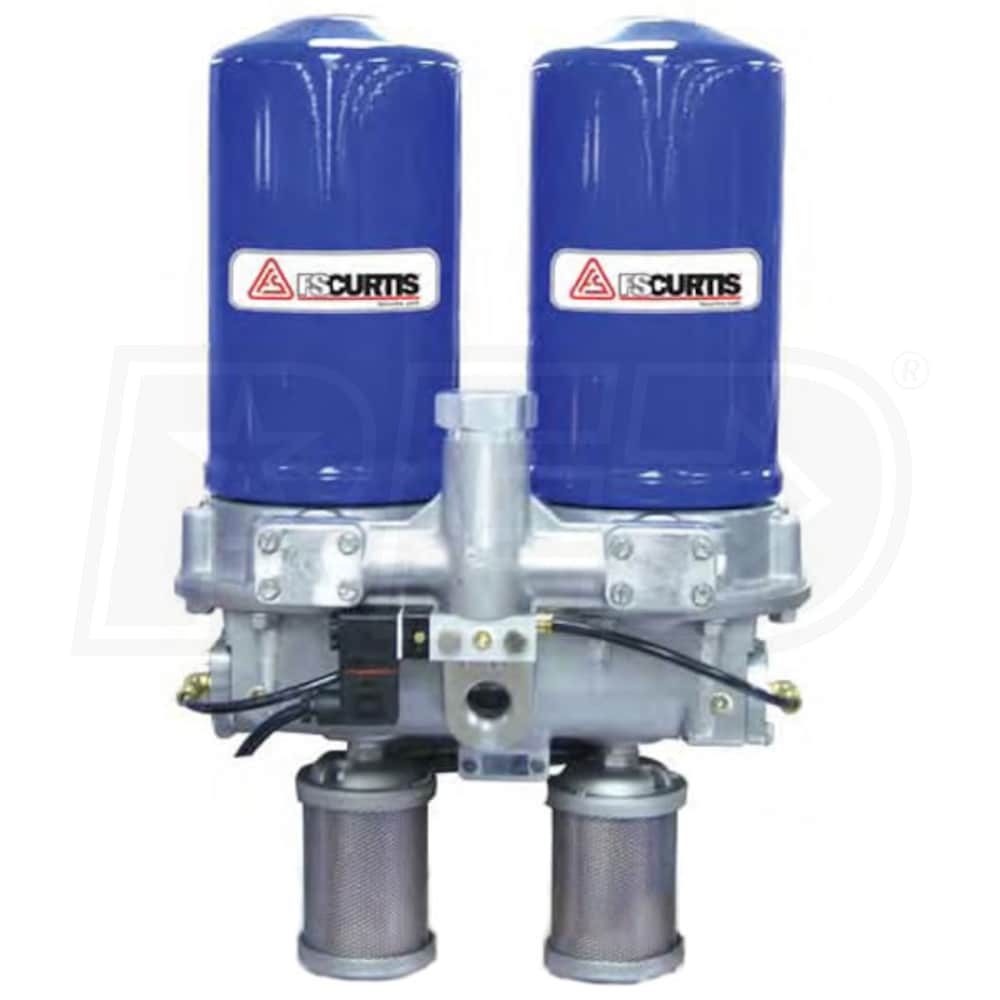

FS-Curtis Twin-Tower Regenerative Molecular-Sieve Desiccant Dryer System (30 CFM)

Model:

DA-230E

Write A Review
$2,490.52
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

FS-Curtis Twin-Tower Regenerative Molecular-Sieve Desiccant Dryer System (30 CFM)
FS-Curtis Twin-Tower Regenerative Molecular-Sieve Desiccant Dryer System (30 CFM)
Model: DA-230E
$2,490.52
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Desiccant

Dryer Voltage

115V 1-Phase

Air Dryer CFM

30
  • Molecular Sieve Desiccant
  • Spin-on canisters mean low operation & maintenance costs
  • Ultra Low Dew Point
  • Compressed air dew points to -40°F
  • Ideal for automotive paint booths & clean rooms
  • Alternative To High Temp Refrigerated Dryers

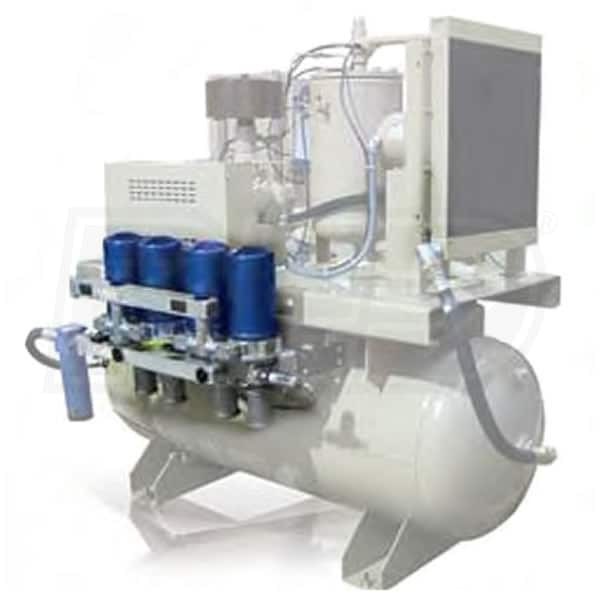

  • Can be mounted on FS-Curtis RS Series compressors
  • Also useful for piston, scroll, rotary vane or rotary screw units
  • Environmentally Friendly
  • Uses no refrigerant; not affected by high ambients
  • Operates uninterrupted in dirty or dusty environments
  • Universal Wall-Mount Brackets

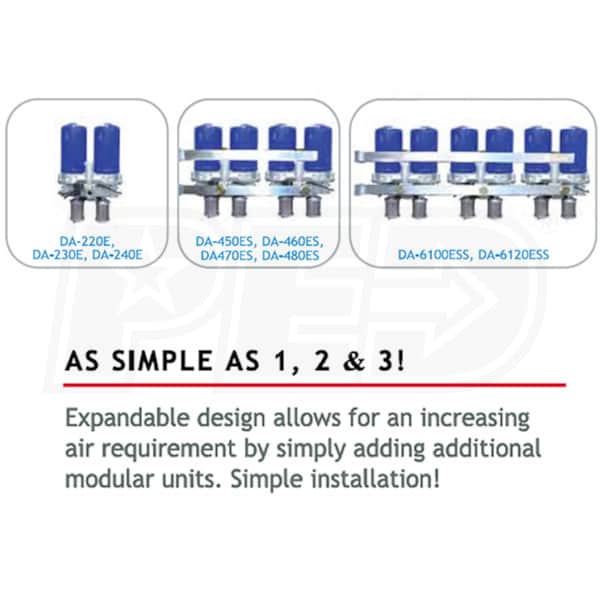

  • Easy to install; compact and expandable
  • Can also be mounted on the compressor
  • Automatic 2 Minute Regeneration Cycle
  • 150°F maximum inlet temperature; 115 volt operation
  • Wall mount requires no aftercooler; 100-175 PSI operating range
  • Includes Mounting Bracket
  • Recommended coalescing pre-filter CF5-16-4DPL
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

DA-230E
specs product image PID-14570
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
30
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
175
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes

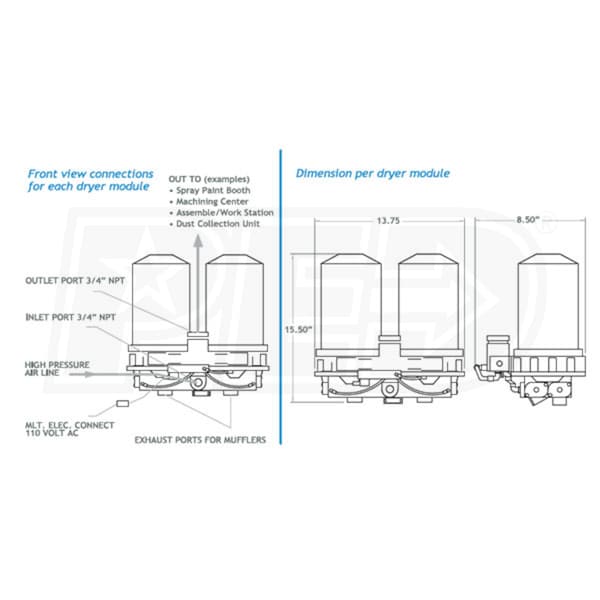

Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
No
Regenerative
Yes
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Product Category
Air Compressor Accessories
Weight
14.75 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
13.75 Inches
Product Width
8.5 Inches
Product Height
15.5 Inches
Power Type
Electric
