Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
50
- Compact Footprint
- Removes maximum moisture in minimum space
- Reliable Performance
- Increases efficiency to get the most from your equipment
- Simple to operate & maintain
- ISO 8573.1 Air Quality Class 4 - 5 Pressure Dew Point
- Delivers clean, dry, consistent-quality compressed air
- Copper Tube On-Tube Heat Exchanger
- Quality components extend service life
- R-134a Refrigerant
- Environmentally friendly
- Flexible Installation
- Requires 115V, single phase power; 3/4" NPT inlet/outlet
- Rated for 50 CFM at 100 PSI to 120°F ambient temperature
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RNP50
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
50
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
250
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
120
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
No
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
101 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
20 Inches
Product Width
20 Inches
Product Height
22 Inches
Power Type
Electric
Reviews
(1)
FS-Curtis RNP50 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

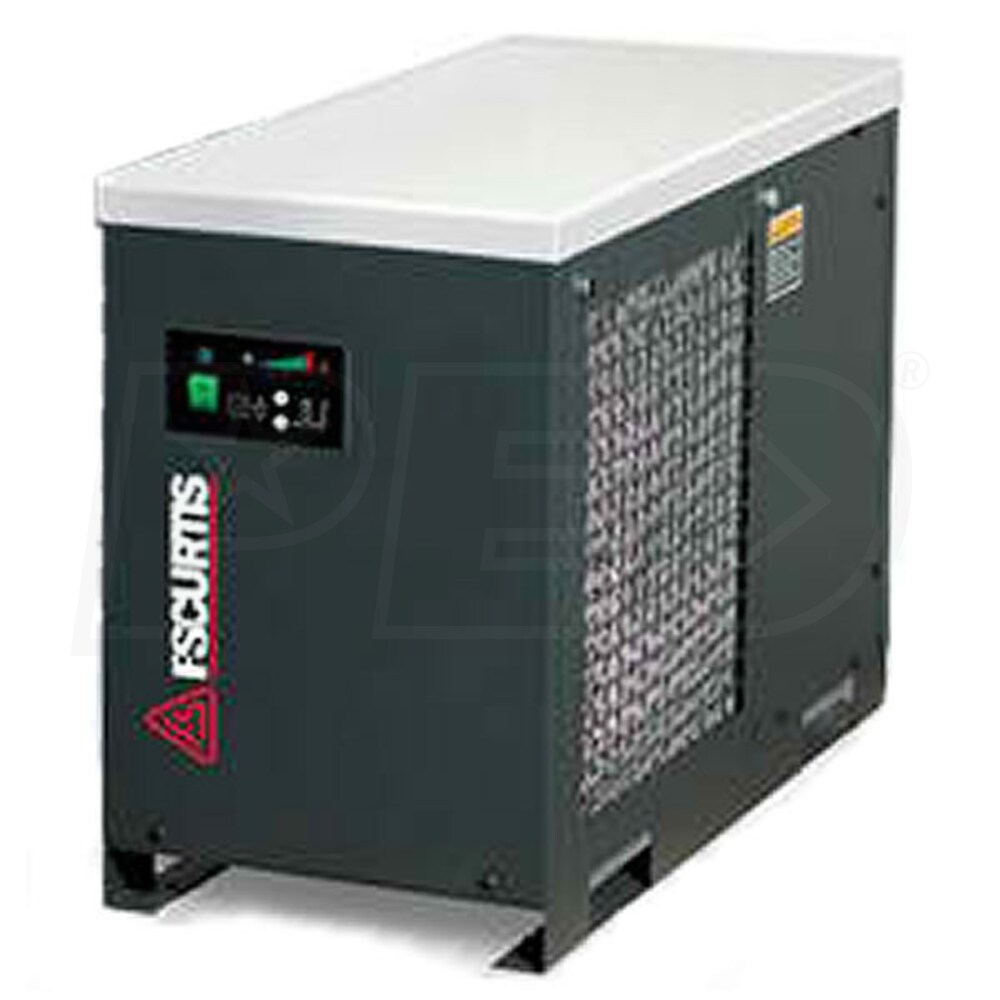

FS-Curtis Standard Non-Cycling Refrigerated Air Dryer (50 CFM)
