Generac RXG16EZA1W
Generac RXG16EZA1W
Hover to zoom
1 Of 5

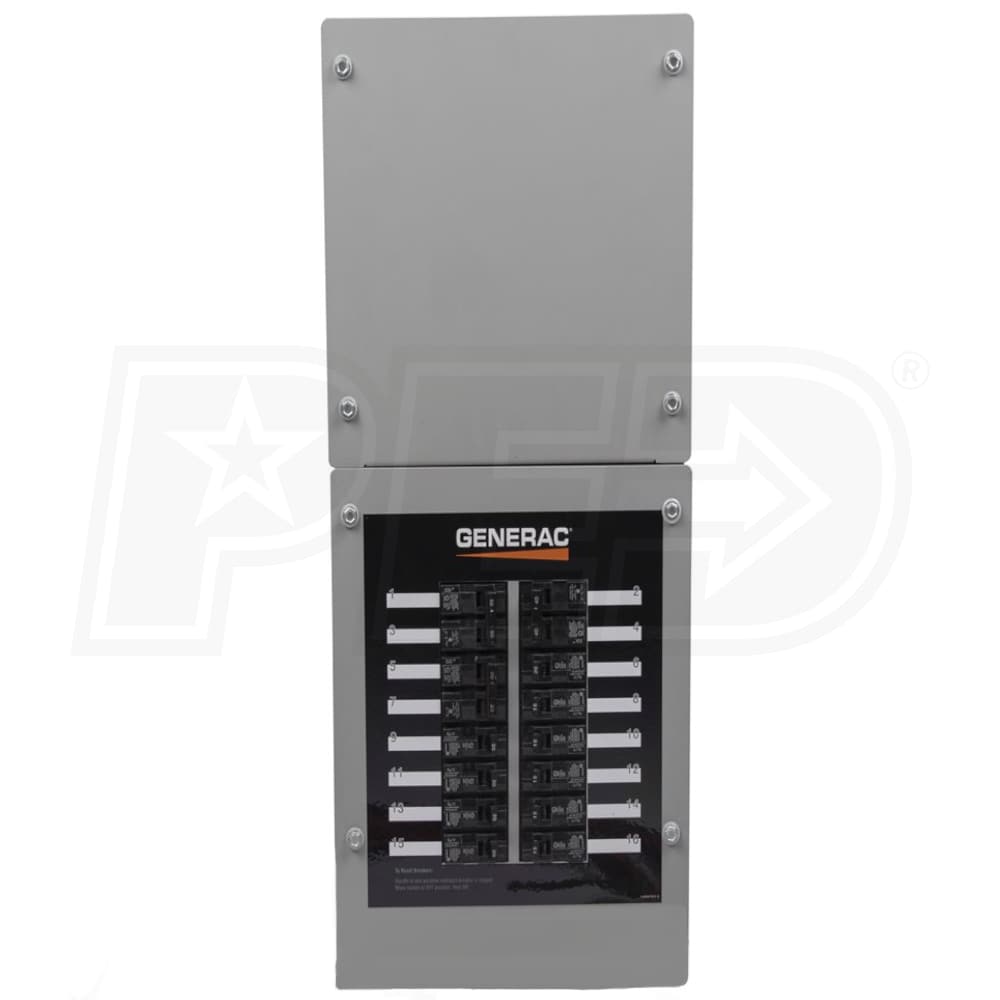

Generac 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model:

RXG16EZA1W

Write A Review
$859.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$144 / Month
Suggested monthly payments with 6 month financing.
Generac 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Generac 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RXG16EZA1W
$859.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Load Center

Amp Rating

100

Circuits

16

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • 100-A Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Generac Automatic Standby Generators Only
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXG16EZA1W
specs product image PID-123379
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Length
27 Inches
Product Width
13 Inches
Product Height
7 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
Transfer Switch Circuits
15A 120V
5
20A 120V
5
20A 240V
1
40A 240V
1
50A 240V
1
Circuit Breaker Protection
Each Circuit
