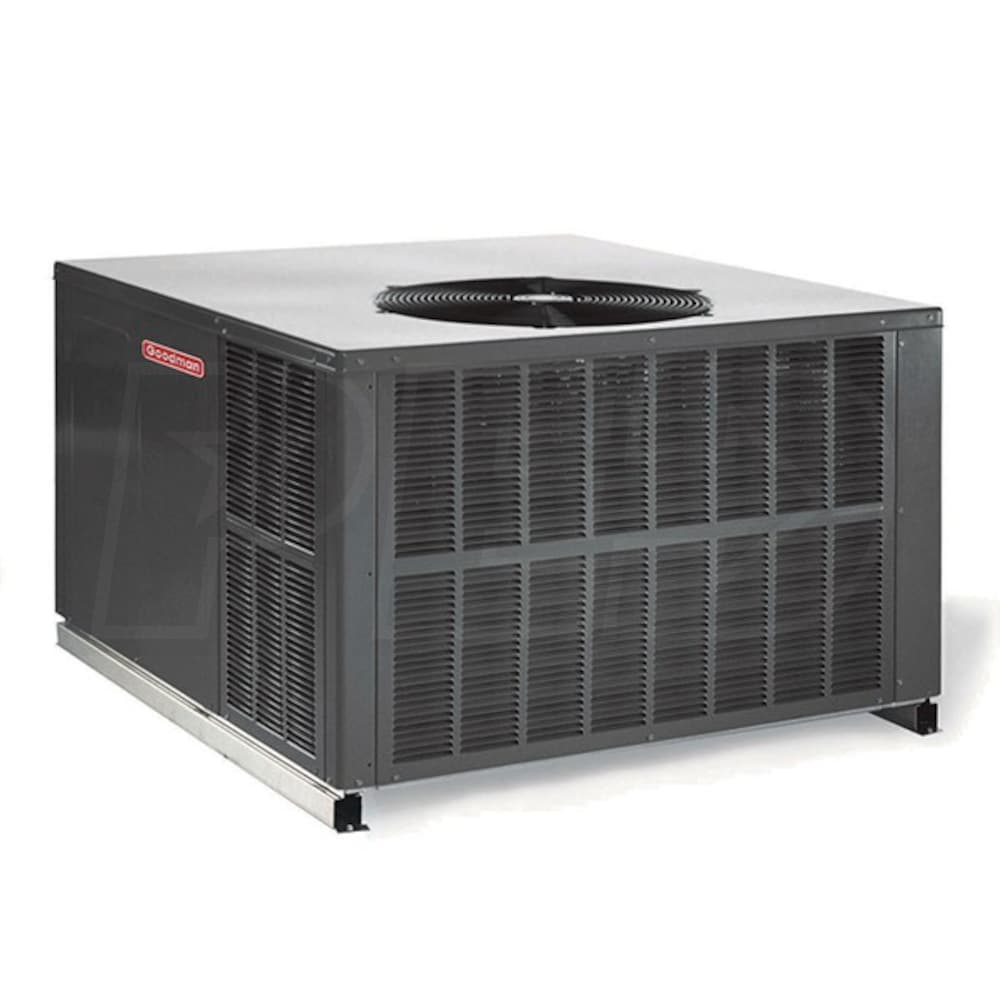

Goodman GPG16M - 4 Ton Cooling - 100,000 BTU/Hr Heating - Packaged Gas/Electric Central Air System - 16 SEER - 81% AFUE - 208-230/1/60

Model:

GPG1648100M41

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GPG16M - 4 Ton Cooling - 100,000 BTU/Hr Heating - Packaged Gas/Electric Central Air System - 16 SEER - 81% AFUE - 208-230/1/60
Goodman GPG16M - 4 Ton Cooling - 100,000 BTU/Hr Heating - Packaged Gas/Electric Central Air System - 16 SEER - 81% AFUE - 208-230/1/60
Model: GPG1648100M41
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential application. The GPG16 is a packaged gas/electric central air system. It combines a gas-fired furnace, air conditioning condenser, evaporator coil, and blower into a single unit. The GPG1648100M41's heat exchanger and coil feature Goodman's superior designs that ensure efficient operations whether your home needs heating or cooling. Replacing your split system with a GPG16 package is a breeze. This unit is equipped for either downflow or horizontal airflow and it features access panels to expedite installation. Streamline your comfort today with this Goodman packaged unit.
  • Aluminized-Steel Heat Exchanger
  • The GPG16's furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
  • Second Stage
  • This unit features a two-stage gas valve to ensure consistent, efficient heating. When the heating demand in your home is low, the furnace will consume less fuel. If more heat is needed, it can just step up to the second stage.
  • Secure Design
  • The cabinet of the GPG1648100M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
  • Filter Drier
  • A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
  • Quiet Comfort
  • A sound insulated blower compartment means that the GPG1648100M41 provides year-round comfort without disrupting your home.
  • Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • ECM Blower
  • PSC blower motors are energy hogs. The ECM motor in the GPG1648100M41 consumes less electricity, ensuring energy-efficient circulation.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The Goodman 20464502PDGK Horizontal Duct Cover Kit is required for downflow installation.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GPG1648100M41
specs product image PID-61987
Overview
Product Category
Packaged HVAC Unit
UPC
663051513167
General Information
Type
Gas/Electric Packaged Unit
Product Line
GPG16
Product Category
Packaged HVAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Gas Conversion Kit
Available
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling Capacity
46000 BTU
Heating Capacity
100000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
2002 CFM
Minimum Air Flow
1130 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
35 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
35 Inches
Product Width
66 Inches
Product Depth
34 Inches
Product Weight
400 Pounds
Shipping Weight
410 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8082386
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Compressor Warranty
Limited* 10 Years
