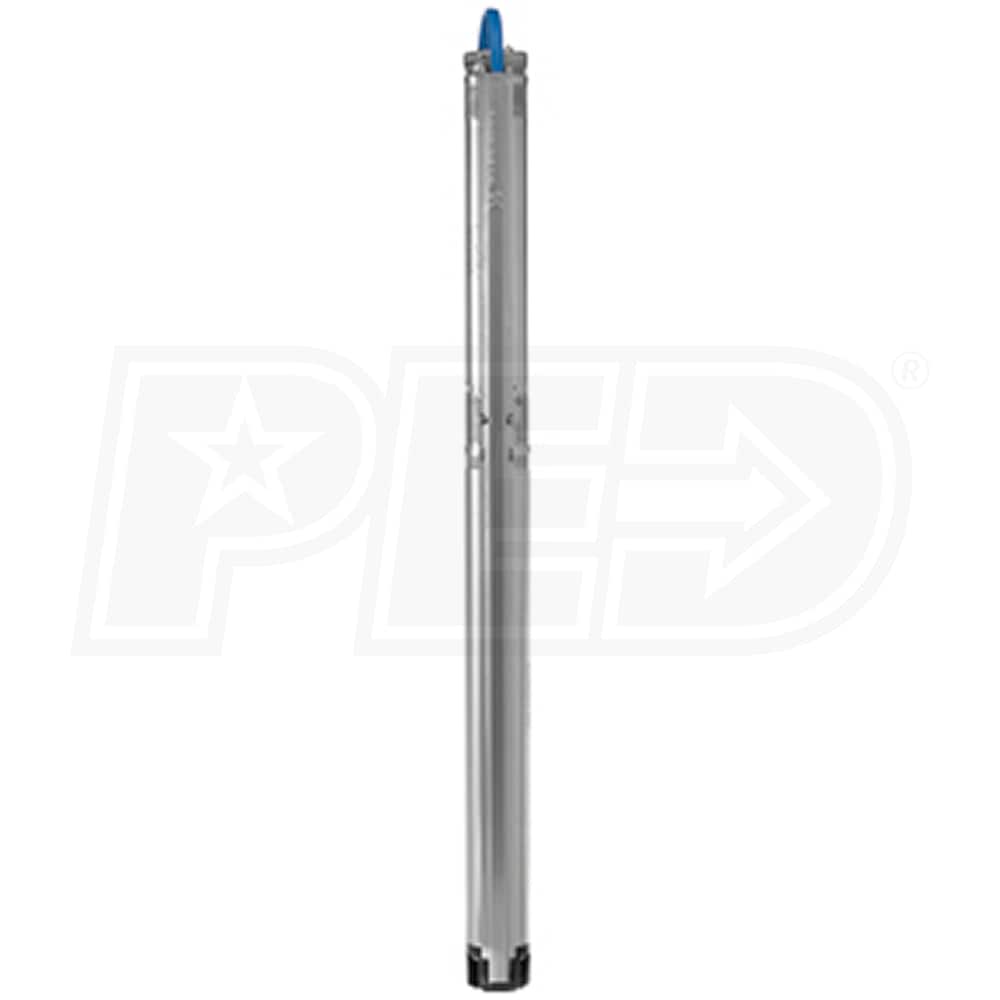

Grundfos 15SQE15-290 - 15 GPM 1-1/2 HP SQE-Series Deep Well Submersible Pump (290' Rated Head) (2W - 200-240V)

Model:

96160195

Write A Review
Grundfos 15SQE15-290 - 15 GPM 1-1/2 HP SQE-Series Deep Well Submersible Pump (290' Rated Head) (2W - 200-240V)
Grundfos 15SQE15-290 - 15 GPM 1-1/2 HP SQE-Series Deep Well Submersible Pump (290' Rated Head) (2W - 200-240V)
Model: 96160195
Call 1 (800) 710-7499 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 2-5 Business Days
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

15 Gallons

  • Grundfos 15SQE15-290 - SQE Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 15 GPM @ 290' Head Lift
  • Please see documents for sizing / pump curve information
  • *Requires Grundfos CU 301 Constant Pressure Kit (Not Included) (Model 96438895)
  • Constantly adapts pump performance to meet the demand for water
  • Can provide constant water pressure from 40 -100 PSI
  • 1-1/2 HP Stainless Steel Grundfos "Smart Motor" (2-Wire - 200-240V)
  • Variable-speed, electronically controlled, communicates with CU 301 status box
  • Highly-efficient Permanent-Magnet (PM) design w/ Thermal overload protection
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection & Overtemperature Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • 2-Year Warranty

Specifications

96160195
specs product image PID-80388
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
12.3
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
485 Feet
Discharge Port Size
1-1/4 Inch
Submersible
Yes
Series
SQE
Engine
Horsepower
1.5 HP
Overview
Product Category
Water Pump
Weight
16 Pounds
Consumer Warranty
2 Years
Product Length
38.2 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
