Features
- BF5 Portable Outboard Motor w/ 20" Transom
- 4-stroke design for superior fuel efficiency, with no oil mixing
- Water-cooled, single cylinder design for better low- to mid-range power
- Low vibration for a comfortable ride
- Digital CD Ignition For Quick & Easy Starts
- Ideal for small tenders, sailboats, jon boats, and skiffs
- Large Capacity Internal Fuel Tank
- 1.5L fuel tank provides enough fuel for over 40 minutes of wide open throttle
- Precise Twist-Grip Throttle Control
- Throttle tensioner minimizes driver fatigue
- Dependable And Compact
- Easy to transport (60 pounds)
- Includes a front mounted carrying handle
- Tiller folds up or down for easy stowing
- Low Oil Warning System
- Protects the engine from severe damage
- F-N-R Gearshift
- Forward, neutral, and reverse shifting
- A safety lockout system allows the engine to be started in neutral gear only
Optional 6-Amp Charging System Is Sold Separately - Must Be Installed By A Dealer - Transferable Warranty! 3 Years for Non-Commercial/Non-Rental. 1 Year for Commercial/Rental. 1 Year for Government Agencies.
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
BF5DHLHNA
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
5
Engine Displacement
127 CCs
Bore & Stroke
2.4 x 1.8 Inches
Full Throttle RPM Range
4,500-5,500
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Under Water, Above Propeller
Power Tilt
No
Tilt Range
70 °
Power Thrust
No
External Fuel Tank
No
Power Trim
No
Trim Range
5 Stage: 5 -9 -13 -17 -21
Fuel
Unleaded 86 octane
Fuel Tank Capacity
.39 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.56 US qt. (18 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
20 Inches
Overview
Product Category
Outboard Motor
Weight
60 Pounds
Consumer Warranty
5 Years
Product Width
13.66 Inches
UPC
786102006170
Additional Model Numbers
BF5LHNA, BF5DHLHNA
Reviews
(10)
Honda Marine BF5DHLHNA Reviews & Ratings
Customer Rating
4.60
(10 Ratings)
5
(8)
(8)4(0)
(0)3(2)
(2)2(0)
(0)1(0)
(0)Great!!
By Ray J.
Oregon
Review Posted 09/07/2022
Great!!
Ray J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Sweet Little Motor
By Timothy G.
Washington
Review Posted 07/26/2022
The motor showed up in perfect condition and it does exactly what I wanted. I purchased this for my 9’ inflatable dinghy and we use it for our dinghy for boat camping and crabbing.
Timothy G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Id Buy It Again, Easy To Store
Cons:
None
On Time Delivery, Quality Product
By Attila M.
Rhode Island
Review Posted 07/07/2022
Quickly delivered without any fuss...
And a great product ready to use just add your oil.
And a great product ready to use just add your oil.
Attila M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Id Buy It Again, Easy To Store
Cons:
None
Great Motor For A Small ⛵️ Sailboat
By Randy O.
Eufala, Oklahoma
Purchased 09/11/2021 |
Review Posted 10/14/2021
I purchased the 5 HP Honda motor for a small 15 ft sailboat. I was replacing another brand & smaller motor. The reviews that I read prior to purchase were very good with many complimenting the quietness of the motor. Their assessments were very accurate. Great motor.
Randy O. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Quiet, High Quality
Great Motor
By Don R.
Omaha, Nebraska
Purchased 07/13/2021 |
Review Posted 10/01/2021
This a great little motor. Starts easily and runs smoothly. We have had 0 issues with it.
Don R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Id Buy It Again, Easy To Use
The Best Outboard I've Ever Owned
By Kevin C.
Columbus, Ohio
Purchased 04/12/2021 |
Review Posted 05/07/2021
It's a quiet running motor. Very efficient on gasoline as well.
Kevin C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Price, Id Buy It Again
This Is A Great Product
By Francis M.
Fernandina Beach, Florida
Purchased 02/05/2021 |
Review Posted 04/18/2021
I purchased the 5 HP Honda outboard motor to back up my main engine because I usually go fishing alone in my boat. I tried it out, and it works perfectly. It starts easily and is very reliable, which makes me not worry about getting home.
Francis M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Reliable, High Quality, Id Buy It Again
Cons:
None
There’s Hope After All
By Richard J.
Tucson, Arizona
Purchased 03/10/2021 |
Review Posted 04/13/2021
I have corresponded with customer service at PED, namely Debbie and Dale. They were both extremely helpful, and very apologetic for the issues that I am having with the new Honda BF5D outboard motor. Dale located a local mechanic for me who recognized the problem and can readily fix it. Now, I just need to get authorization from Honda. Apparently, the carburetor needs an adjustment to compensate for the higher elevation here in Arizona. 🤞I will update the outcome when available.
Richard J. Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
3/5
Problem From Get Go
By Richard J.
Tucson, Arizona
Purchased 03/10/2021 |
Review Posted 04/10/2021
The motor starts missing when accelerating beyond 60%. It won’t reach full rpm or full speed. So far, every avenue that I’ve perused in getting this resolved has come up short. Very disappointing!!
Richard J. Does Not Recommend This
Was this review helpful?
Expert Response
Good morning Richard,
Thank you for taking the time to provide us with your feedback and we can certainly understand your aggravation. Please, give us a call so we can help troubleshoot your motor! We will see what we can do for you.
We appreciate your business very much and hope to work with you in the future.
Thank you for taking the time to provide us with your feedback and we can certainly understand your aggravation. Please, give us a call so we can help troubleshoot your motor! We will see what we can do for you.
We appreciate your business very much and hope to work with you in the future.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
4/5
1/5
4/5
Silver Bullet In The Pandemic
By Willy H.
Camano Island, Washington
Purchased 10/19/2020 |
Review Posted 03/19/2021
I bought this as a kicker for my fishing boat. It's simple to operate. All aspects of this engine are manual and direct. This is an outstanding product for the function it will perform.
Willy H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, Light Weight, High Quality
Cons:
Packaging
How-To Articles
Manuals
%20Shaft%20Gas%20Powered%20Outboard%20Motor%20%7C%20Honda%20Marine%20BF5DHLHNA&p[url]=https%3A%2F%2Fwww.powerequipmentdirect.com%2FHonda-Marine-BF5LHNA-Engines%2Fp72662.html&p[summary]=The%20Honda%205%20HP%20(20-Inch)%20Shaft%20Gas%20Powered%20Outboard%20Motor%20BF5DHLHNA%20has%20been%20discontinued.&p[images][0]=https%3A%2F%2Fwww.powerequipmentdirect.com%2Fproducts-image%2F500%2FBF5SHNA_72661_1000.jpg){kind=link}
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

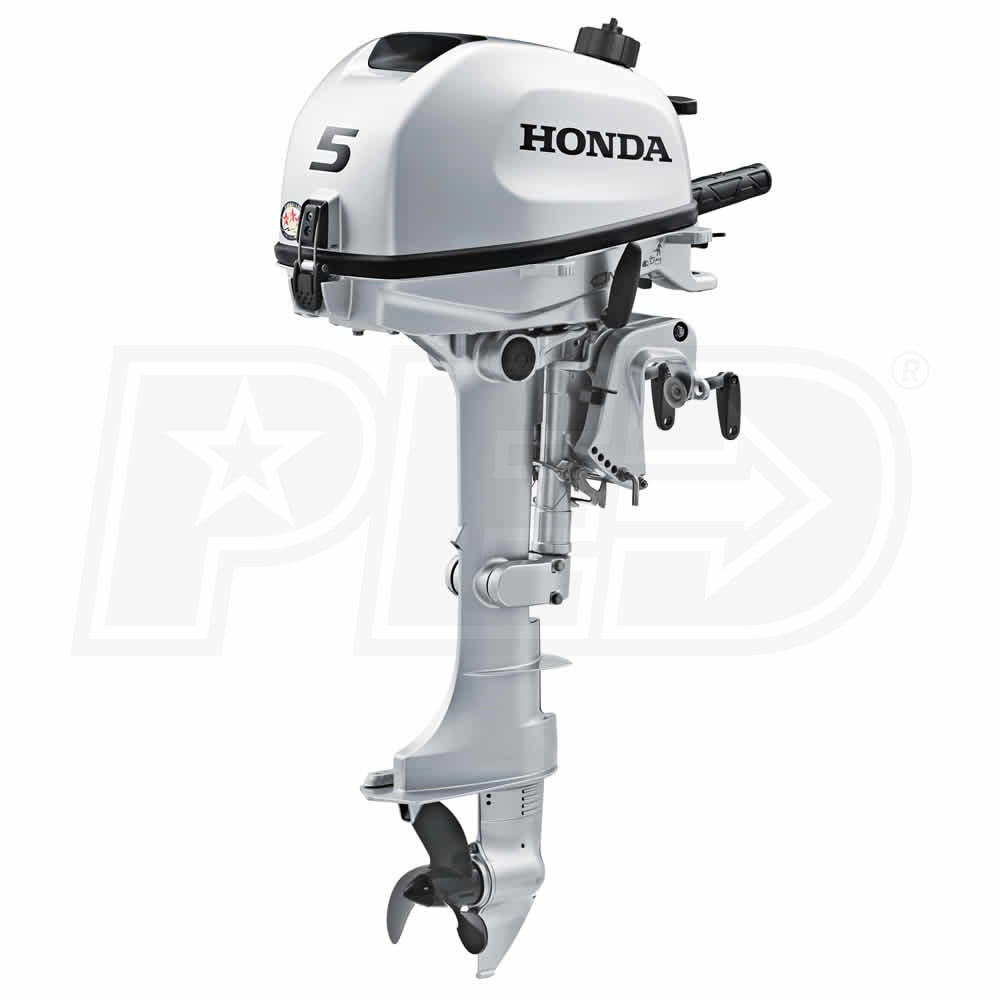

Honda 5 HP (20") Shaft Gas Powered Outboard Motor
