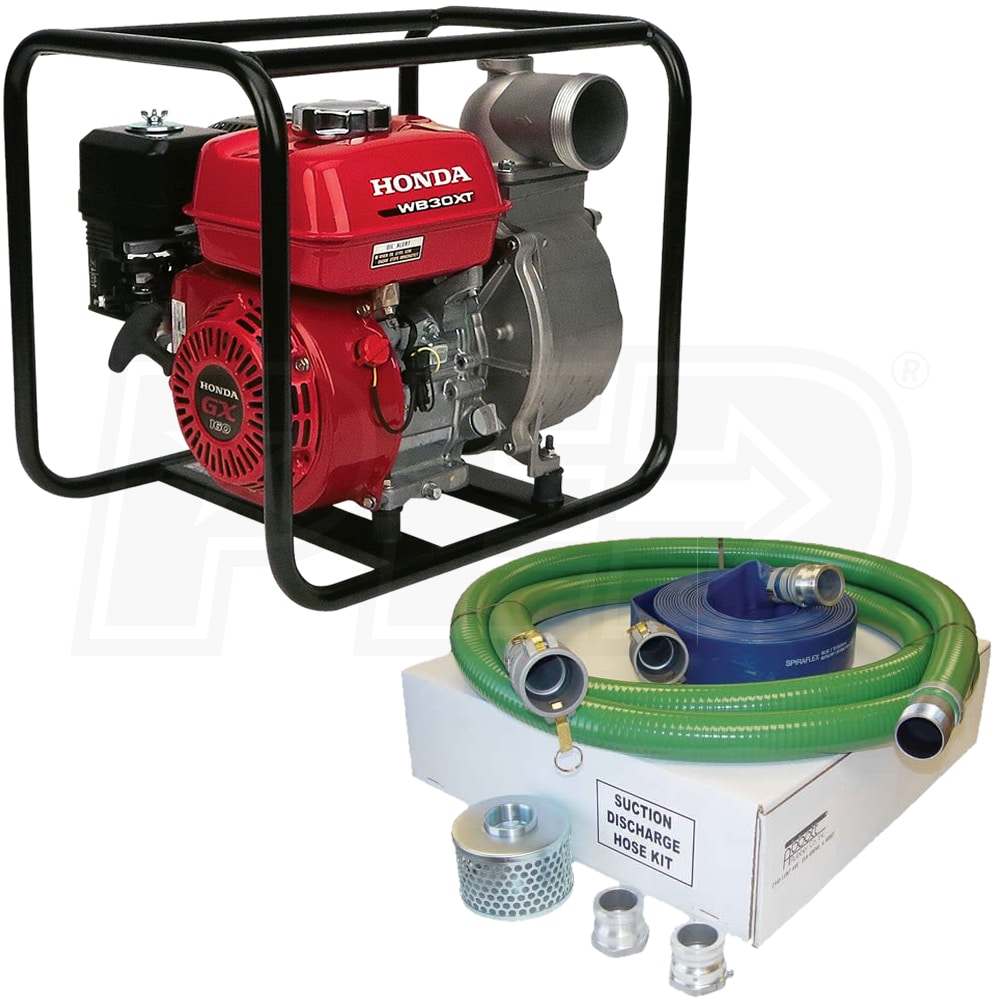

Honda WB30XT3A - 290 GPM (3") Water Pump w/ Hose Kit

Model:

WPD-WB30-KIT

Write A Review
$1,059.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 20th
Shipping to60601

Honda WB30XT3A - 290 GPM (3
Honda WB30XT3A - 290 GPM (3") Water Pump w/ Hose Kit
Model: WPD-WB30-KIT
$1,059.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3 Inch

Style

Dewatering

GPM

290 Gallons

Engine

Honda GX

  • 3" General Purpose Water Pump w/ Hose Kit
  • Centrifugal, self-priming design
  • Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
  • Reliable, technologically advanced & easy to start
  • Provides excellent torque & fuel efficiency
  • Protected By Honda Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Helps to prevent engine seizure due to a low oil condition
  • Improved 4-Vane Cast Iron Impeller & Volute
  • Provides enhanced durability against wear & tear
  • Silicone-Carbide Seals
  • Abrasion-resistant designed for extended wear
  • Isolation Mounted Engine & Pump
  • Rubber feet minimize vibration for quieter operation
  • Heavy Duty Full Frame Protection
  • Protects the pump and engine on all sides
  • EPA Approved & CARB Compliant
  • 3-Year Residential & Commercial Warranty

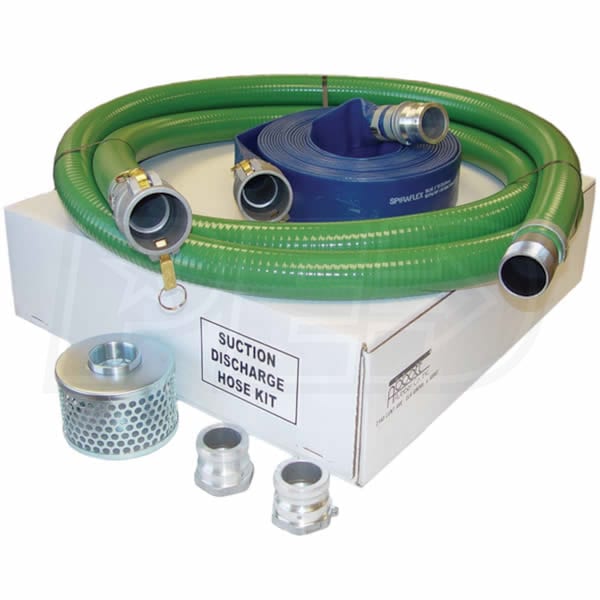

  • Includes Honda 3-Inch Water Pump Hose Kit
  • With Camlock "Quick-Connect" Couplers
  • Kit Includes:
  • 3" x 20' Semi-Rigid Suction Hose
  • 3" x 50' PVC Discharge Hose
  • 3" Strainer (3/8" Round Holes)
  • Camlock Fittings & Pipe Nipple (Includes Male Adapter)
  • Product Includes

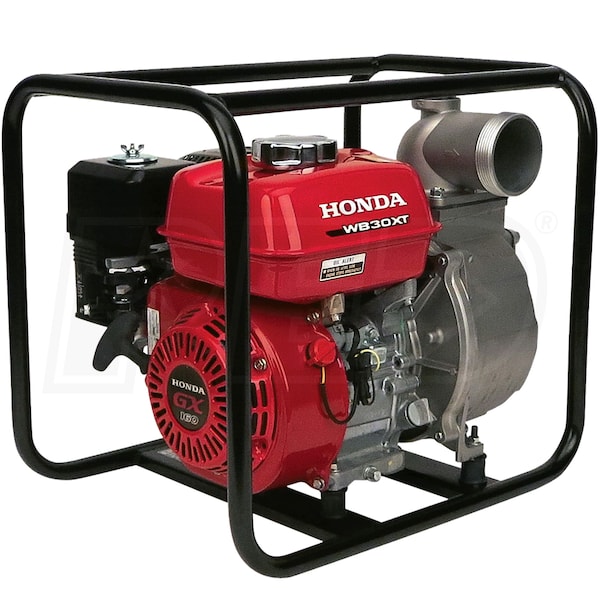

    • (1) Honda WB30XT3A - 290 GPM (3") Water Pump (WB30)
    • (1) Honda 3" Water Pump Hose Kit w/ Quick-Connect Couplers (124030-1145-CLKT)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Honda WB30XT3A - 290 GPM (3") Water Pump (WB30)
  • (1) Honda 3" Water Pump Hose Kit w/ Quick-Connect Couplers (124030-1145-CLKT)
WPD-WB30-KIT
specs product image PID-106719
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
290 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
37

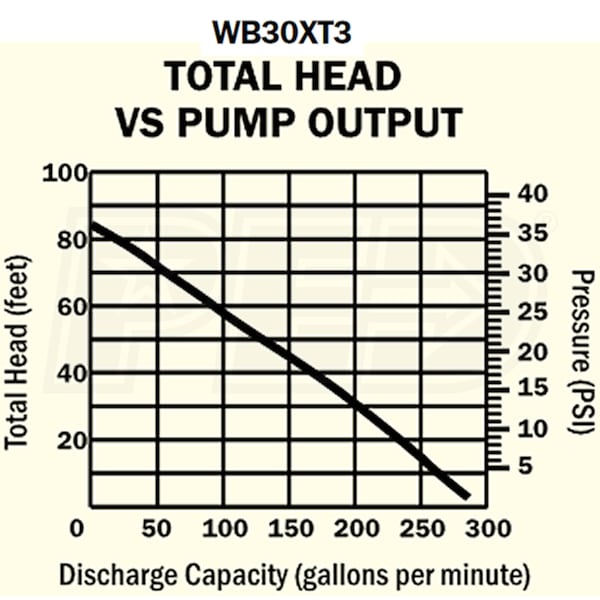

Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
CC
163 cc
Fuel Tank Size
0.875 Gallons
Consumer Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
57 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.1 Inches
Product Width
15.2 Inches
Product Height
17.9 Inches
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
Yes
Hose
Yes
Hose Bands
No
Transport Handle
Yes
Wheel Kit
No
WB30XT3A
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
290 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
37
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Low Oil Shutdown
Yes
Engine Cycles
4-Cycle
CC
163 cc
Fuel Tank Size
0.875 Gallons
Consumer Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
57 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.1 Inches
Product Width
15.2 Inches
Product Height
17.9 Inches
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
124030-1148-CLKT
General Information
Product Category
Water Pump Accessories
Pump
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Overview
Product Category
Water Pump Accessories
Weight
75 Pounds
Accessories
Strainer
Yes
Hose Couplings
Yes
Hose
Yes
