Features
Inlet Size
N/A
Style
Trash
GPM
150 Gallons
- Submersible Trash Pump
- Easily handles leaves, debris, and solids up to 2"
- 1-HP 11.1-Amp Motor (47-Amp Starting)
- Continuous duty rated, capable of pumping 9000 GPH @ 0'
- Stainless Steel Casing
- Lightweight & durable design resists corrosion
- Built-In Thermal Protection w/ Automatic Reset
- Turns off the power supply in case of overload
- Non-Mercury Float Switch
- Provides reliable automatic operation
- Single Channel Stainless Steel Impeller
- Heavy duty design built to pass solids
- Tandem Mechanical Carbon/Ceramic Seals
- Extends the useful life of the pump
- 25' Cord
- Heavy duty design built to withstand the elements
- 1-Year Residential & Commercial Warranty
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
WSP100AA
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
11.1
Power Cord Length
25 Feet
Pump
Gallons Per Minute
150 Gallons
Outlet Diameter
2 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Stainless Steel
Impeller Material
Stainless Steel
Solids Handling Size
2 inch
Handles Solids
Yes
Maximum PSI
18

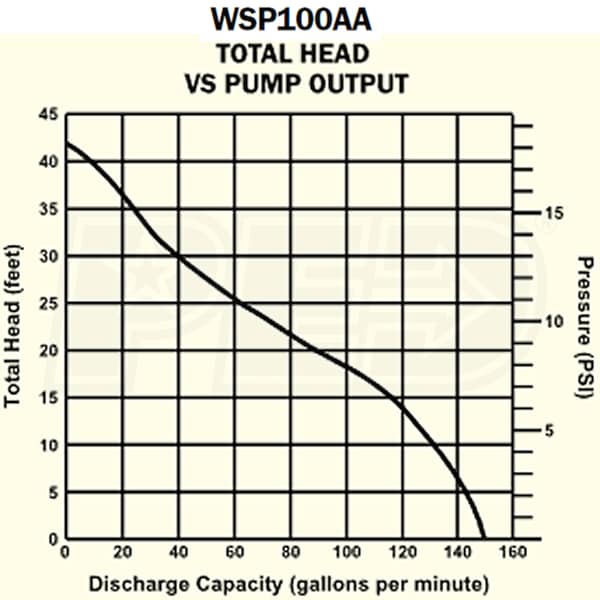

Total Head Lift
42 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
41 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Width
9 Inches
Product Height
22.8 Inches
UPC
786102002516
Additional Model Numbers
WSP100, WSP100AA
Accessories
Float Switch
Yes
Reviews
(30)
Honda WSP100AA Reviews & Ratings
Product Q&A
(6)
Product Questions
Answered by Jim, the Water Pump Expert
Is the discharge threaded?
Douglas
from Florida
October 24, 2020
Will a 20-amp circuit handle this pump?
Michael F.
from Florida
May 08, 2018
Can this pump handle small debris in heavy rain and flooding with a 5 gallon basin?
Dave R.
from Alabama
February 07, 2017
what temp is this pump rated for
Tim P
from California
October 08, 2013
What is the measurement in inches from the bottom floor to the suction minimum for the WSP100-AAA?
Cullen Cooper
from California
May 21, 2013
Jose, I am wanting to use this pump (Honda WSP100AA - 150 gpm) as a sump pump for mostly rainwater to pump water from the safe side (inside) of a floodwall to protect a commercial building. The concrete floodwall will be approximately 6' from the outside of the builing leaving a sidewalk access around the building. Would you recommend this pump for this application. Thanks.
Jordan Horne
from Louisiana
March 07, 2013
How-To Articles
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

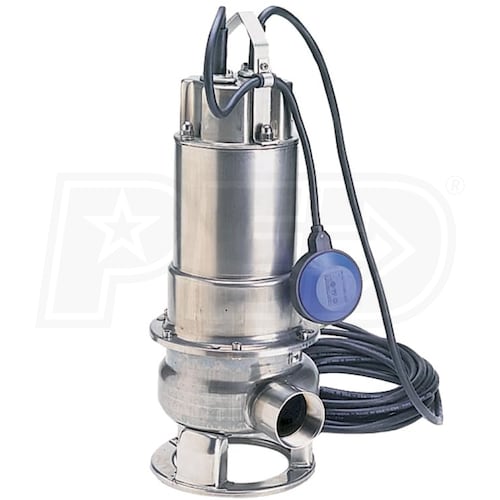

Honda WSP100AA - 150 GPM (2") Submersible Trash Pump w/ Float Switch
