Ingersoll Rand D42IT
Ingersoll Rand D42IT
Hover to zoom
1 of 1

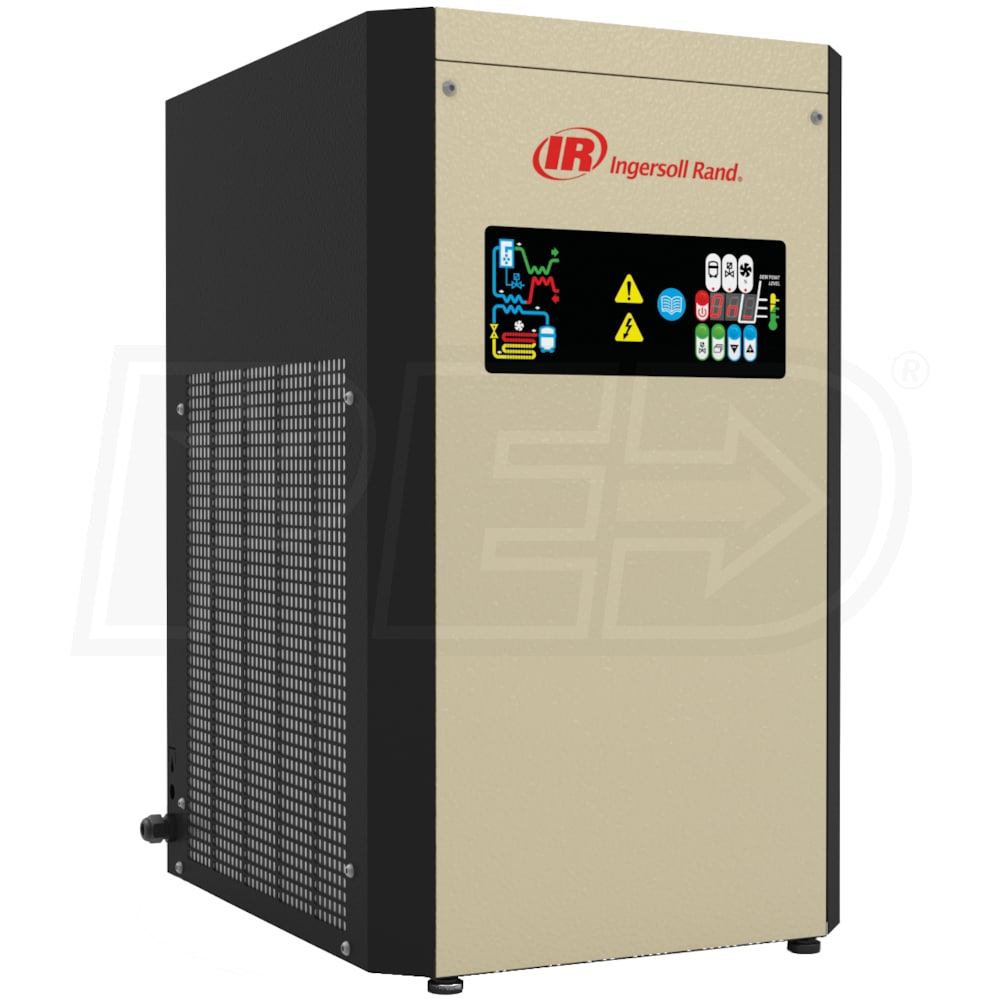

Ingersoll Rand High Temperature Refrigerated Air Dryer 7.5HP (25 CFM)

Model:

D42IT

Write A Review
$2,449.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Ingersoll Rand High Temperature Refrigerated Air Dryer 7.5HP (25 CFM)
Ingersoll Rand High Temperature Refrigerated Air Dryer 7.5HP (25 CFM)
Model: D42IT
$2,449.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Optional Accessories 6
CFM
$1,499.00
Only 2 In-Stock
$3,729.00
Factory-Direct
$1,379.00
Factory-Direct
$9,238.00
Factory-Direct

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

25
  • For Use With Compressors Without Aftercoolers Up To 180°F
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 25 CFM with exceptionally low pressure drop; 7.5 HP motor
  • Built In Aftercoolers & General Purpose Coalescing Filters
  • Integral stainless steel moisture separation; use with compressors that do not have aftercoolers
  • Class H optimized pressure between 35° - 40°F dewpoint
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase power and R134A refrigerant
  • Sturdy, powder coated finish
  • Corrosion resistant aluminum plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 200°F; maximum ambient temp 122°F
  • 1/2" NPT inlet & outlet fittings
  • Includes a prefilter/moisture separator trap to remove oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

D42IT
specs product image PID-2438
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
25
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
203
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
200
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
Yes
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Product Category
Air Compressor Accessories
Weight
86 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
15.5 Inches
Product Height
26 Inches
Power Type
Electric

Reviews

(3)
Ingersoll Rand D42IT Reviews & Ratings
Customer Photos and Videos
review image 1
Verified Buyer
Verified Buyer
Works Great
By Paint by Turbo
Florida
Review Posted 10/11/2022
review 1 image 1
Ended my condensation problem almost instantly. Been using 2 weeks without any moisture in air lines.
Paint by Turbo Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
3/5
icon-review-marker
Pros:
Easy To Use, I'd Buy It Again
Cons:
Expensive
Verified Buyer
Verified Buyer
My Harbor Freight Air Compressor Outlasted This Dryer.....
By Andrew F.
Riverside, Iowa
Purchased 11/18/2015 |
Review Posted 12/23/2020
I purchased this dryer 5 years ago, expecting my then 3 year old harbor freight compressor to die, so I could upgrade to a bigger Ingersoll compressor. Well, I went out to the garage and turned this on, and nothing. No compressor start up. Literally 4 days prior, I had ordered an Emax 7.5hp 3 phase compressor and dryer for my new shop. This one apparently died of a broken heart. I replaced it with a Harbor Freight dryer that was roughly $400 shipped. Not sure if I'll spend the money to get the Ingersoll dryer fixed or not. I could have almost had a new harbor freight dryer per year for what I spent on this one. Nobody builds anything to last anymore......it's disappointing.
Andrew F. Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
2/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
2/5
icon-review-marker
Pros:
Easy To Use
Cons:
Durability, Expensive
Verified Buyer
Verified Buyer
Excellent H2O removal
By Terry M.
Lansing, Michigan
Purchased 10/21/2013 |
Review Posted 11/11/2013
We bought the air dryer after using a desiccant dryer with poor results. We not only wanted to avoid rusting all our air tools but we needed dry air for painting.

We also use an Eastwood dual blaster with bicarbonate media. Without the dryer the bicarb would clump and clog the blaster after just 10-15 minutes of use. The air dryer immediately pulled water from our air lines and discharged it through a discharge line into a bucket. (Zip tie to bucket - discharges under pressure).

We went through 150 pounds of media on a fairly high humidity day (75%) in Michigan with ZERO clumping. This product is easy to hook up (you'll need some whip hoses/adapters and quick disconnects)... but just turn it on... let it warm a few minutes and then put it under an air load (pressurize system)... and it's automatic.

As you use the air it pulls out the water... simple... simple... simple.
Terry M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Quiet, High Quality
Cons:
Bad Instructions
