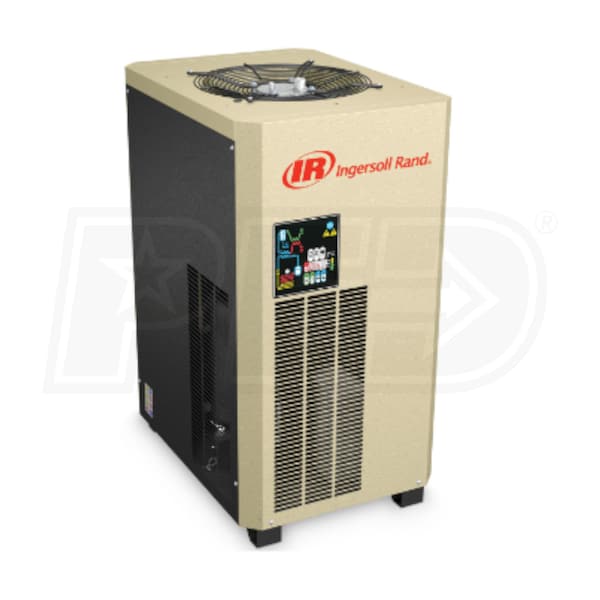

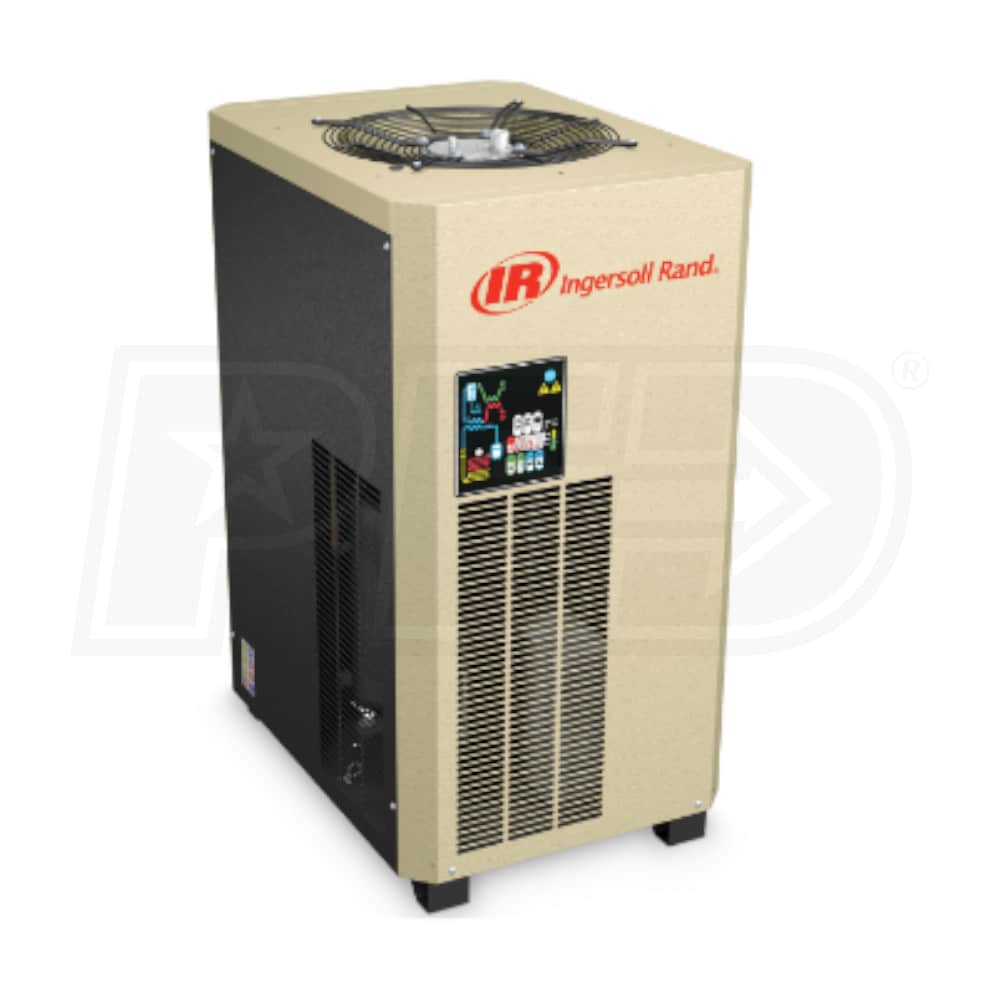

Ingersoll Rand Non-Cycling Refrigerated Air Dryer (100 CFM)

Model:

DA170IN

Write A Review
$3,799.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability December 06, 2024
Shipping to60601

Ingersoll Rand Non-Cycling Refrigerated Air Dryer (100 CFM)
Ingersoll Rand Non-Cycling Refrigerated Air Dryer (100 CFM)
Model: DA170IN
$3,799.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

100
  • For Use With Compressors With Aftercoolers
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO 7183 Dryer Is Reliable And Operationally Efficient
  • 100 CFM with exceptionally low pressure drop
  • Integral stainless steel moisture separation
  • Continuous Pressure Class H Dew Point Performance
  • Optimized pressure 50°F dew point
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase, 11.8 amp power and R134A refrigerant
  • Sturdy, powder coated finish
  • Aluminum braze plate heat exchanger
  • Professional Features
  • Maximum pressure of 200 PSI
  • Maximum inlet temperature of 120°F; maximum ambient temp 113°F
  • 3/4" NPT inlet & outlet fittings
  • Installation of an upstream 1.0 micron prefilter is recommended
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DA170IN
specs product image PID-112236
Motor
Voltage
115 Volt AC
Phase
1-Phase
Amp Draw
11.8
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
100
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
200
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
113
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Alarm Lights
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
99 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.5 Inches
Product Width
16.5 Inches
Product Height
22.5 Inches
Power Type
Electric
UPC
678384050012
