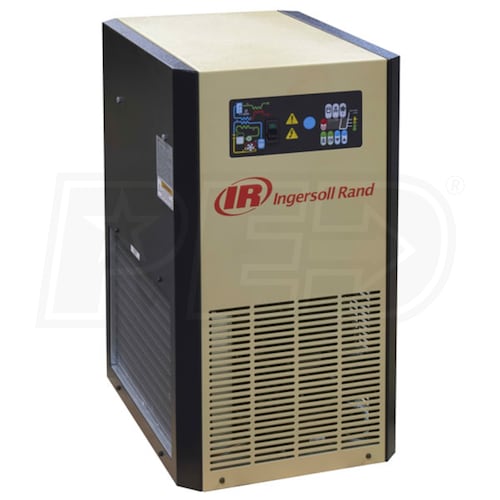

Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Air Dryer (18 CFM)
Model:
DA31EC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
18
Rated HP
5
- Multi-Layer Heat Exchanger
- Provides high heat transfer efficiency
- Reduces compressor run time & energy costs
- Thermal Mass Cold Energy Storage
- Reduces dryer compressor run time
- Compact Size
- Premium components provide years of dependable operation
- Digital Controller
- Microprocessor automatically deactivates during low load times
- Single point connections for plug-and-play installation
- Efficient Refrigeration Condenser
- Dry, high quality compressed air with maximum energy savings
- R134a Refrigerant
- Zero ozone depletion potential minimizes environmental impact
- Drain Isolation Valve With Timed Solenoid Drain
- Automatic maintenance for ease of operation
- Perfect Match For Ingersoll Rand High Efficiency Compressors
- Effectively treats air when demand fluctuates on a regular basis
- Uses only .43 operating KW per hour at full capacity
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DA31EC
General Information
Product Category
Air Compressor Accessories
Filter
High Efficiency
Yes
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
18
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
100
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
No
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Rated HP
Rated HP
Possible corresponding compressor HP
5
Dry Amp Draw
5.77
Overview
Product Category
Air Compressor Accessories
Weight
85 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.69 Inches
Product Width
15.59 Inches
Product Height
26.05 Inches
Power Type
Electric
