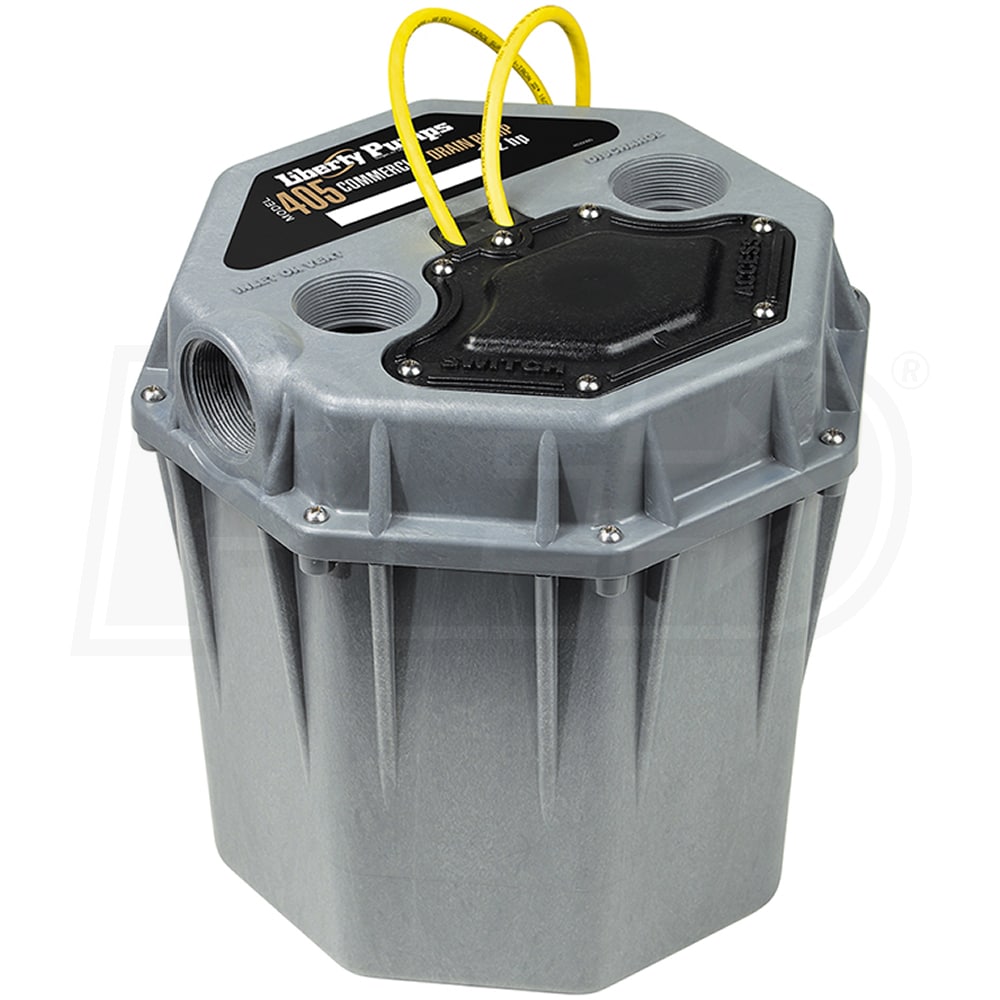

Liberty Pumps 405HV - 1/2 HP High-Temperature Commercial Sink/Drain Pump System (230V - 2")
Model:
405HV
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
GPH
3180 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Automatic Commercial High-Temperature Remote Drain Pump System
- Factory pre-assembled for easy installation - Requires 230V Power
- High-Temperature Aluminum Sump Pump
- Designed for high temperature applications (180° F. Max)
- Rugged & Thermally Protected 1/2 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant Polyolefin Basin (14.125" H x 13.75" W)
- Great for bar sinks, dishwashers and commercial sinks
- QuickTree® Technology & Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections & Rubber Gaskets
- Provides a superior, gas-tight seal
- 2" Inlet, Discharge and Vent
- Requires 2" Check Valve (Sold Separately)
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
405HV
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
240 Volt Single-Phase
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 10 feet
2600
GPH @ 15 feet
2220
GPH @ 20 feet
1920
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
23 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
14.125 Inches
UPC
671812113884
