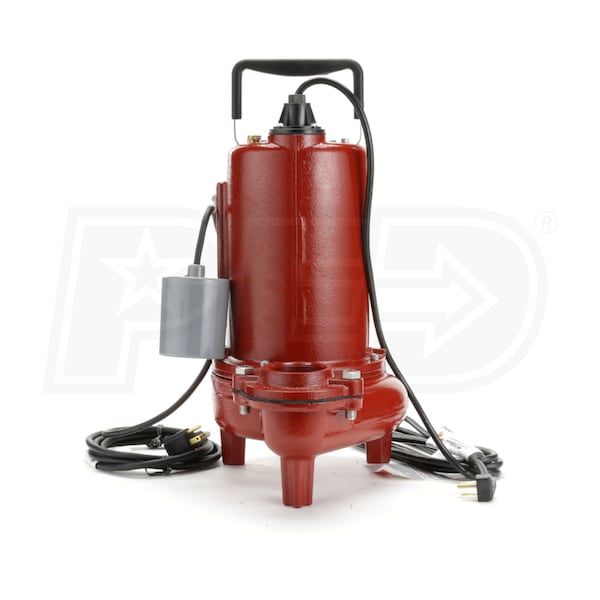

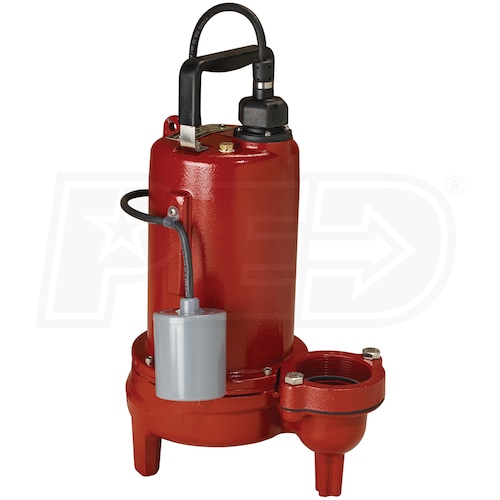

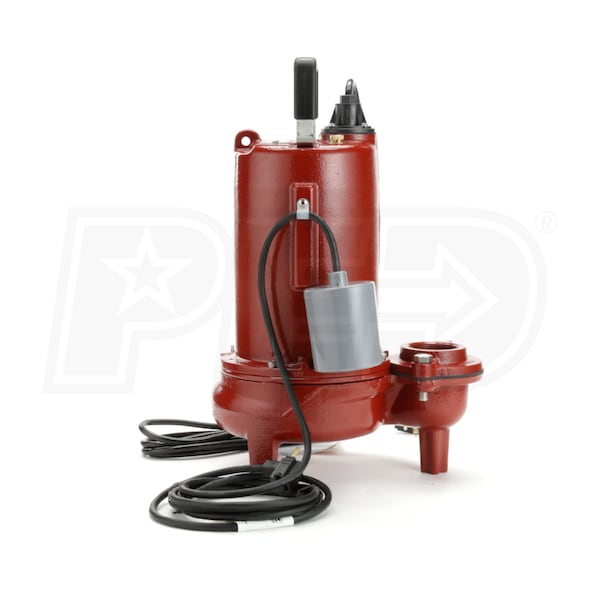

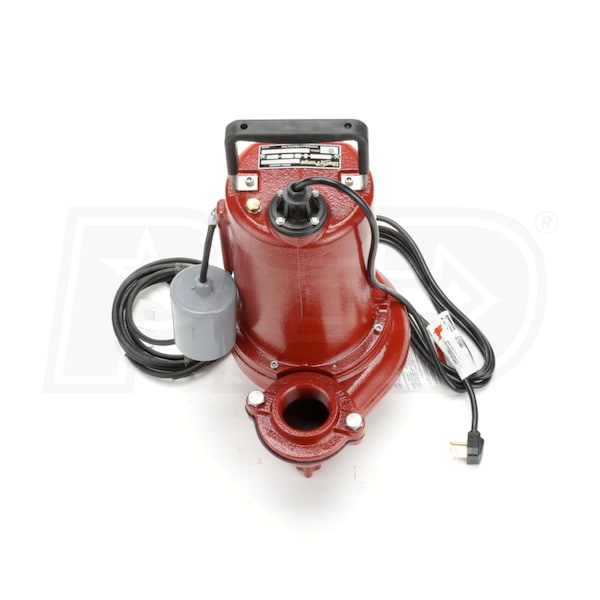

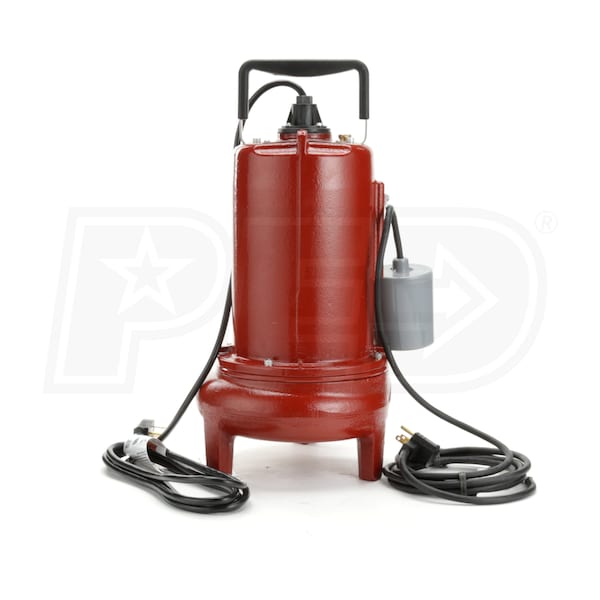

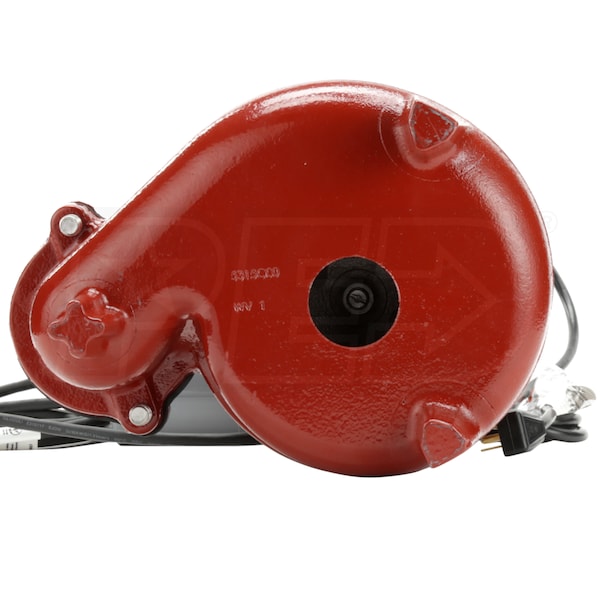

Liberty Pumps LE71A3 - 3/4 HP Cast Iron Sewage Pump (3") w/ Piggyback Tether Float

Model:

LE71A3

Write A Review
$786.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Liberty Pumps LE71A3 - 3/4 HP Cast Iron Sewage Pump (3
Liberty Pumps LE71A3 - 3/4 HP Cast Iron Sewage Pump (3") w/ Piggyback Tether Float
Model: LE71A3
$786.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

9480 Gallons

Switch Type

Piggy-Back Tether



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 2-Vane Semi-Open Cast Iron Impeller
  • Heavy-duty design, passes spherical solids up to 2"
  • High Capacity 3" Discharge
  • Easily connect to your existing 3-inch discharge line
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

LE71A3
specs product image PID-8643
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
28
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

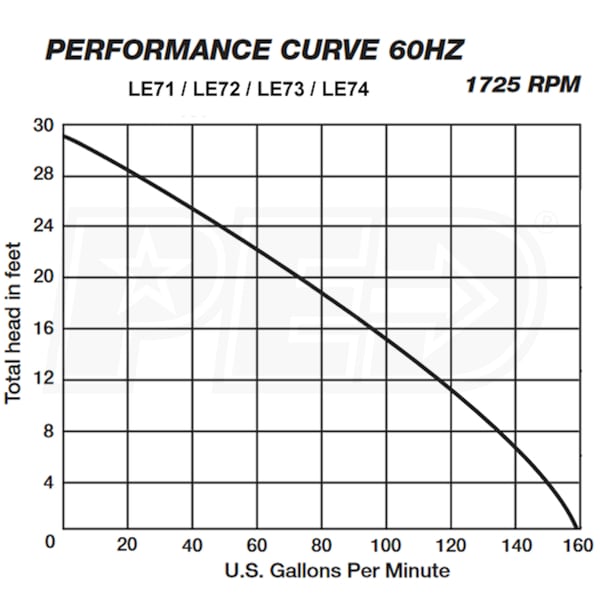

GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
3 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
61 Pounds
Consumer Warranty
3 Years
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
UPC
671812101751
