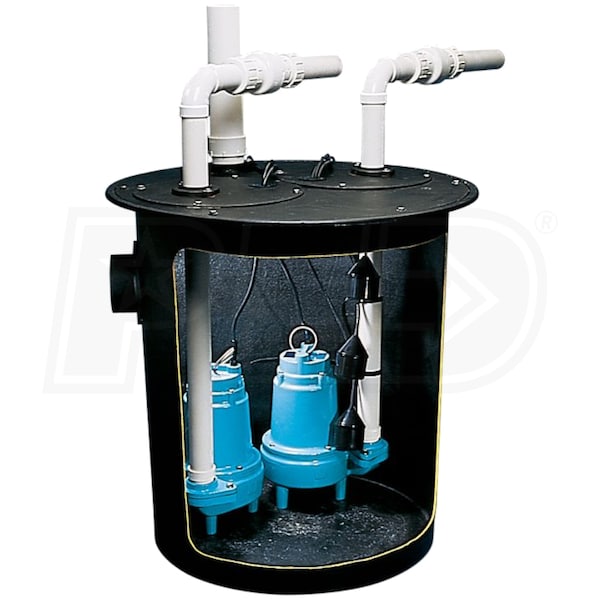

Little Giant 9S-DPLX - 4/10 HP Cast Iron Pre-Packaged Duplex Sewage Pump (9SC-CIM) System w/ PB Tether Floats (18" x 30" - Structural Foam Basin)

Model:

14940697

Write A Review
$2,561.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Little Giant 9S-DPLX - 4/10 HP Cast Iron Pre-Packaged Duplex Sewage Pump (9SC-CIM) System w/ PB Tether Floats (18
Little Giant 9S-DPLX - 4/10 HP Cast Iron Pre-Packaged Duplex Sewage Pump (9SC-CIM) System w/ PB Tether Floats (18" x 30" - Structural Foam Basin)
Model: 14940697
$2,561.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

6600 Gallons

Switch Type

Piggy-Back Tether

  • Little Giant 9S-DPLX - 4/10 HP Pre-Packaged Duplex Sewage Pump System
  • Continuous duty rated automatic submersible sewage pumps - 6200 GPH
  • Designed for the tough demanding tasks for wastewater removal
  • Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
  • Minimizes rust & corrosion to extend overall pump life
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (8-Amps full load)
  • Control Panel w/ Tethered Float Switches
  • Pumps work in alternate pumping process for increased protection
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
  • Non-clogging design passes up to 2" spherical solids
  • 20' Max Shutoff Head
  • Additional Features
  • Nitrile mechanical shaft seal w/ carbon & ceramic faces
  • Upper sintered sleeve bearings & lower ball bearings
  • 20' SJTW Power Cord
  • System Includes:
  • 24" x 36" Structural foam basin w/ cast iron inlet hub
  • Steel cover with 2" vent and 2" discharge
  • (2) 9SC-CIM Sewage pump (509413) 115V 4/10HP
  • Control panel w/ (3) Tethered float switches
  • 2" Check valves
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

14940697
specs product image PID-153044
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4800
GPH @ 15 feet
3600
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
20 Feet
Engine
Horsepower
.4 HP
Overview
Weight
66 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
24 Inches
Product Width
24 Inches
Product Height
36 Inches
UPC
010121113497
