Little Giant 15EC-CIA-SFS - 3/4 HP Cast Iron Effluent Pump w/ Vertical Float
Model:
14942784
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
5130 Gallons
Switch Type
Vertical
- Little Giant 15EC-CIA-SFS - 3/4 HP Cast Iron Auto Effluent Pump (115V)
- Continuous duty rated for commercial applications
- For dewatering, water transfer, and septic wastewater removal
- Epoxy Coated Cast Iron Pump Housing w/ 1-1/2" Discharge
- Minimizes rust & corrosion to extend overall pump life
- 3/4 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (8.1-Amps full load)
- Cooler running motor which extends the life of the pump
- Epoxy Coated Cast Iron Volute w/ Non-Clog Polymer Impeller
- Unique cloverleaf intake design allows higher flow
- Non-clogging design passes up to 3/4" spherical solids
- Integral Snap Action Vertical Float Switch
- Provides reliable automatic operation
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection is harsh wastewater conditions
- Upper & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Motor Shaft, Screws, Bolts & Handle
- Designed to prevent rust and corrosion
- 10-Foot Power Cord
- 28' Max Shutoff Head
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
14942784
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.5 inch
Handles Solids
Yes
Maximum PSI
15.6
Float Type
Vertical Float

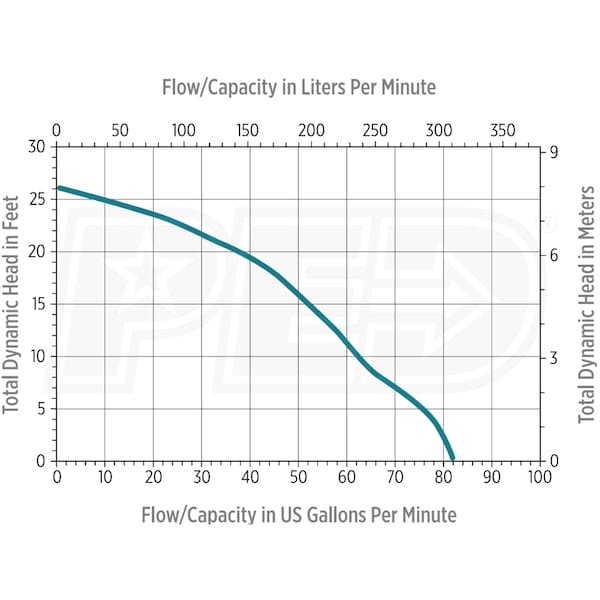

GPH @ 0 feet
5130
GPH @ 5 feet
4800
GPH @ 10 feet
4002
GPH @ 15 feet
3402
GPH @ 20 feet
2700
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7-10
Float Off
3-5
Manual Override
No
Max Head
28 Feet
Submersible
Yes
Engine
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
34.1 Pounds
Consumer Warranty
3 Years
Product Length
10.72 Inches
Product Width
8.3 Inches
Product Height
11.35 Inches
UPC
0010121016415
